Cygnus 4+ General Purpose Thickness Meter

Available for rental, hire and purchase from Ashtead Technology - the Cygnus 4+ General Purpose Thickness Meter.

Add to basket Enquire now Datasheet Download

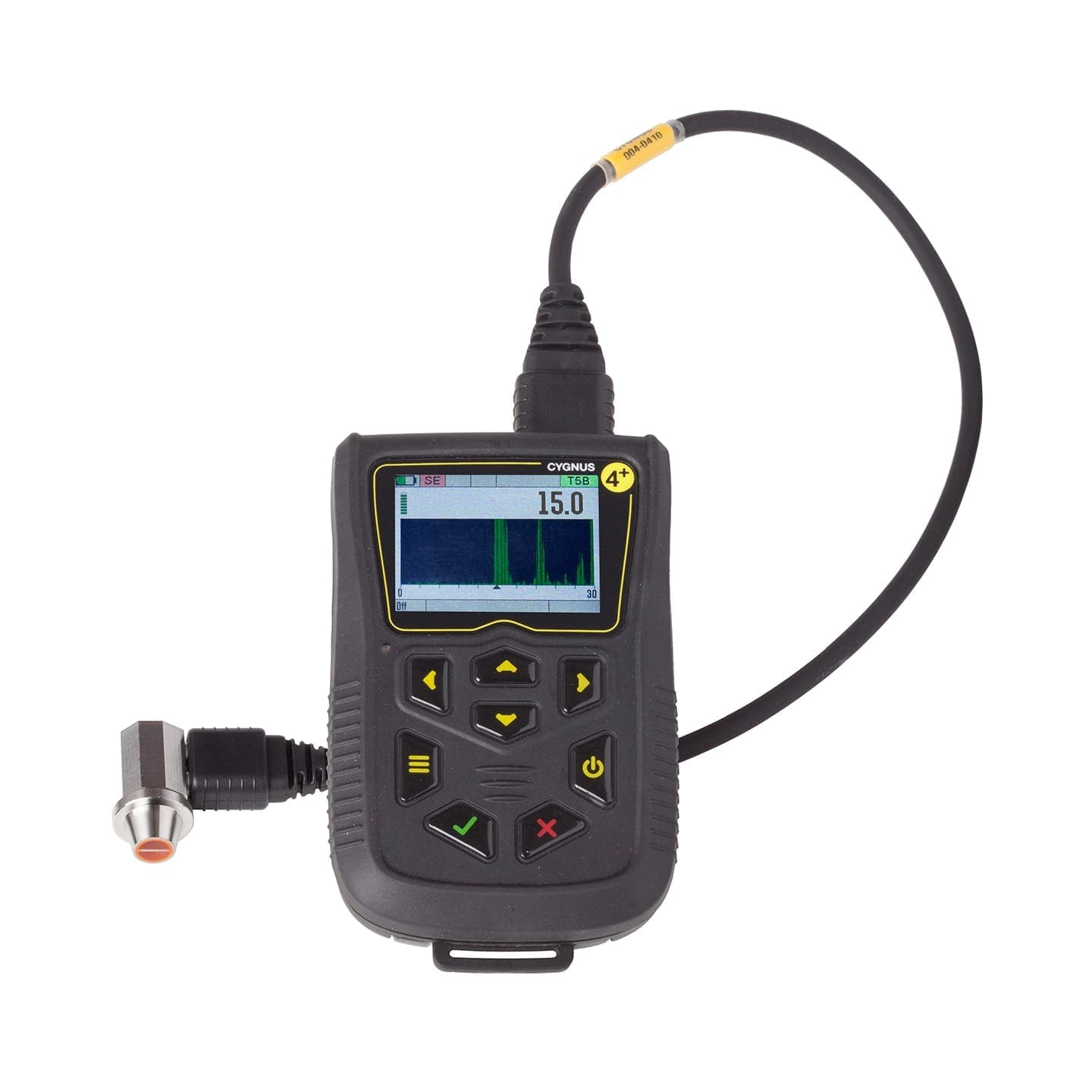

The Cygnus 4PLUS is a small and tough multi-mode ultrasonic thickness gauge which features an A-scan display, simple to use sequential data logging and manual and automatic gain control.

Designed for the harshest of environments, with a simple to use keypad, intuitive menus and a colour LCD display which can be viewed in all lighting conditions.

The twin shot injection moulded enclosure has a soft but durable TPE outer skin which is comfortable to hold and protects against bumps while the hard internal shell offers maximum strength and environmental protection certified to the demanding US MIL STD 810G standard.

The unit still relies on Multiple-Echo to provide simple and accurate measurements, with the added benefit of Echo-Echo and Single-Echo using twin crystal probes for extreme corrosion. Echo-Echo for measurements on painted metals but with heavy back wall corrosion / pitting and Single-Echo for measurements on uncoated surfaces with heavy front face and/or back-wall corrosion and attenuative materials such as cast metals or plastics / composites.

  • Multiple-Echo for reliable, accurate through coating measurements
  • Single-Echo and Echo-Echo measuring modes with twin crystal probes for extreme corrosion and back wall pitting
  • A-scan display
  • Manual and automatic gain control
  • MSI™ (Measurement Stability Indicator) used in Single-Echo and Echo-Echo measurement modes
  • Simple linear data logging
  • Large bright colour LCD screen with back light
  • Deep-coat mode, measure through coatings up to 20 mm thick
  • Wrist mountable
  • Min/max measurement limit functions with visual and vibrate alert
  • Intuitive easy to use menu
  • Extremely rugged enclosure – shock and impact to US MIL STD 810G
  • Environmental sealing to IP67 – US MIL STD 810G
  • Cygnus echo strength bars to assist quick measurements
  • Buttons integral with the TPE moulding and designed for minimum 100,000 depressions
