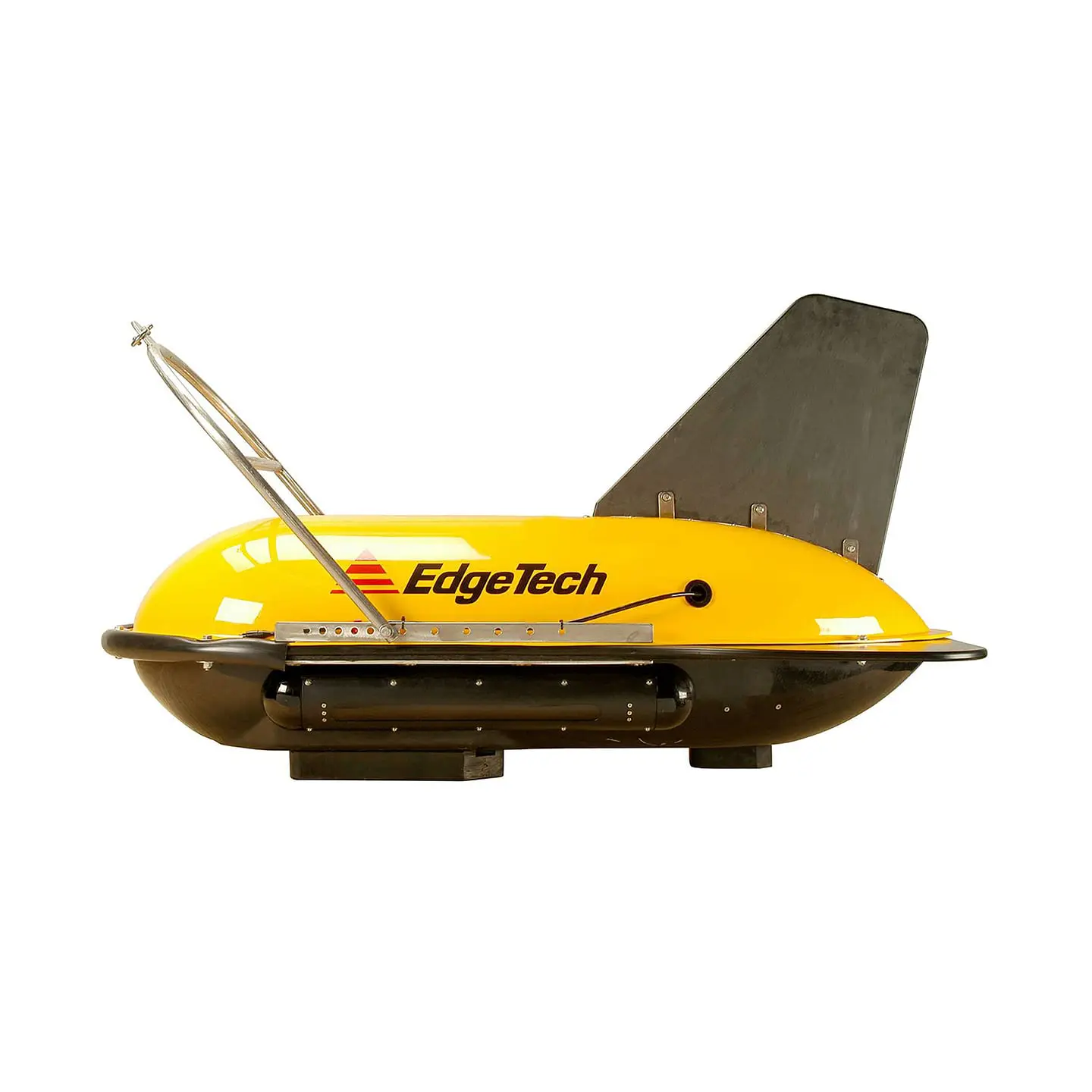

Edgetech 2000 Series Combined Side Scan Sonar & Sub-bottom Profiler

Available for rental/hire from Ashtead Technology - the Edgetech 2000 Series Combined Side Scan Sonar & Sub-bottom Profiler.

Add to basket Enquire now Datasheet Download

The 2000 Series combines EdgeTech’s highly successful line of side scan sonars and sub-bottom profilers into one fully integrated system.

The combined side scan sonar and sub-bottom profiling system comes in a choice of three different towfish: 2000-CSS, 2000-DSS and 2000-TVD. The CSS comes with a low frequency 500 Hz – 12 kHz sub-bottom profiler and is designed for applications that require sub-bottom penetration in water depths of up to 300m. The DSS comes with a higher frequency 2 – 16 kHz sub-bottom profiler and is designed for applications that require high resolution sub-bottom imagery in depths of up to 2,000m. The 2000-TVD comes with a low frequency 1 – 10 kHz sub-bottom profiler and is depth rated to 3000 meters. All towfish come with the choice of either a 100/400 kHz or 300/600 kHz dual simultaneous frequency CHIRP side scan sonar which will provide an excellent combination of range and resolution.

  • Fully integrated turnkey system
  • Digital telemetry over single coaxial tow cable up to 10,000m
  • Choice of side scan and sub-bottom frequencies
  • Built-in heading, pitch and roll sensors
  • Archeological surveys
  • Cable and pipeline surveys
  • Geological/geophysical surveys
  • Marine construction surveys
  • Pre/post dredging surveys
  • Scour/erosions surveys for rivers and streams
  • Sediment classification
