Edgetech 3200 Series Hi Penetration Sub Bottom Profiling System

Available for rental/hire from Ashtead Technology - the Edgetech 3200 Series Hi Penetration Sub Bottom Profiling System.

Add to basket Enquire now Datasheet Download

The EdgeTech 3200 Sub-bottom Profiling System is a wideband Frequency Modulated (FM) sub-bottom profiler utilizing EdgeTech’s proprietary Full Spectrum CHIRP technology. The 3200 generates high-resolution images of the sub-bottom stratigraphy in oceans, lakes, and rivers and provides penetration of up to 200m.

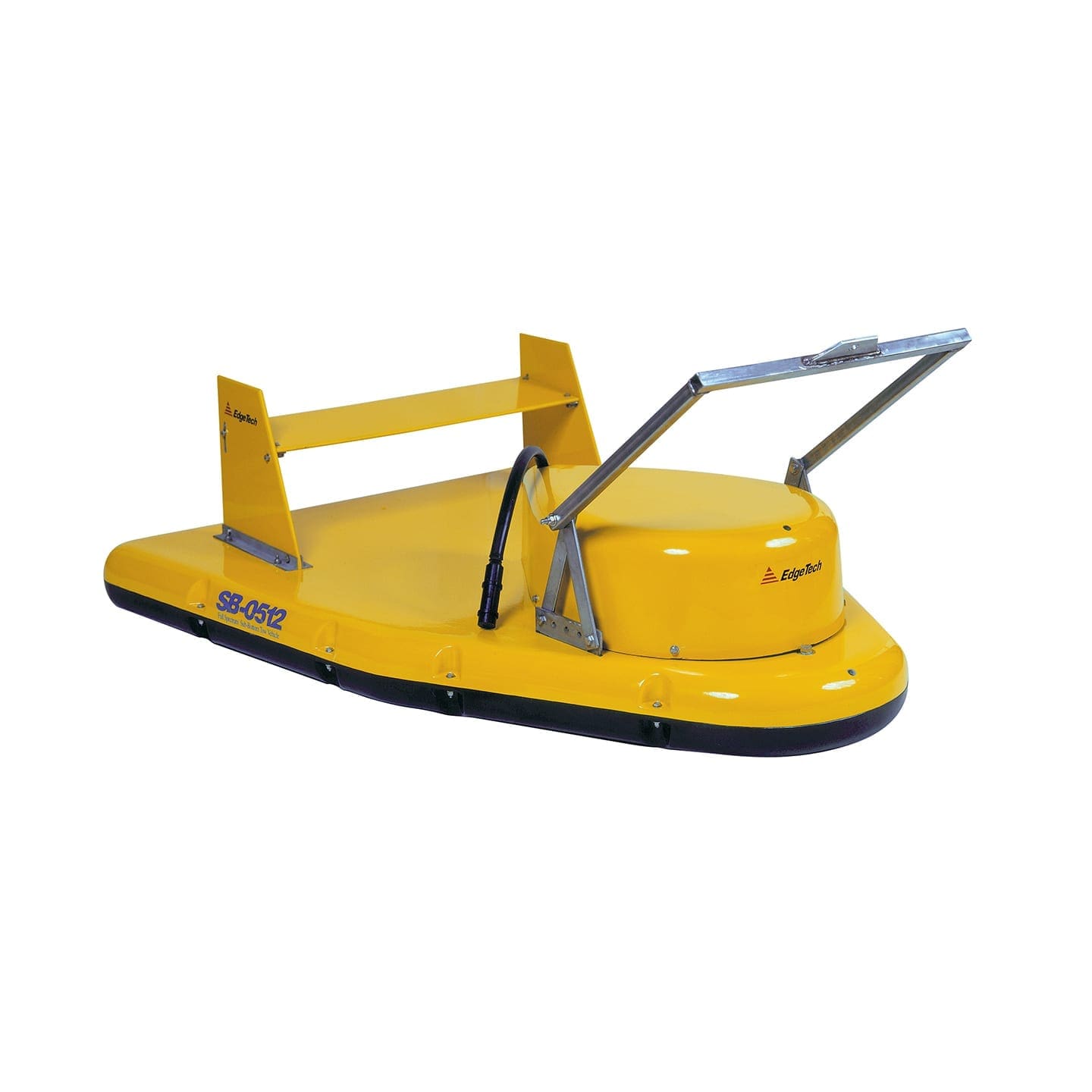

The 3200 comes available with a choice of three stable, low drag towfish that operate at different frequencies and can be used at depths of up to 300m. The selection of towfish depends on the sub bottom characteristics as well as the resolution and penetration requirements.

Along with a towfish, a standard 3200 systems comes with a topside processor running EdgeTech’s DISCOVER sub-bottom acquisition & processing software as well as a customer-specified length of tow cable. Additional optional sensors are also available.

  • Choice of 3 towfish depending on the application
  • Low frequency for greater penetration
  • Pole mount option for shallow water surveys
  • Bridge/shoreline scour surveys
  • Buried object location
  • EEZ resource development
  • Geohazard surveys
  • Geological/geophysical surveys
  • Mining/dredging surveys
  • Sediment classification
