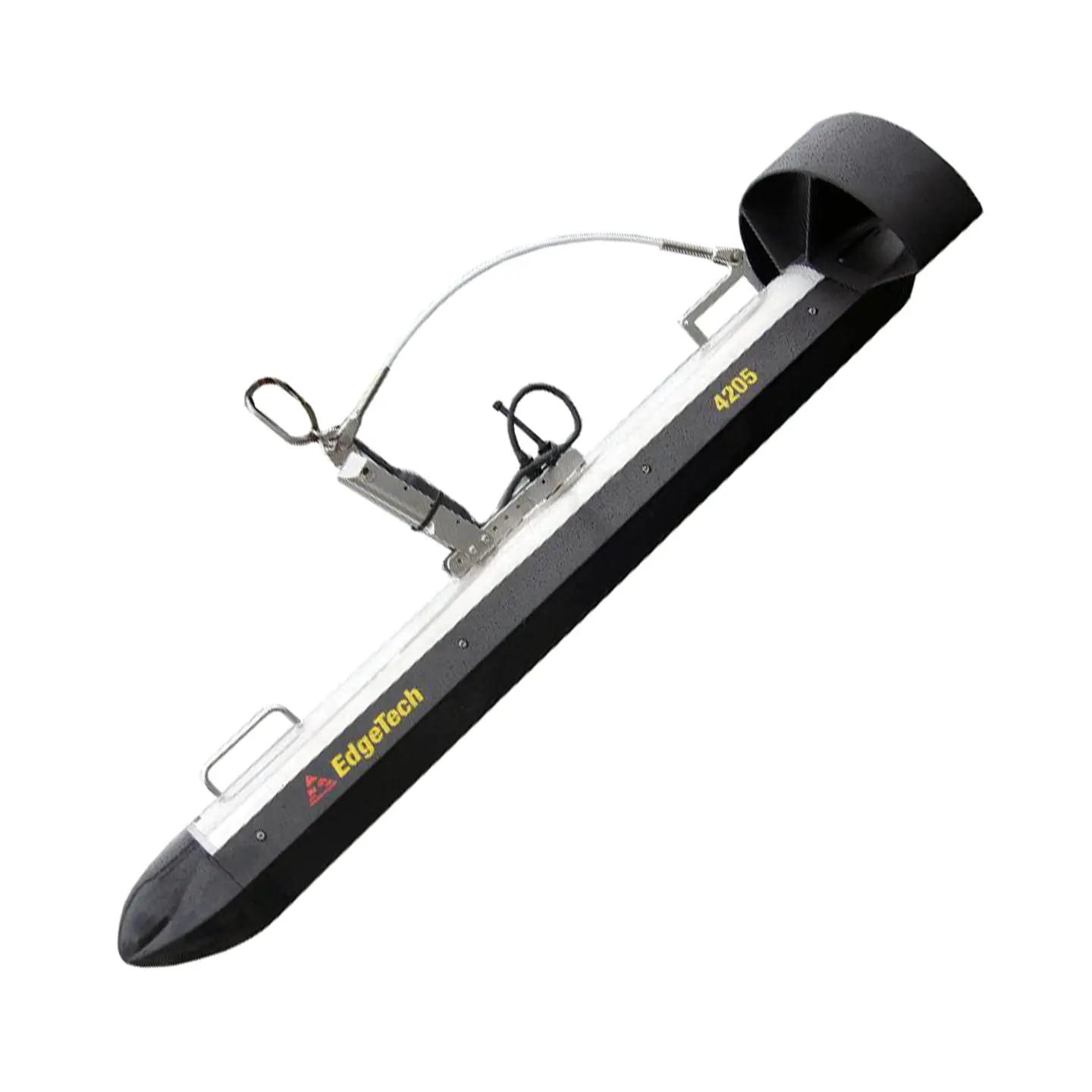

Edgetech 4205 Tri-frequency Motion Tolerant Sidecan Sonar

Available for rental/hire from Ashtead Technology - the Edgetech 4205 Tri-frequency Motion Tolerant Sidecan Sonar.

Add to basket Enquire now Datasheet Download

he next generation 4205 is a versatile side scan sonar system that can be configured for almost any survey application from shallow to deep water operations. The 4205 utilizes EdgeTech’s Full Spectrum® CHIRP technology to provide crisp, high resolution imagery at ranges up to 50% greater than non-CHIRP systems; thus allowing customers to cover larger areas and save money spent on costly surveys. In addition to the high-resolution imagery that EdgeTech is known for, the 4205 comes with a number of new features which makes the system even more flexible and powerful in offshore operations. The 4205 is available
in either a tri-frequency side scan sonar configuration or motion tolerant and multi-pulse configuration. The tri-frequency version allows surveyors the option to operate any two frequencies simultaneously from the tri-frequency system. Long range operations for example can be achieved with a selection of 230/540kHz combination. Then, on-demand the system can be changed to a 540/850kHz system for an even higher resolution survey. The 4205 motion tolerant configuration with multi-pulse provides surveyors the ability to operate either at faster survey speeds or in more adverse weather conditions while still obtaining high quality underwater imagery. Additionally, this configuration can be operated in a single pulse high-resolution mode for those operations that require an even more finite view of the seafloor.

In both the tri-frequency and motion tolerant/ multi-pulse configurations, towfish and target positioning has been improved with the integration of a more accurate heading sensor
that can be coupled with an optional USBL beacon. Additionally, all systems now come with Increased towfish power to support a wider range of additional 3rd party sensors. All EdgeTech 4205 systems are comprised of a topside system and a reliable stainless steel towfish. Topside processors come in a choice of configurations from portable to rack mounted units. In addition, an easy-to-use GUI software is supplied with every unit.

  • Tri frequency side scan sonar
  • Motion tolerant mode
  • Improved target positioning
  • Crisp, high resolution CHIRP images
  • Increased towfish power to support a wider range of additional 3rd party sensors
  • Single pulse high resolution mode
  • Cable & pipeline surveys
  • Geological/ geophysical surveys
  • Mine countermeasures (MCM)
  • Geohazard surveys
  • Channel clearance
  • Search and recovery
  • Archeological surveys
