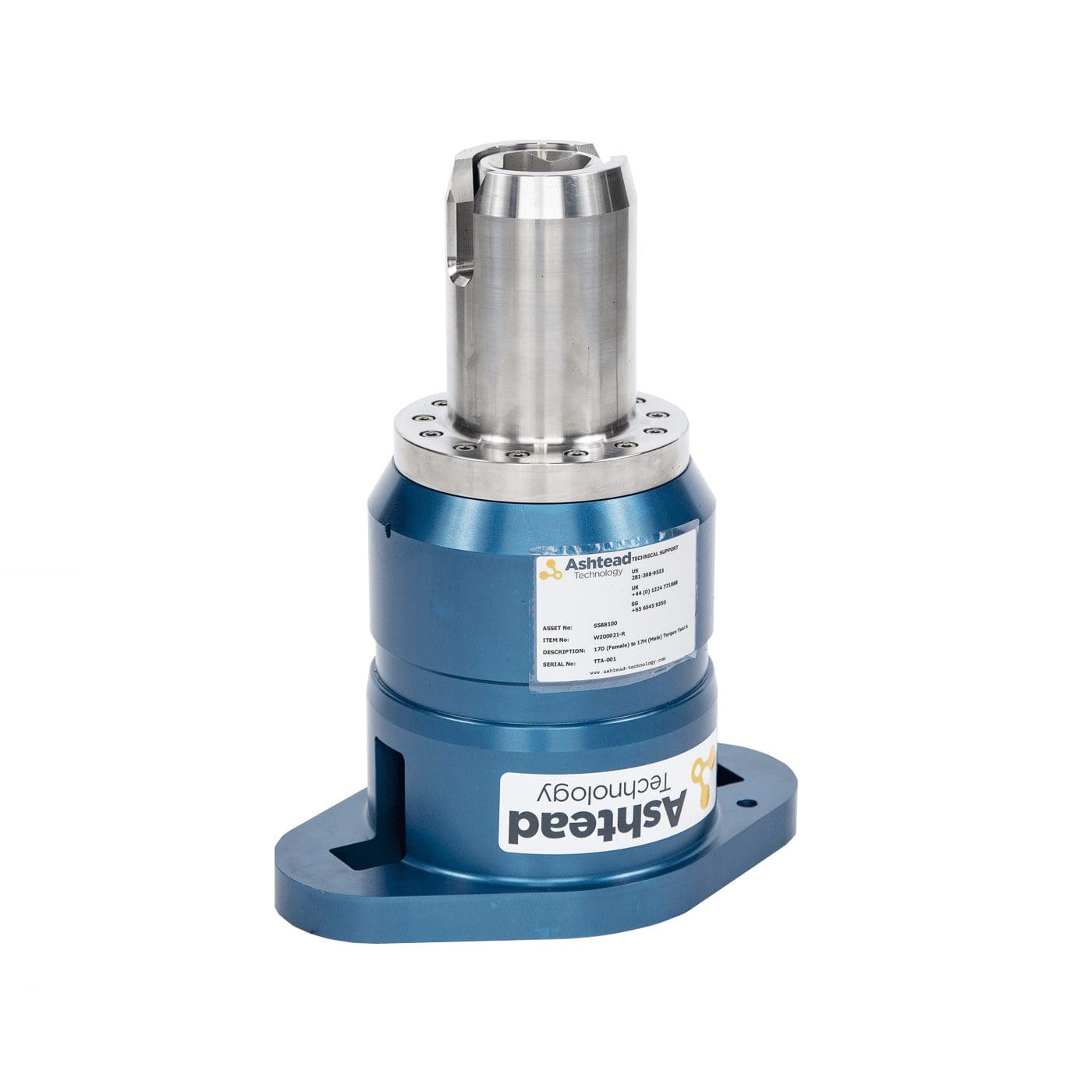

Forum 17D to 17H Adapter

The adaptor is used to convert from ISO 13628-8 class 4 (API 17D) to API 17H high torque interface. Shear pins are supplied with the tool to protect the high torque interface from over torque.

• ISO 13628-8 class 4 female bucket
• API 17H male interface 35mm AF square
• Max torque 2700Nm / 2000ft lbs

• 17H valve operations
