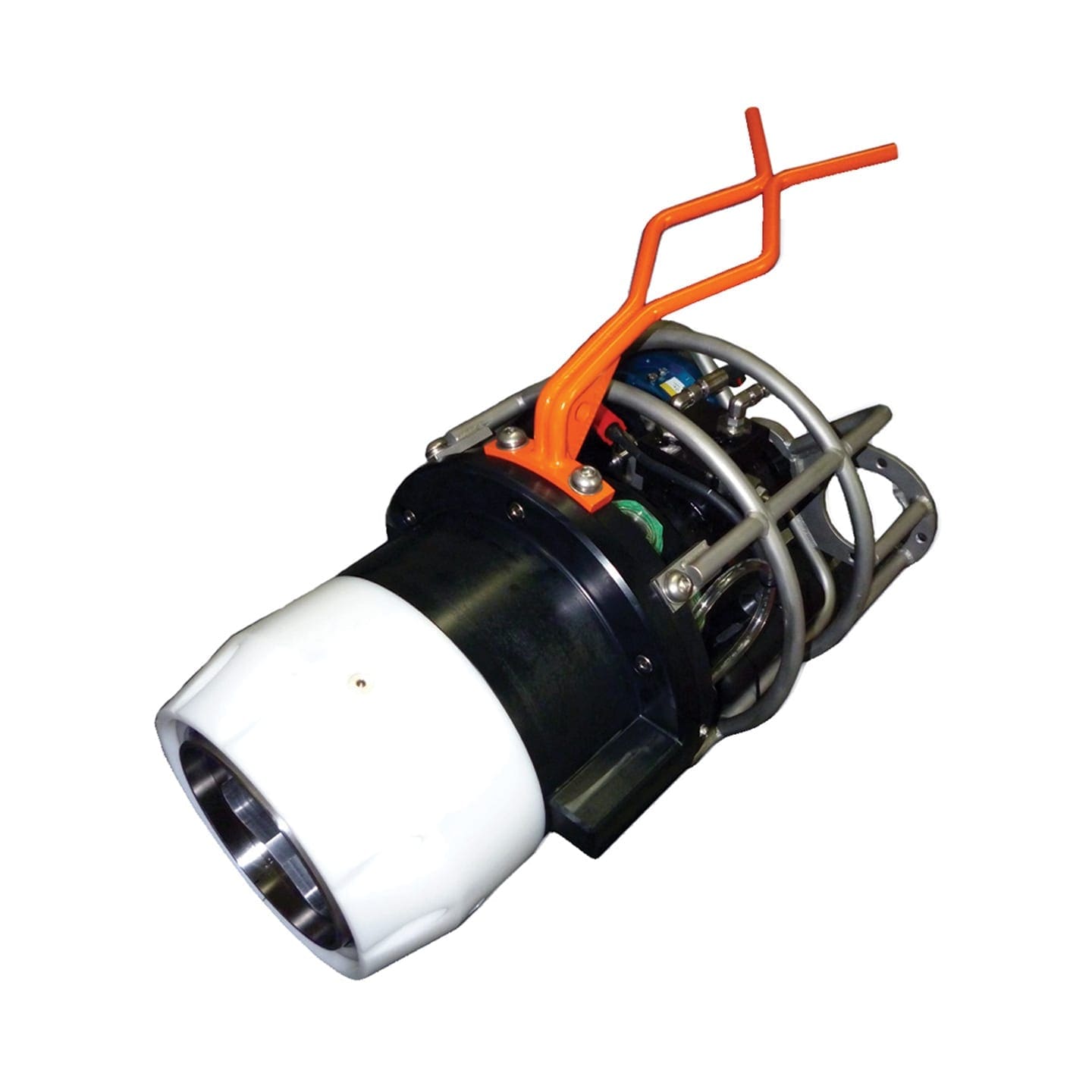

Forum 17kNm Torque Tool Class 6-7 (API 17D)

Available for rental/hire from Ashtead Technology - the Forum 17kNm Torque Tool Class 6-7 (API 17D).

Add to basket Enquire now Datasheet Download

This torque tool has been specifically developed to address the increasing requirement for a 17kNm tool. The interface is based on the ISO 13628-8 fig 18 class 7, with the exception of the length of the nose of the tool, this is based on the industry standard. The tool is supplied with a class 6 socket.

The tool can be supplied with a hot stab receptacle, electronic turns counter and integrated compensator unit, to allow the tool to be deployed to the subssea work site in a basket, separate from the ROV and then connections made with a hot stab.

A socket inset is used to allow class 6 size socket or class 7 size socket valves to be operated.

  • ISO 13628-8 fig 18 (API 17D) class 6/7
  • Max torque 17,000Nm / 12,600ft lbs
  • Dual sensor electronic turns counter
  • Class 6 valve operations
  • Class 7 valve operations
