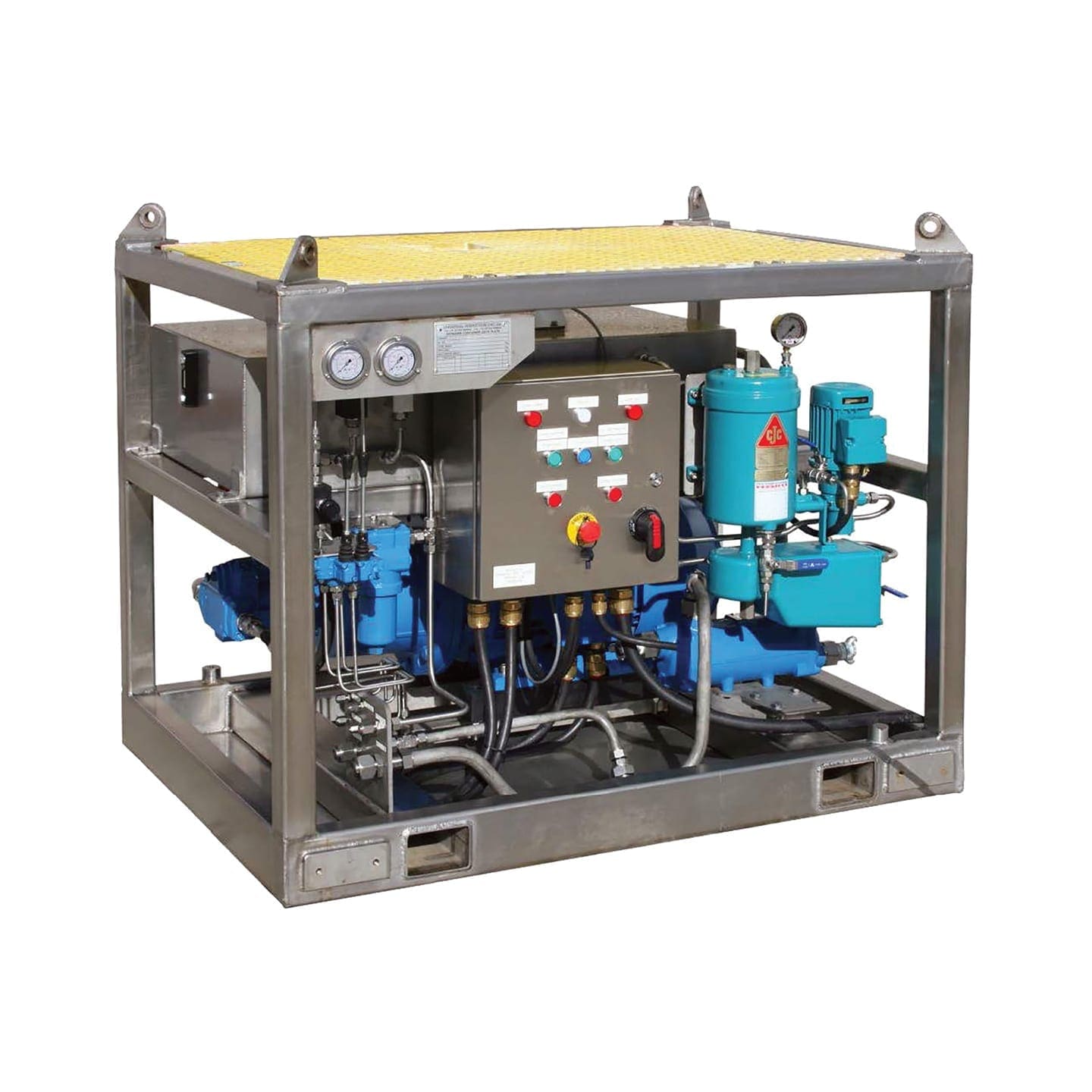

Forum 22kw Hydraulic Power Unit (HPU)

Available for rental/hire from Ashtead Technology - the Forum 22kw Hydraulic Power Unit (HPU).

Add to basket Enquire now Datasheet Download

The 22kw Hydraulic Power Unit (HPU), a complete power generation system designed to convert electrical input into a useable hydraulic power source for local supply to hydraulically operated tools and machinery. Primarily designed for the offshore industry to run an ROV system in power mode whilst additionally capable of function testing a complete ROV package with any associated tooling requirements attached, the system can also be used for many other hydraulic power applications both onshore and offshore.

The hydraulic circuit is split in to 2 separate systems. The main system allows output of a single pressure and flow to a maximum of 250bar and 55lpm. The directional control valve system, allows adjustable pressure via a pressure reducing valve providing an additional electable output range from 0-250bar at the same time.

The on-board CJC unit is designed to provide fine filtration and water separation capable of cleaning hydraulic oils to 3 microns absolute, ensuring trouble free operation of ROV hydraulic systems where water ingress is a constant problem.

  • Mounted in stainless steel frame
  • 200 litre / 52.8gal tank capacity
  • 440VAC electrical supply
  • Selectable output range
  • CJC water separation filter
  • Hydraulic soft start
  • Relief valve
  • Pressure gauges
  • Oil cooler
  • Deck testing ROV tools
