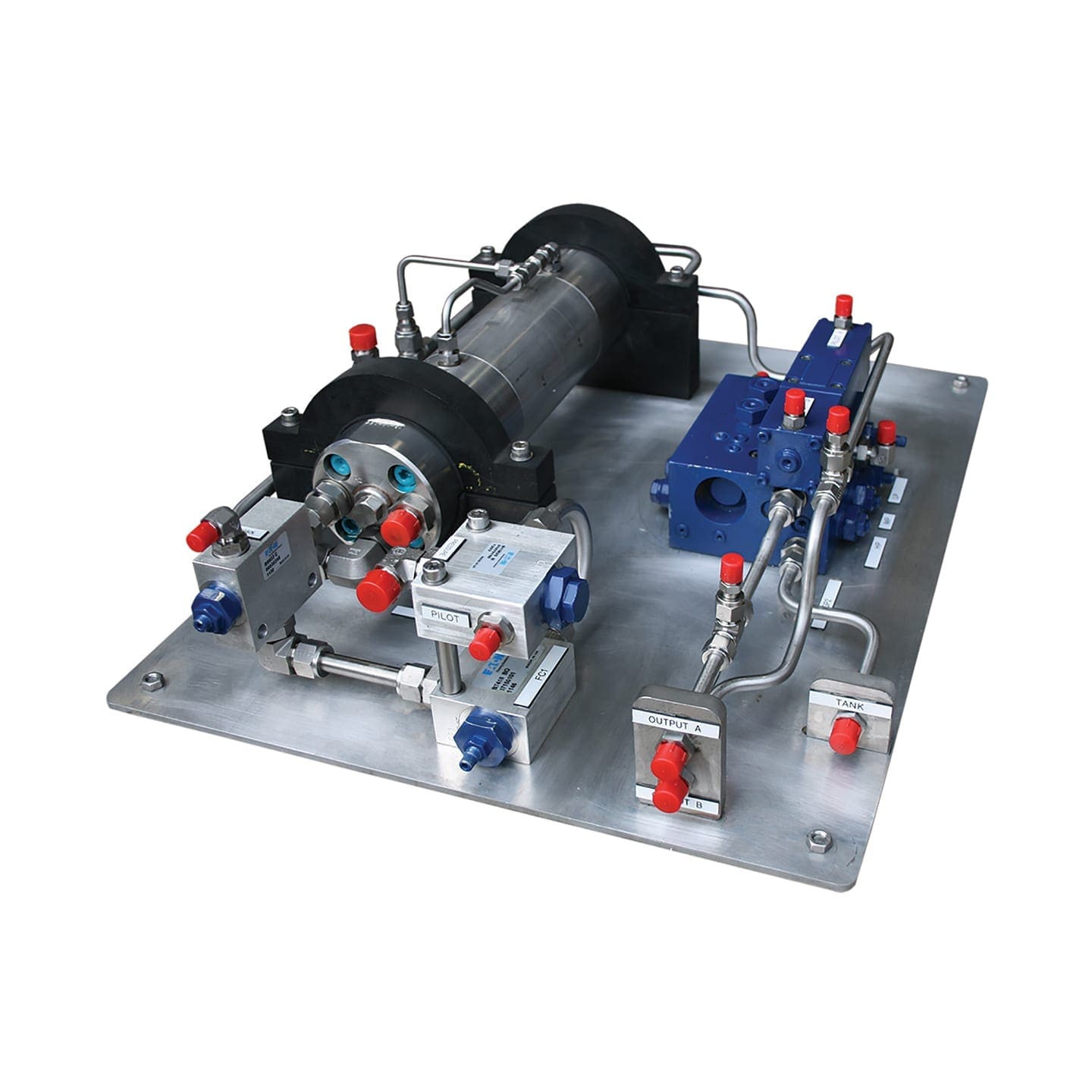

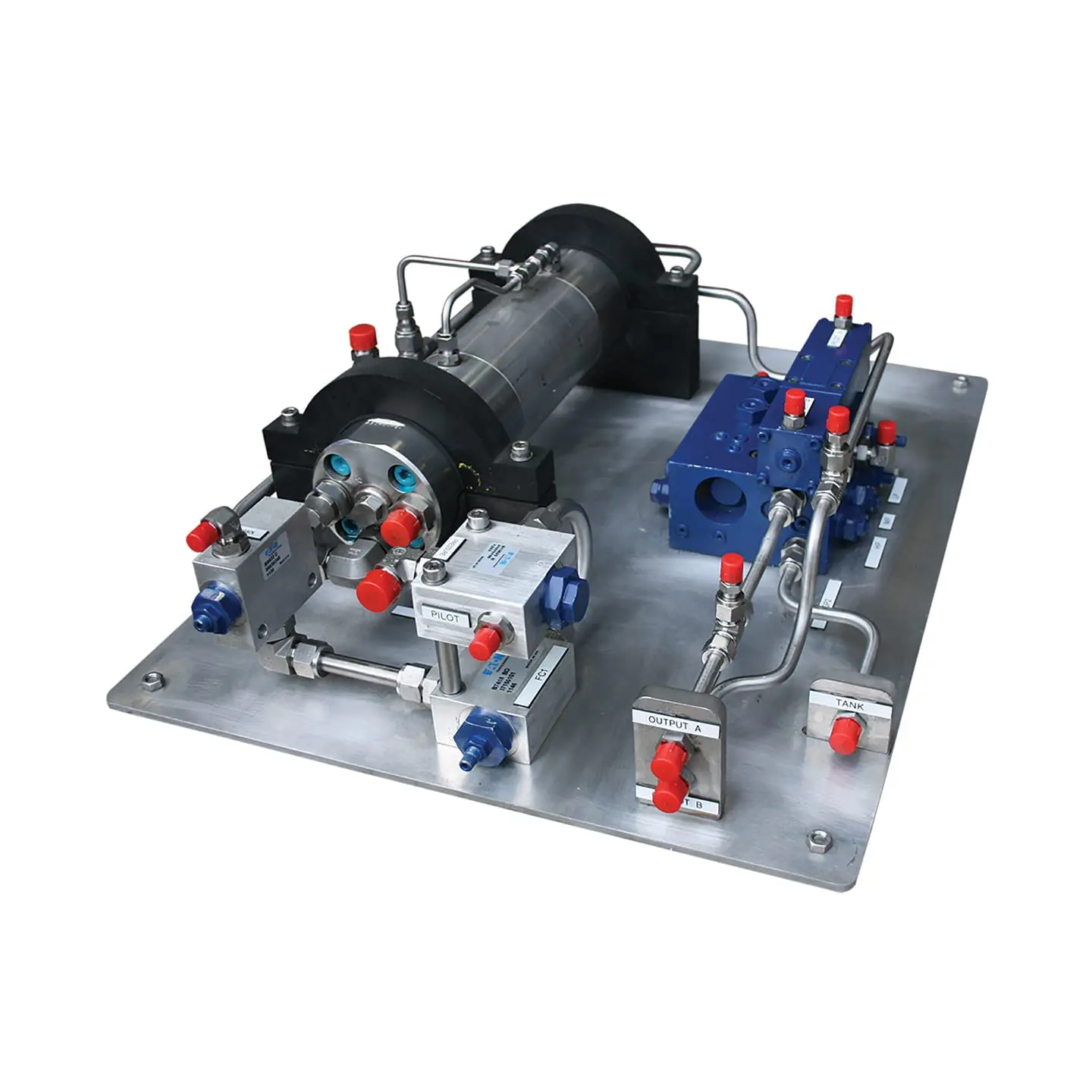

Forum 3 Stage IHPU

Available for rental/hire from Ashtead Technology - the Forum 3 Stage IHPU.

Add to basket Enquire now Datasheet Download

The 3 Stage IHPU can be used for numerous subsea applications including pressure testing, BOP operation, fluid transfer and hot stab operations with the capability for 3 selectable pressures each ranging from 0-5000psi and is designed to be easily and simply reconfigured, with the minimum of hassle.

Connection can be made to any sized fluid reservoir and operate using water / glycol and hydraulic mineral oils as suitable fluid media. The inbuilt depressurisation facility allows safe venting of pressure and pumping fluids back to reservoir avoiding any unwanted leakage to the subsea environment.

  • 3 selectable pressures
  • Directional control
  • Suitable for mineral oils and glycols
  • 350bar / 5076psi output
  • 17lpm / 4.5gpm output
  • Pressure testing operations
  • Fluid transfer operations
  • Hot stab operations
