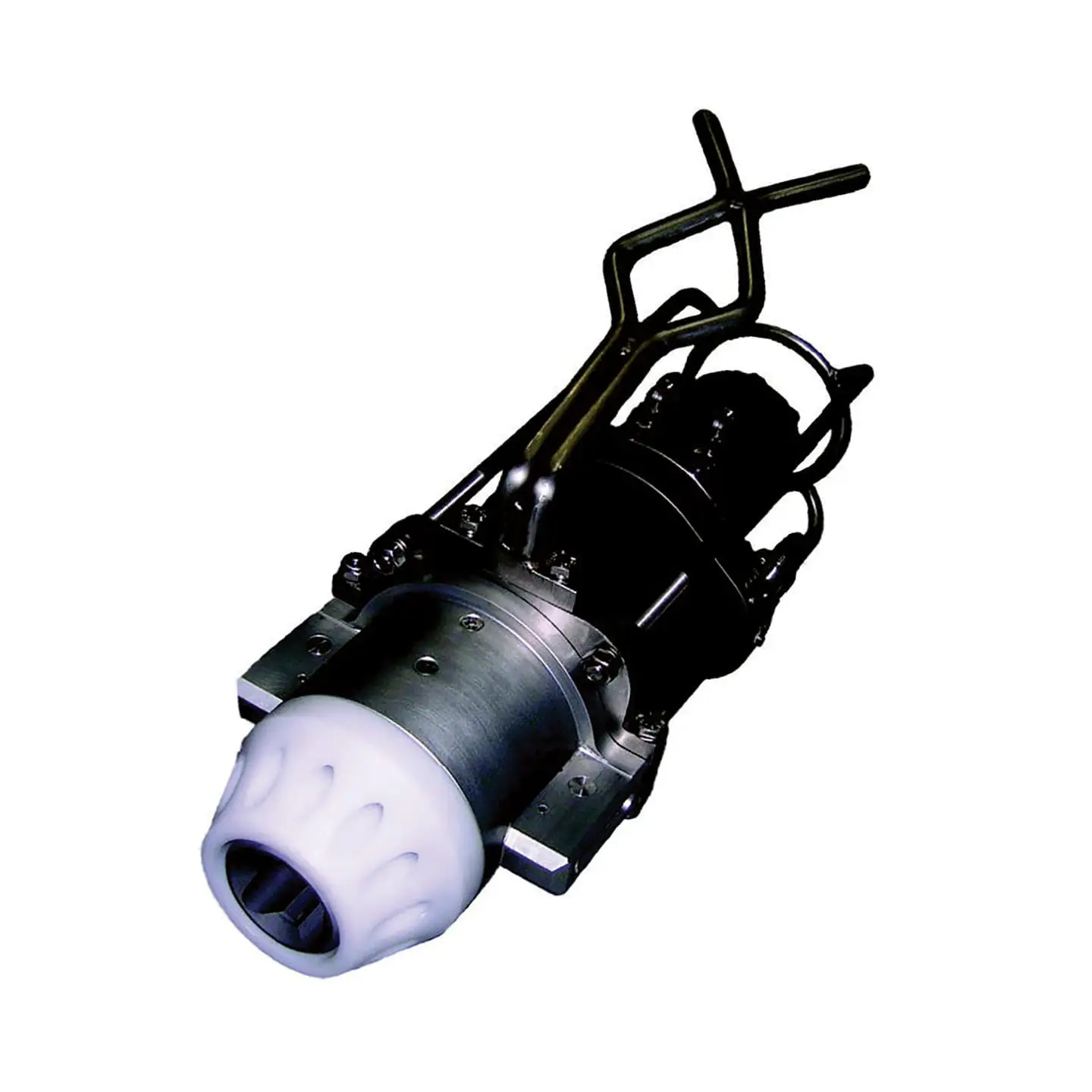

Forum Class 1-4 Torque Tool (API 17D)

Available for rental/hire from Ashtead Technology - the Forum Class 1-4 Torque Tool (API 17D).

Add to basket Enquire now Datasheet Download

This torque tool has been specifically developed to provide the highest level of performance. It has integral torque and turns counting sensors for closed loop control. When matched with a PSS supplied torque tool control manifold, it can provide precise feedback on torque response of any subsea operation. These can alternatvly be utilised by connecting a PSSL universal subsea display, which would give a visual read-out of live torque feedback and turns counter.

The tool conforms to the ISO 13628-8 fig 18 class 1-4 bucket interface used extensively in the subsea industry for valve overrides operated by ROV. The tool has latching wings allowing the tool to hold on to the interface. The latching wings are hydraulically driven forward and spring retracted. Thus in the case of a loss of hydraulic power the wings will release. The tool uses a high specification drive motor for consistent torque output characteristics, even if used with direct hydraulic pressure control without the feedback sensor. The motor shares casing oil with the gearbox therefore avoiding the need for a separate compensator.

Note that for applying torques less than 108Nm (80ft lbs) the class 1&2 tool is recomended.

  • ISO 13628-8 fig 18 (API 17D) class 1-4
  • Max torque 2700 Nm / 2000ft lbs
  • Dual range
  • Dual sensor electronic turns counter
  • Internal strain gauge
  • Latching wings
  • Can be configured for diver use
  • Class 1-4 valve operations
  • Flying lead operations
