Availability: Rental

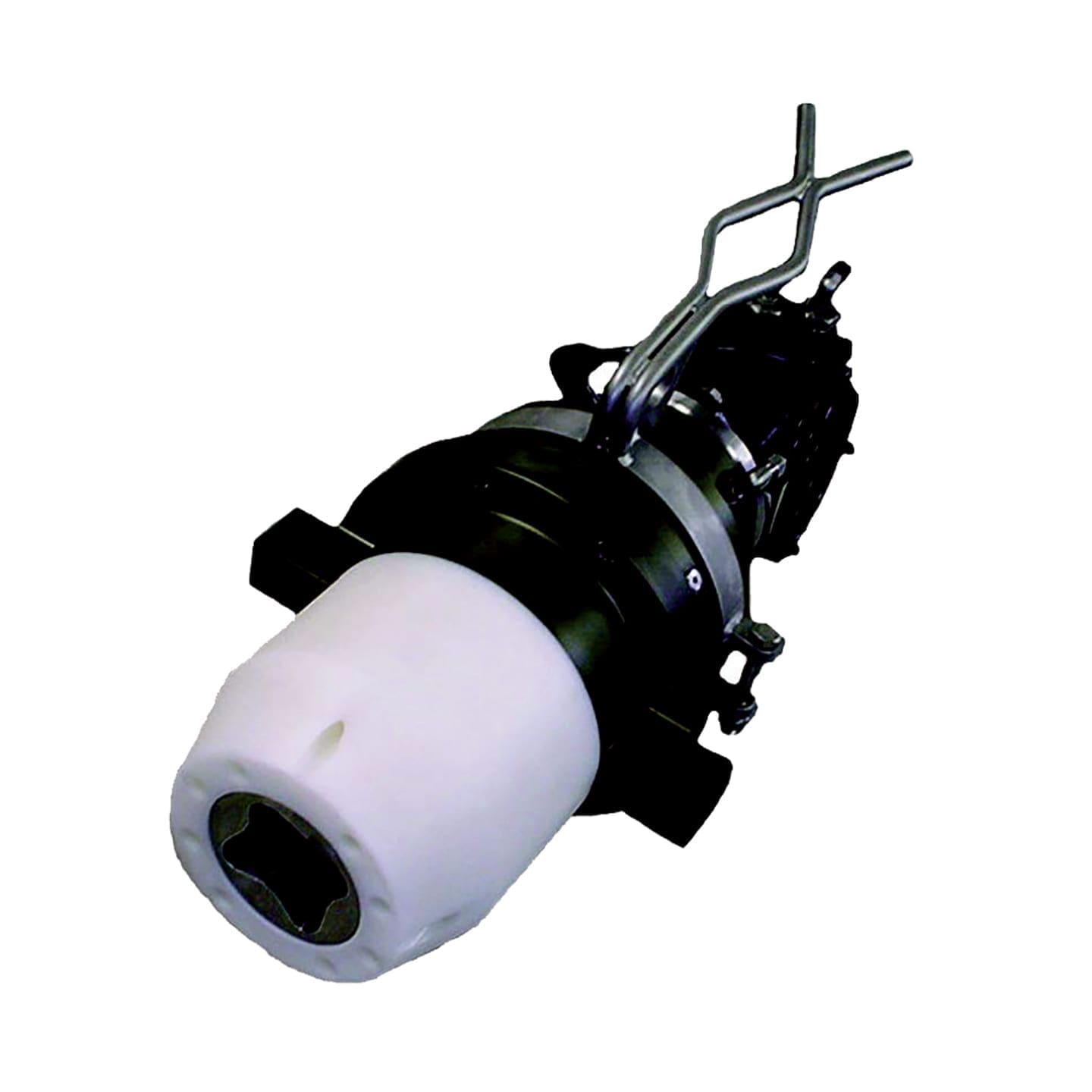

Forum Class 5 Torque Tool (API 17D)

Available for rental/hire from Ashtead Technology - the Forum Class 5 Torque Tool (API 17D).

Add to basket Enquire now Datasheet Download

This torque tool has been specifically developed to provide the highest level of performance using a high specification motor and robust gearbox in an efficient, low weight assembly.
The socket is specially profiled for easy alignment. A range of control accessories is available including a precision surface torque verification unit for pre-dive testing.

The tool conforms to the ISO 13628-8 fig 18 class 5 interface used extensively in the subsea industry for pipeline valve operations by ROV. The tool uses a high specification drive motor for consistent torque output characteristics.

  • ISO 13628-8 fig 18 (API 17D) class 5
  • Max torque 6750Nm / 5000ft lbs
  • Dual sensor electronic turns counter
  • Class 5 valve operations
