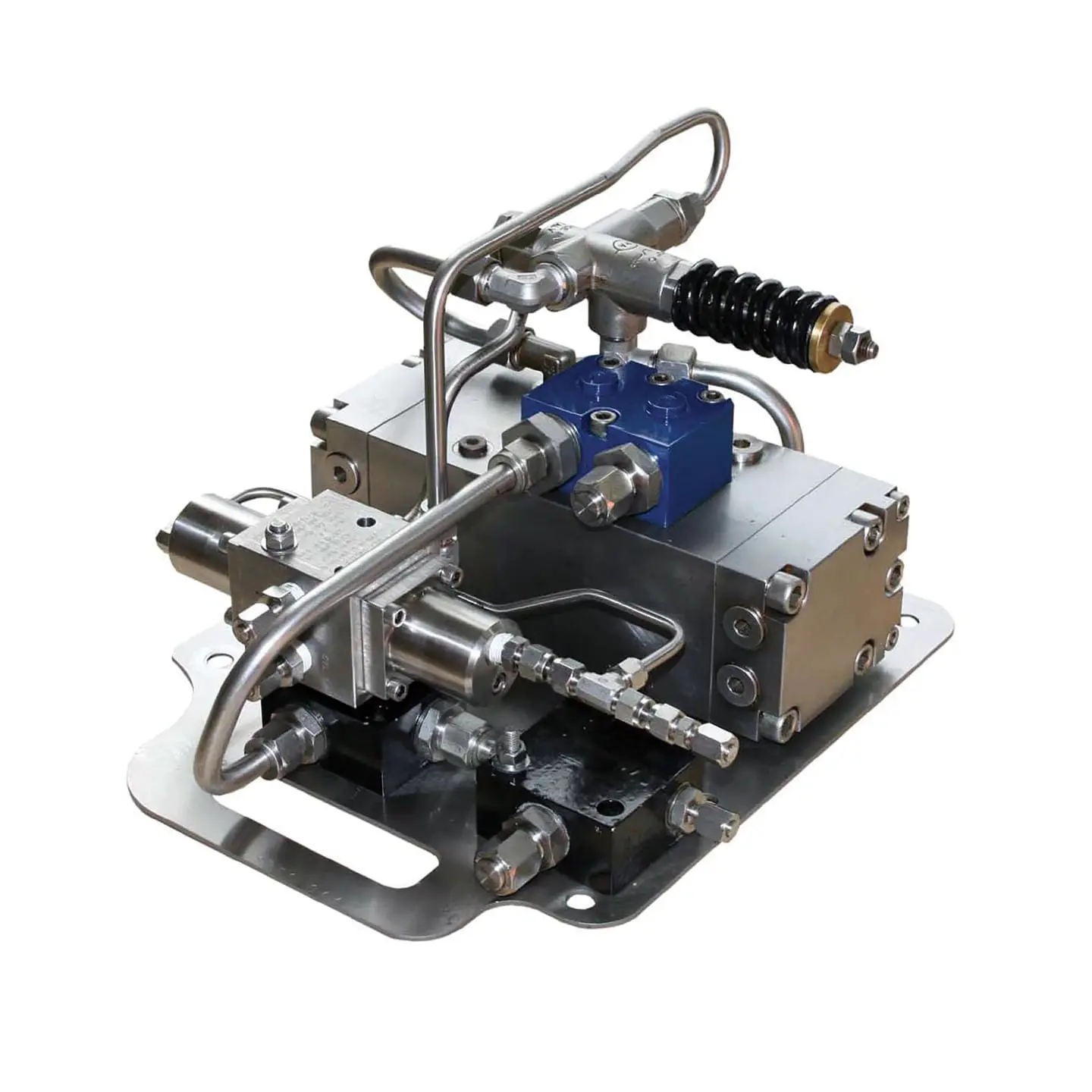

Forum Dual Jetting System

Available for rental/hire from Ashtead Technology - the Forum Dual Jetting System.

Add to basket Enquire now Datasheet Download

The dual jetting system has been designed to be easily mounted onto any work class ROV and jet at pressures up to 400bar through either a turbo nozzle with 25 degree spray pattern, or by switching to a higher pressure pencil jet nozzle which has a more powerful direct spray.

This combination of nozzle types and the flexibility to switch between the two make this tool an impressive and versatile jetting solution. Nozzle type and patterns can be changed subsea depending on the intended application. (please speak with us to determine the best nozzle types for your application). The unit will work at a depth of up to 3000 MSW. Pressure can be monitored at all times via a gauge connected to the systems gauge port. This versatile tool can also be used as a dual IHPU.

  • Max jetting 400bar / 5801psi (standard nozzle)
  • Rapid switch from pencil jet to turbo nozzle
  • Use as a jetting system or IHPU
  • Wide range of nozzle types
  • Only 28kg / 61.7lbs in air
  • Light subsea cleaning operations
  • Pumping & injection operations
