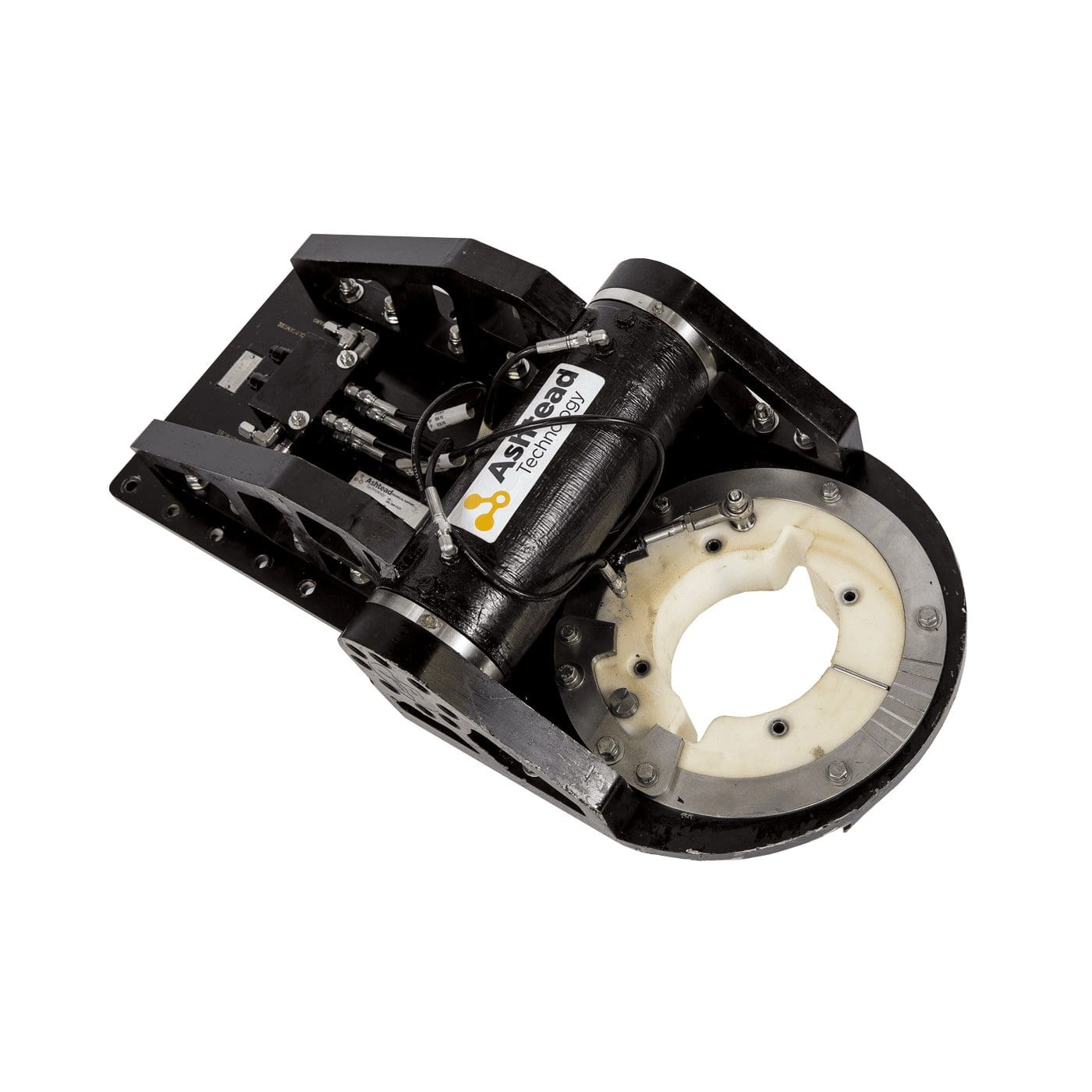

Forum Flying Lead Orientation Tool (FLOT) Upright

Available for rental/hire from Ashtead Technology - the Forum Flying Lead Orientation Tool (FLOT) Upright.

Add to basket Enquire now Datasheet Download

The FLOT tool is designed to operate in conjunction with a torque tool and is used to orientate and guide flying leads into the stab plate connections. The FLOT tool is designed to take the PSS class 1-4 torque tool, but can easily accommodate similar tools from other manufacturers. A rotary actuator allows a pitch alignment of plus 60 or minus 90 degrees with a load of up to 250kg attached. The tool is also equipped with a roll alignment function giving a rotation of plus or minus 15 degrees.

The FLOT tool is compact and the tool mounting base is supplied with a selection of mounting holes for mounting within the forward structure of the ROV. The pitch and roll actuators can be controlled from the TTCS or ROV’s spare directional control valves.

  • Plus 60 minus 90 deg pitch
  • +/- 15 deg roll angle
  • Counter-balance valve on both actuators
  • 250kg / 551.1lbs payload
  • Flying lead operations
  • Class 1-4 torque tool operations
