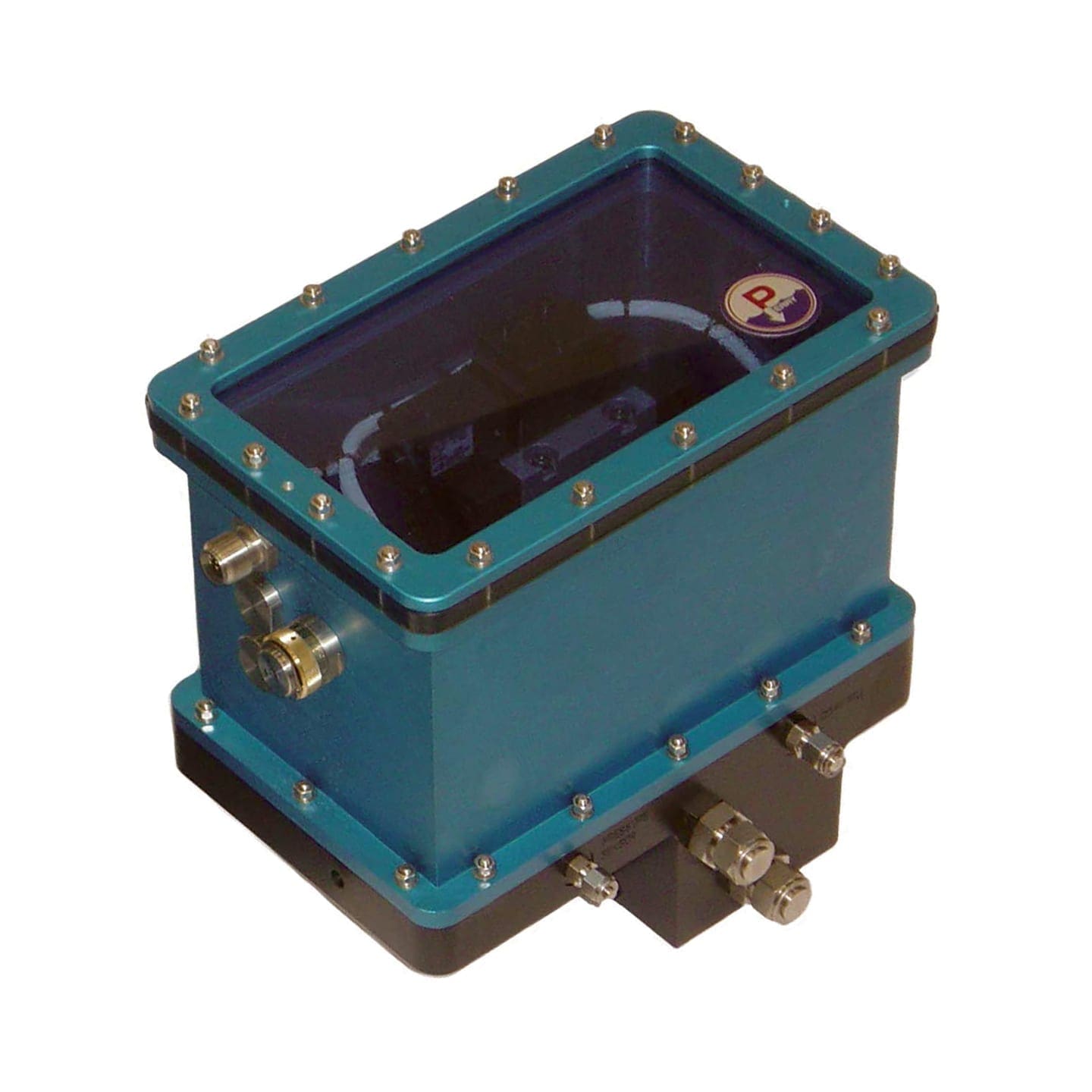

Forum High Flow Manifold

The high flow manifold is an auxilary manifold that connects to the standard torque tool control system. The manifold contains an NG6 bi-directional proportional pressure and flow
control and an NG10 proportional pressure and flow control valve. Also in the manifold is a differential pressure sensor used for suction pile operations. The manifold has an input for a optional flow meter. The standard torque tool control sytem software controls and displays readings from the manifold. Additionally input from an external gyro can be displayed on the software for suction pile operations.

• NG6 bi-directional proportional
• pressure and flow valve
• NG10 proportional pressure and flow valve
• Differential pressure sensor
• Flow meter input

• Suction pile operations
• High flow tooling operations
