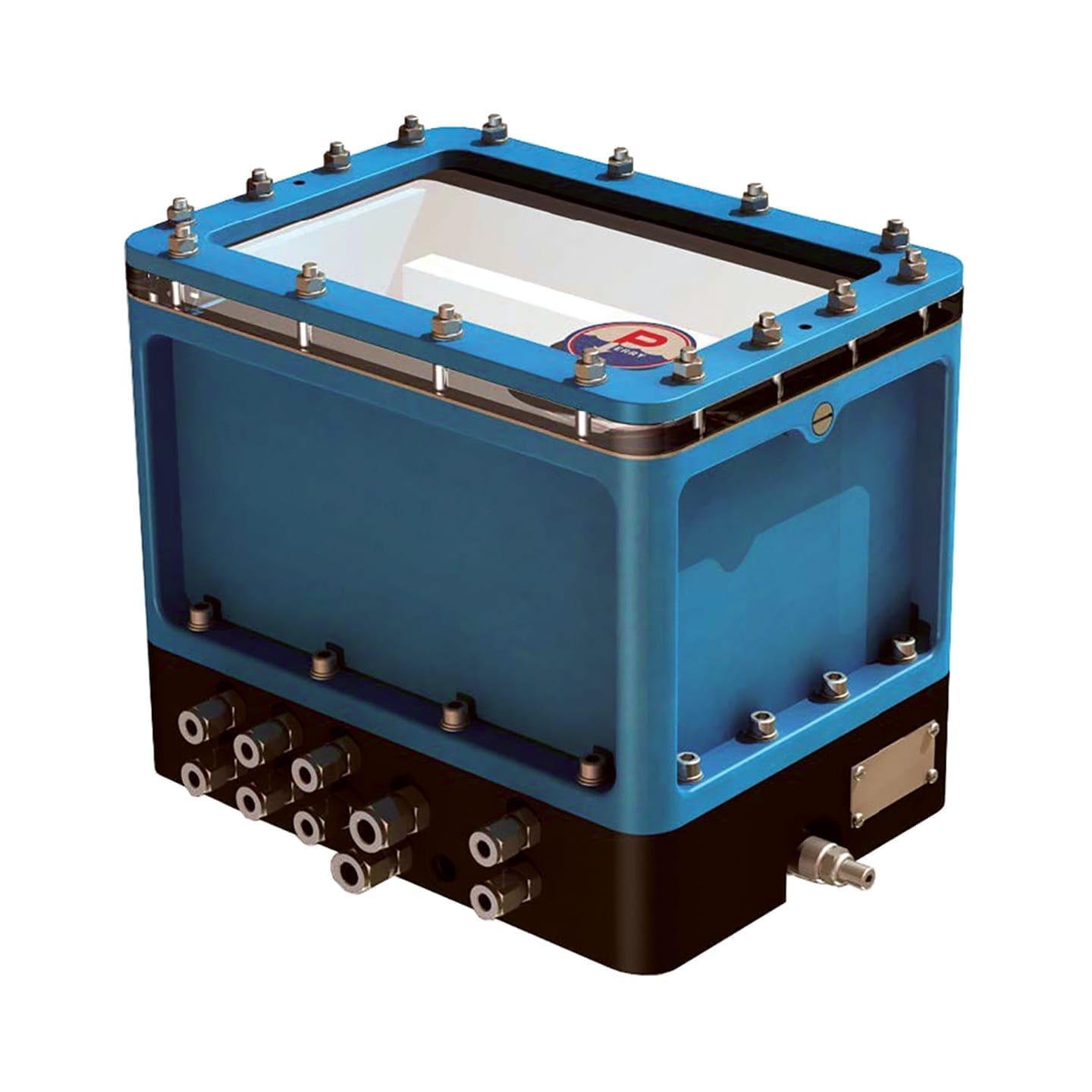

Forum Torque Tool Control System

Available for rental/hire from Ashtead Technology - the Forum Torque Tool Control System.

Add to basket Enquire now Datasheet Download

The torque tool control system allows the user, from the surface, to adjust the torque and speed. This system is particularly suitable for deepwater operations where torque required for a particular operation may be uncertain, or has multiple values for different operations on the same dive. The actual torque and speed is user controlled and measured at all times and recorded as a signature of the subsea operation for future reference.

The controller can be used with any torque tool supplied by Ashtead Technology. The system can also be used as a pressure / flow controller for tools not equipped with feedback sensors.

  • 1 off bi-directional pressure & flow control output
  • 3 off bi-directional output
  • Strain gauge and turns count input
  • 4000m / 13,123ft depth rated
  • RS232 or RS485 options available
  • External pressure sensor
  • Torque tool control operations
  • High-flow manifold control
  • FLOT operations
