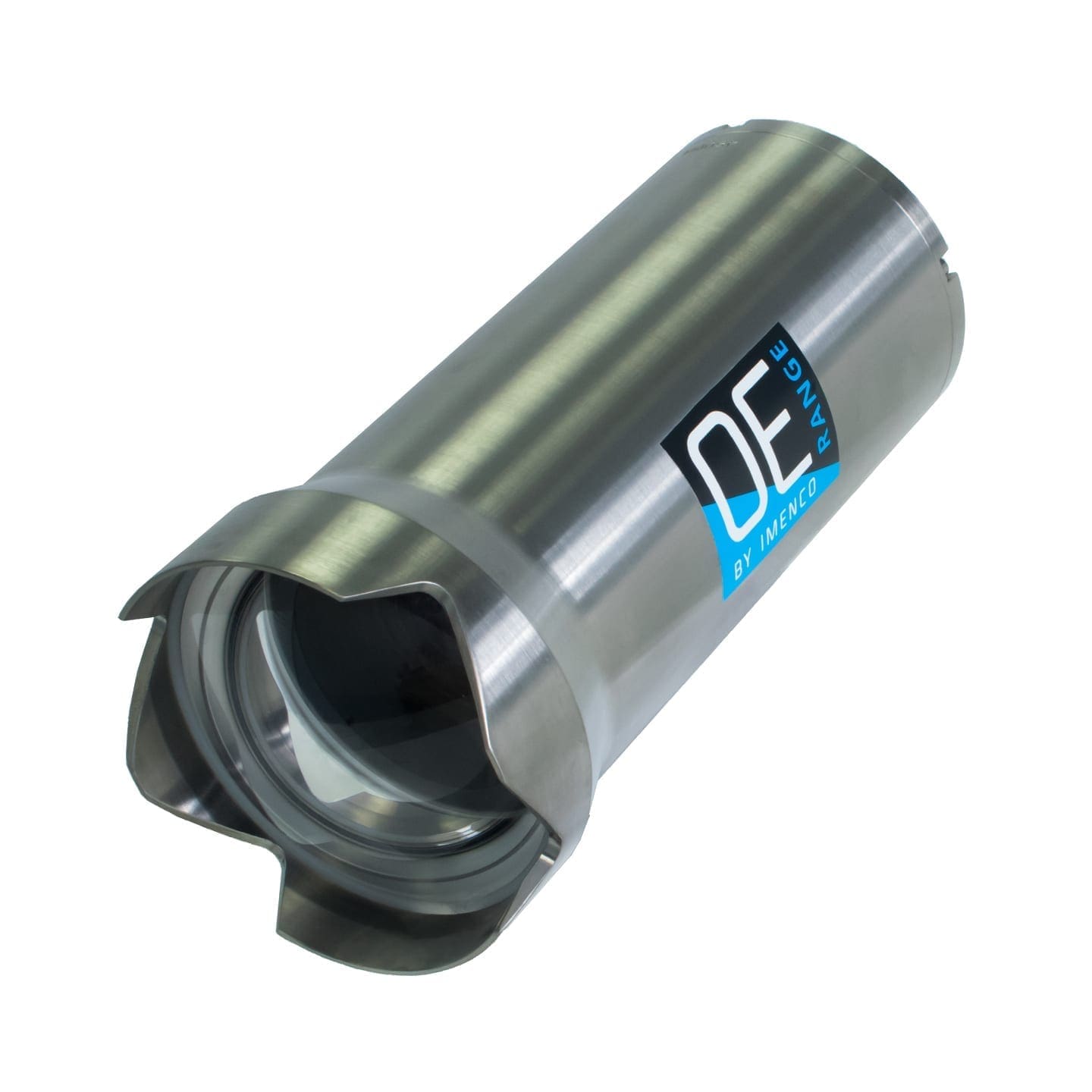

Imenco OE14-370 Colour Zoom Camera

Available for rental/hire from Ashtead Technology - the Imenco OE14-370 Colour Zoom Camera.

Add to basket Enquire now Datasheet Download

The OE14-370 (PAL) (OE14-371 (NTSC)) Colour Zoom Camera is introduced to complement the industry standard ROV inspection colour zoom camera, OE14-366a (and OE14-367a). This camera uses the latest CCD technology to give improved image definition.

When controlled serially, the built-in field memory allows slower shutter speeds, a ‘snapshot’ capability and text insertion. The camera can also be given an ID number together with Time and Date.

The zoom lens provides a close-up inspection capability combined with the flexibility of a 36x (144x with digital) magnification for powerful stand off inspections.
The unique IR remote control allows long line drive and camera control set-up. Camera control can be single wire (tri-state) two wire (bi-polar) and RS485. RS232 is available as a factory set option.

It is possible to set the white balance to 3,200K, 5,600K or to auto tracking and back light compensation can be switched on or off using the remote control.
The inclusive Graphical User Interface provides the control of extensive camera functionality via the serial link. An addressable feature has been included allowing control of more than one camera over the same serial control line.

  • 36:1 zoom lens
  • Extended angle of view
  • Addressable serial control
  • Long range inspection
  • Spatial awareness
  • Pipeline inspection
  • Nuclear ponds
