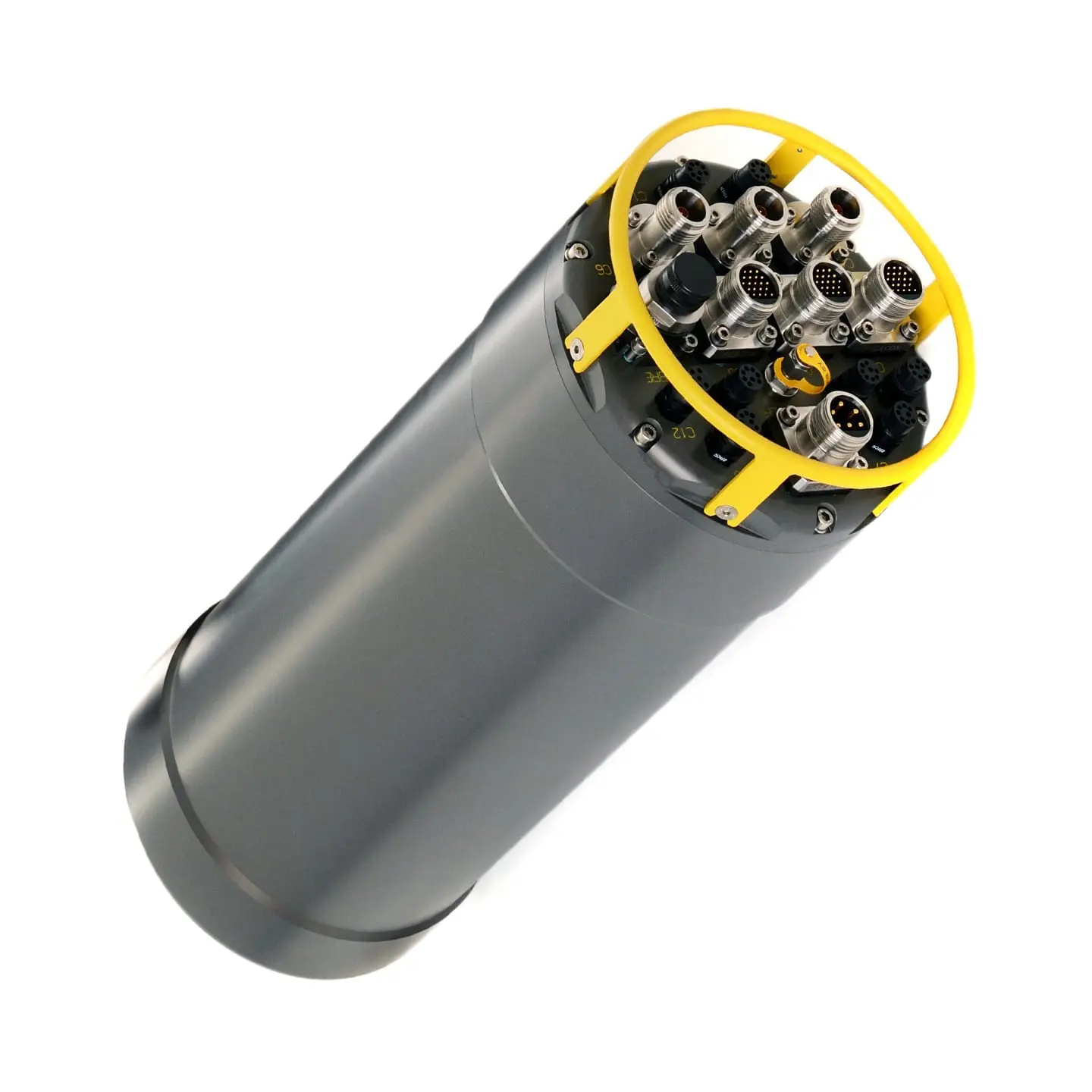

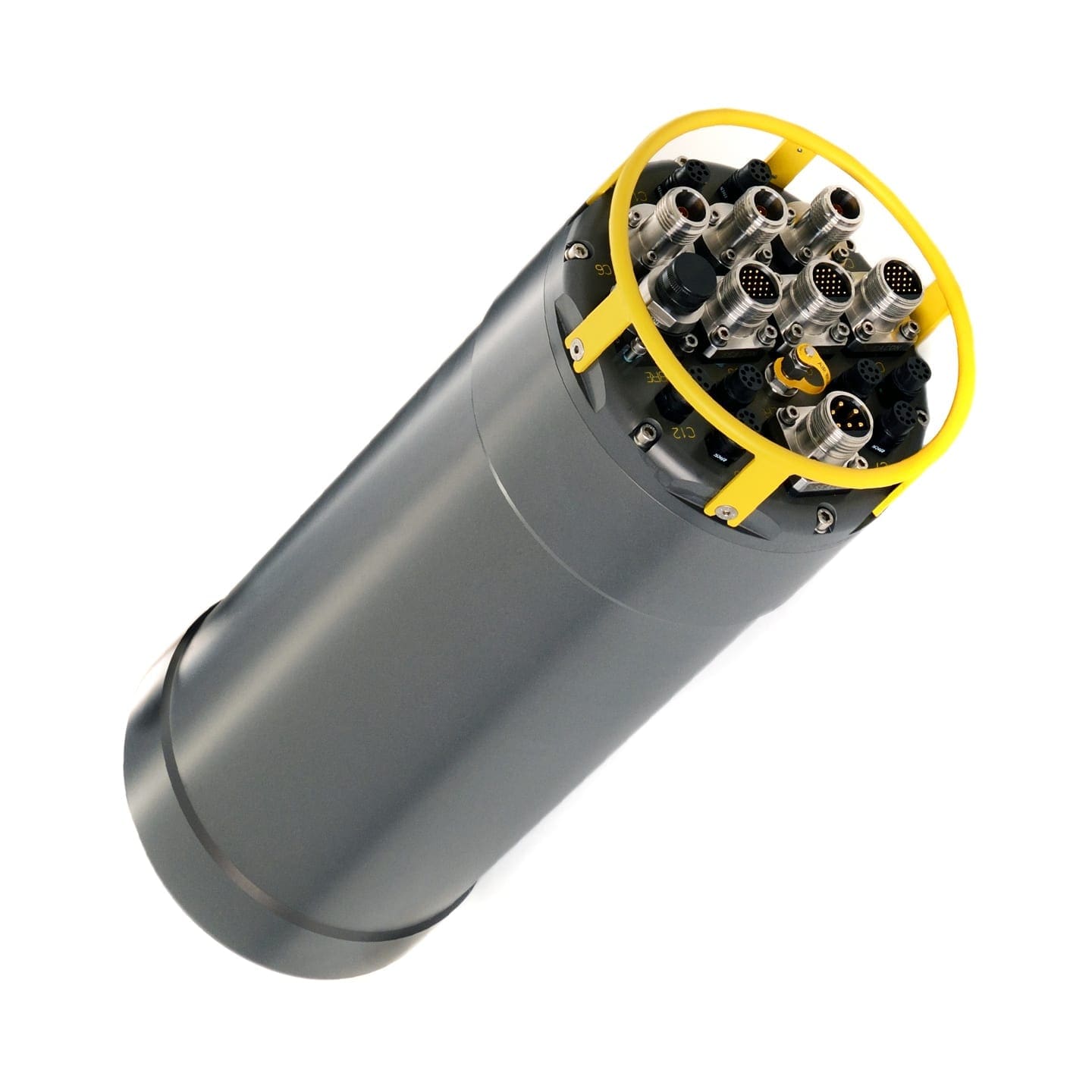

Innova Matrix MkII+ Fibre Optic Multiplexer

Available for rental, hire and purchase from Ashtead Technology - the Innova Matrix MkII+ Fibre Optic Multiplexer.

Add to basket Enquire now Datasheet Download

The Innova Matrix MKII+ System is a stand-alone fibre optic multiplexer and control solution, providing a simple, plug and play interface for a large array of sensors and equipment to any remotely operated system.

The system consists of a compact, one-atmospheric subsea unit rated for 3000 MSW, and a 19” rack mounted topside unit with touch screen and status for all channels on the screen.

The Matrix’s internal control system provides individual 2-pole switching of all power outputs as well as DC power insulation monitoring. The DC power outputs are equipped with software resettable fuses to save operation time. All DC power outputs are equipped with voltage and current monitoring, which is also displayed and logged in the topside controller.

  • HD, Ethernet, PECL (multibeam) and serial all fitted as standard
  • No need to open bottle to reconfigure
  • Stand-alone fibre optic multiplexer system
  • Shock/vibration tested to ISO 13628-6
  • Robust and well engineered construction
  • Interfaces a large array of sensors and equipment to any ROV
