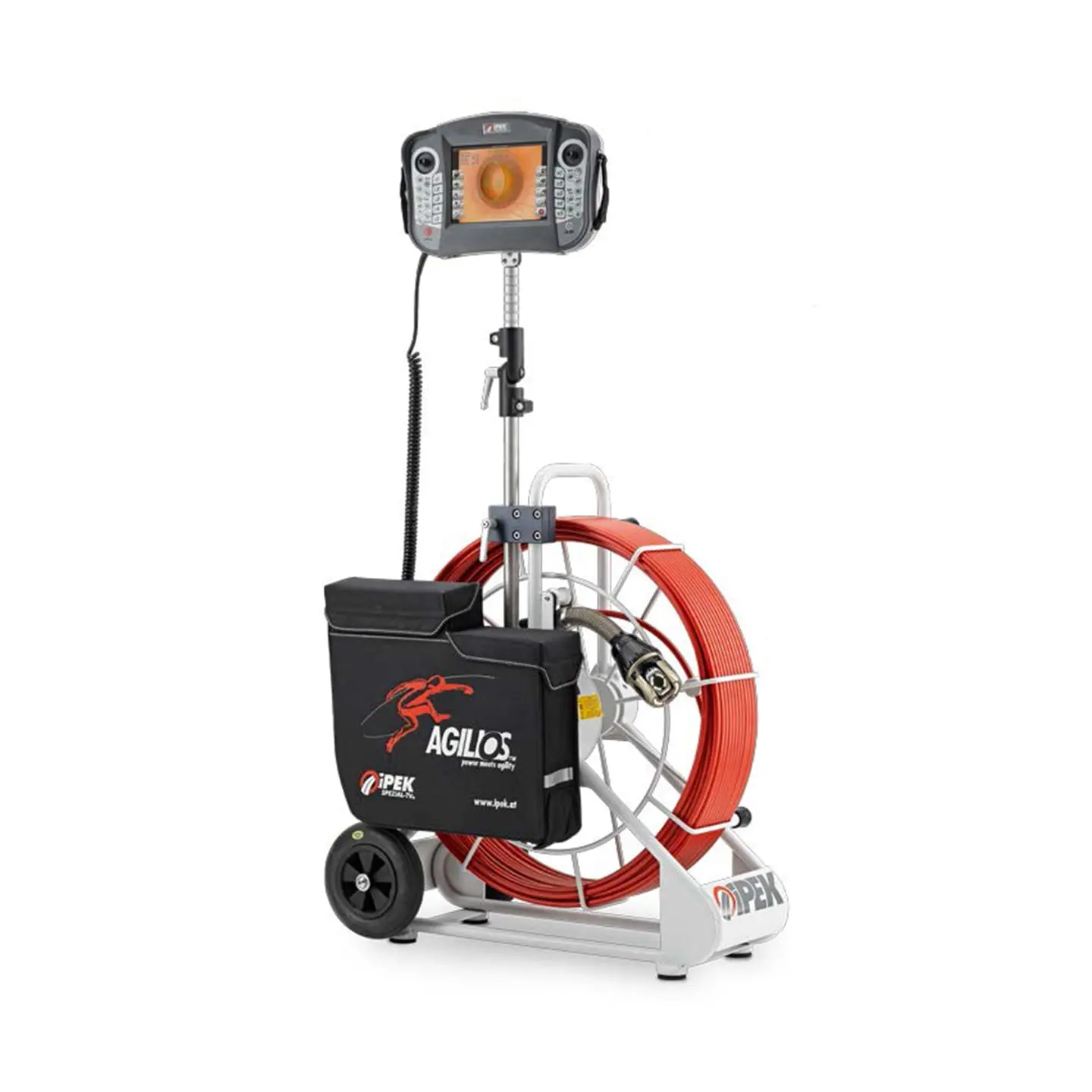

iPEK AGILIOS AR90 Push Rod Camera

Available for rental/hire from Ashtead Technology - the iPEK AGILIOS AR90 Push Rod Camera.

Repair available
Add to basket Enquire now Datasheet Download

Suitable for pipe sizes from 50mm and with a cable length of up to 60m, the iPEK Agilios AR90 is a rugged, flexible Push Rod Camera which is capable of completing a number of drain, sewer and pipeline inspections.

The Agilios is available to rent with two camera options; the Pan and Tilt PTP 70ll which offers an endless rotation and the Axial AC42 which provides a constant upright picture. The camera heads are easily interchangeable, allowing you to quickly swap them over depending on your application requirements.

For reporting, the AGILIOS AR90 is compatible with the iPEK Vision Control VC200 portable control panel. The VC2000 features a 4.8inch touchscreen, records videos and images and stores data via an internal memory card, which allows you to easily manage your inspection data via USB or Ethernet.

By providing you with a 360° view of your inspection area and offering built in image and video recording, the Agilios AR90 Push Rod Camera is suitable for applications which require in-depth visual inspections.

  • Pipe size: from 50mm diameter
  • Cable length: up to 60m
  • Camera: Pan and Tilt (with endless rotation), constant upright picture
  • Bar rating (AC42 camera): 1bar or 10m water depth
  • Bar rating (PTP70II camera): 1bar or 10m water depth
  • Control unit: Vision Control VC2000, 8.4inch touchscreen, internal memory card and easy data transfer via USB or Ethernet
  • Reporting: Images and Videos
  • DVR required: No (in-built recording)
  • Drain inspection
  • Pipeline inspection
  • CCTV surveys
  • Tank, void, cavity or conduit inspection
