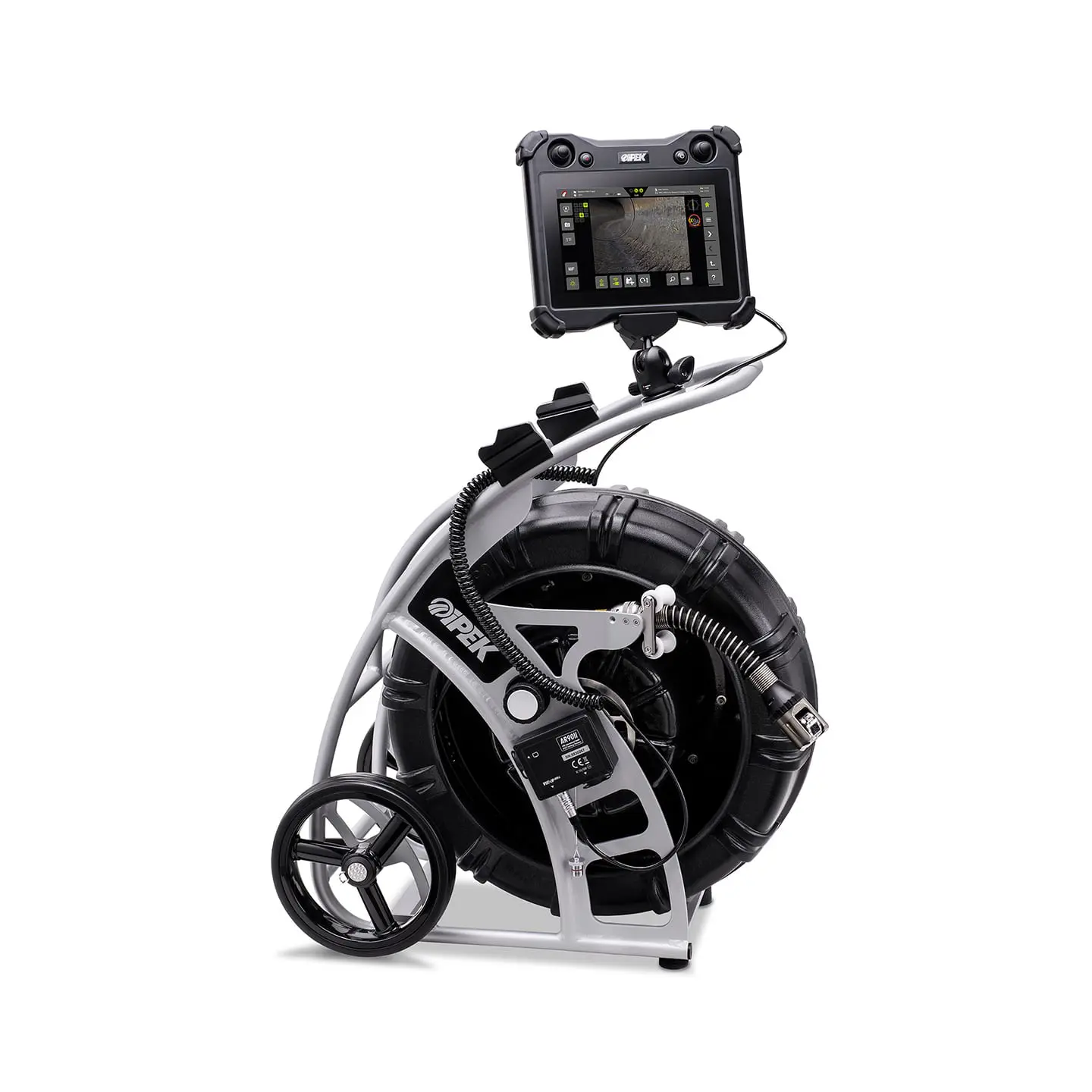

iPEK AGILIOS AR90II EX Push Rod Camera - ATEX Zone 1

Available for rental/hire from Ashtead Technology - the iPEK AGILIOS AR90II EX Push Rod Camera - ATEX Zone 1.

Repair available
Add to basket Enquire now Datasheet Download

Suitable for pipe sizes from 52mm and with a rod length of up to 90m, the iPEK Agilios AR90II Push Rod Camera is ATEX certified for drain and pipeline inspections in Zone 1 environments. The Zone 1 EX rating allows the Agilios AR90II to be used in potentially explosive atmospheres. Further information on working in EX environments can be found on the HSE website.

The Agilios is available to rent with the AC52 Axial Camera Head. Forward facing with built-in illumination, the camera gives you a clear and concise view of your inspection area and provides a constant upright picture.

For reporting, the Agilios AR90II rents with the VC50 control unit. Low weight and extremely portable, the VC50 offers built-in recording and allows you to easily take images (.PNG) and record videos (MPEG4) of your inspection area. For offsite reporting, inspection data can be transferred off the VC50 onto a USB memory stick.

Rents with: Push Rod & Coiler (Agilios AR90II), Control Unit (VC50), Axial Camera (AC52), Rod & Coiler (up to 90m) and Mains Adaptor

Renting the iPEK AGILIOS AR90II EX
Available for short or long term contacts, the iPEK AGILIOS AR90II EX will arrive ready to use straight out of the box. Once your job is complete, you can either return the equipment to us, or contact us to arrange a collection. It’s that simple!

Approved iPEK Repair Centre
As part of our iPEK approved service centre, we are also able to offer the repair of the iPEK AGILIOS AR90II EX. Using iPEK approved parts and tools, all repairs are carried out by qualified technicians in our ISO9001 certified facility. Whilst your system is in for repair, you can hire a replacement unit from our broad rental fleet to avoid any costly downtime (subject to availability).

  • ATEX rating: Zone 1
  • Pipe size: from 52mm diameter
  • Cable length: up to 90m
  • Camera: Forward facing, self-levelling
  • Bar rating (AC52 camera): 1bar or 10m water depth
  • Control unit: Vision Control VC50, 213mm touchscreen, internal memory card and easy data transfer via USB or Ethernet
  • Reporting: Images and videos
  • DVR required: No (in-built recording)
  • Drain inspection
  • Pipeline inspection
  • CCTV surveys
  • Tank, void, cavity or conduit inspection Drain & pipe inspection in potentially explosive environments (Zone 1)
