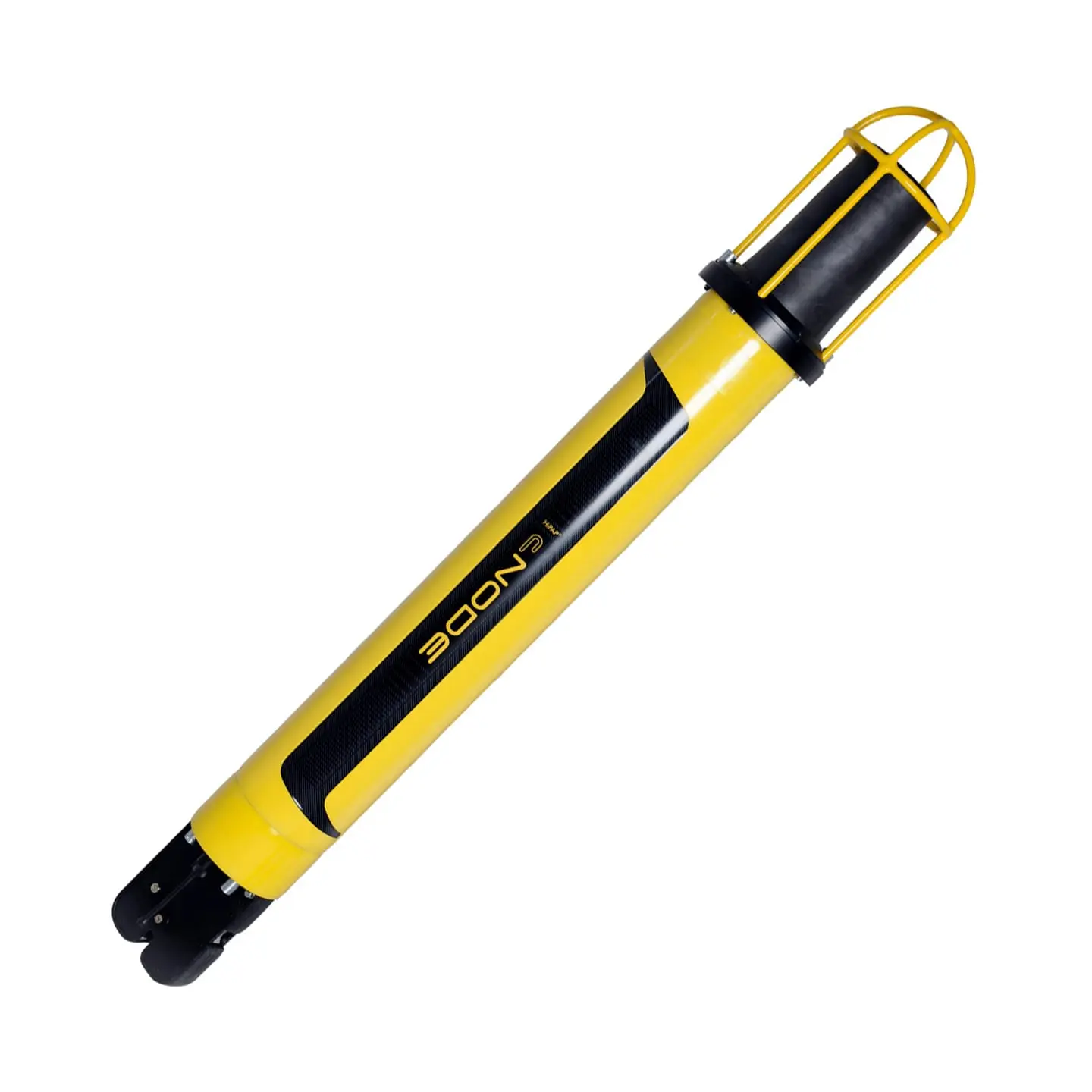

Kongsberg cNODE Maxi Transponder 4000m

The Kongsberg cNODE® Maxi is part of a family of transponders for underwater acoustic positioning and communication. The transponders operate together with both HiPAP®, HPR and cPAP® transceivers. cNODE® utilises Cymbal® acoustic protocol and is compatible with the HiPAP®/HPR 400 channels and telemetry. cNODE® is designed to cover a large range of applications and this is made possible by the modular design and a spectrum of different transducers, internal and external sensors, housing materials and other add-on functions.

cNODE® is easy to set-up, operate and maintain. Both new configuration and software can be downloaded from TTC 30 without opening the transponders. The floating collar and release design make the launch/recovery operation safe and easy. Spare parts for cNODE® are based on the main modules.Ashtead offer the 34-180 and 34-30V30H-R models of cNODE maxi.

• Operates together with HiPAP®, HPR and cPAP® transceivers
• Compatible with both Cymbal® acoustic protocol for positioning and data link, and HiPAP®/HPR 400 channels and telemetry
• SSBL positioning
• LBL positioning
• Range accuracy is in the order of 0,01m between transponders
• Acoustic telemetry link for command and data transfer
• Both transponder and responder functions
• Pressure relief valve and vent screw (safety devices)
• External connector for transponder configuration and software update via serial line (TTC 30)
• Modular design such that the transducer, transponder electronics, battery pack and optional add-on’s can be replaced individually
