Availability: Rental

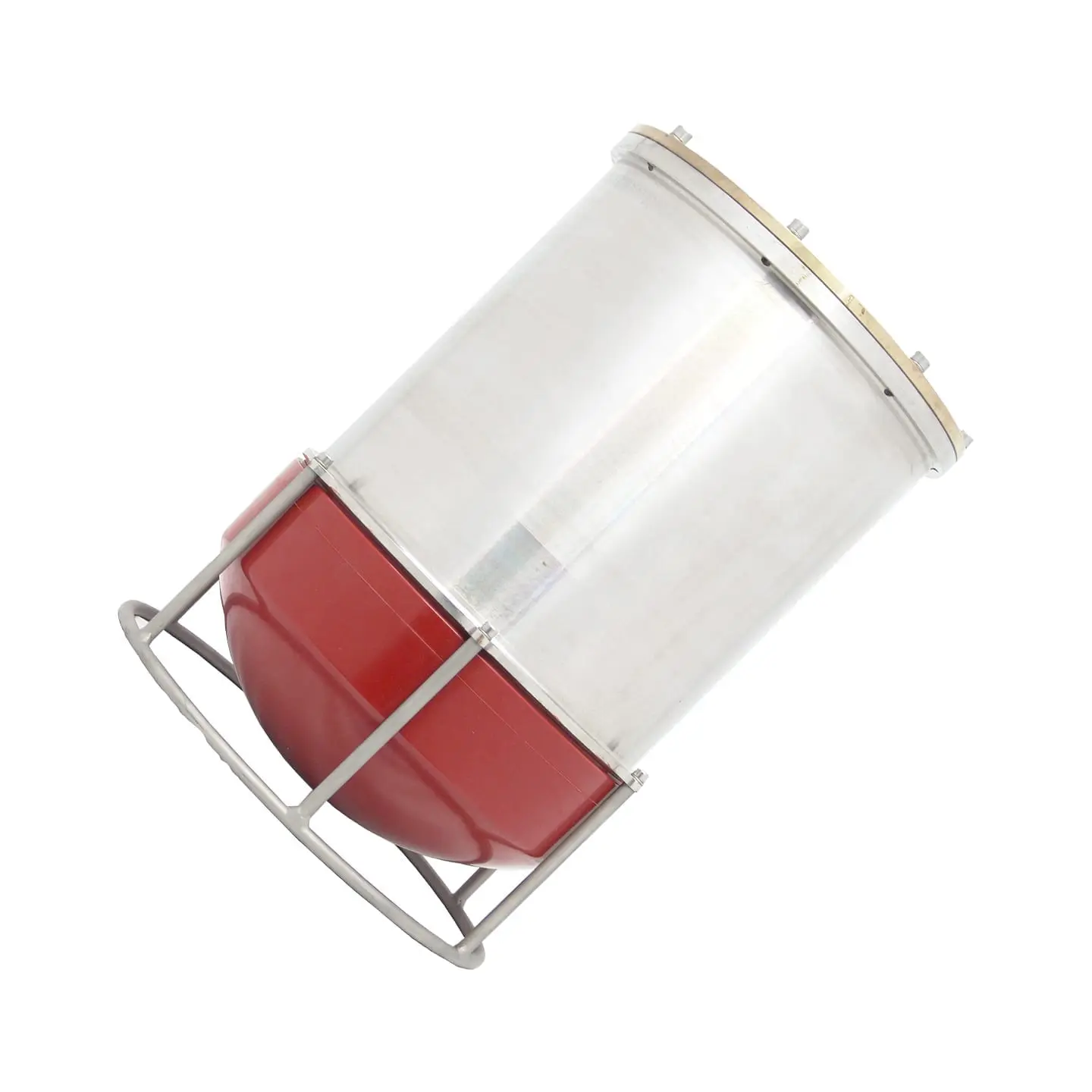

Kongsberg HiPAP 350P USBL System

Available for rental/hire from Ashtead Technology - the Kongsberg HiPAP 350P USBL System.

Add to basket Enquire now Datasheet Download

Used in the survey and ROV industries, this portable acoustic positioning system is used in the demanding SSBL market. The HiPAP® 350P is a high-accuracy SSBL/LBL and MULBL system with a range capacity down to 3000m. The HiPAP® 350P is a compact transducer containing the transceiver and a high accuracy motion reference unit. The transducer can be tilted without extra calibration as the MRU automatically compensates for the tilt. It is designed to be mounted on a shaft over the side or through a moon pool.

  • 56 transponder channels
  • Hull unit for transducer deployment Windows XP® based operating system
  • Receive frequency band: 27,0 – 30,5 kHz
  • Telemetry frequency band: 24,5 – 27,0 kHz
  • Transmit frequency band: 21,0 – 24,5 kHz
  • Comprehensive on-line help
  • Automatic transducer alignment calibration
  • Compensation for ray-bending Display of ray-bending
  • External Depth sensor interface
  • Position and angle alarm limits
  • Responder mode Telegram output to dynamic positioning system
  • Telegram output to survey system
  • Transponder Telemetry for full utilization
  • DGPS Interface
  • Acoustic beam pointing control
  • Super-short base line
  • Long base line
  • Multi vessel positioning
  • LBL for subsea construction
