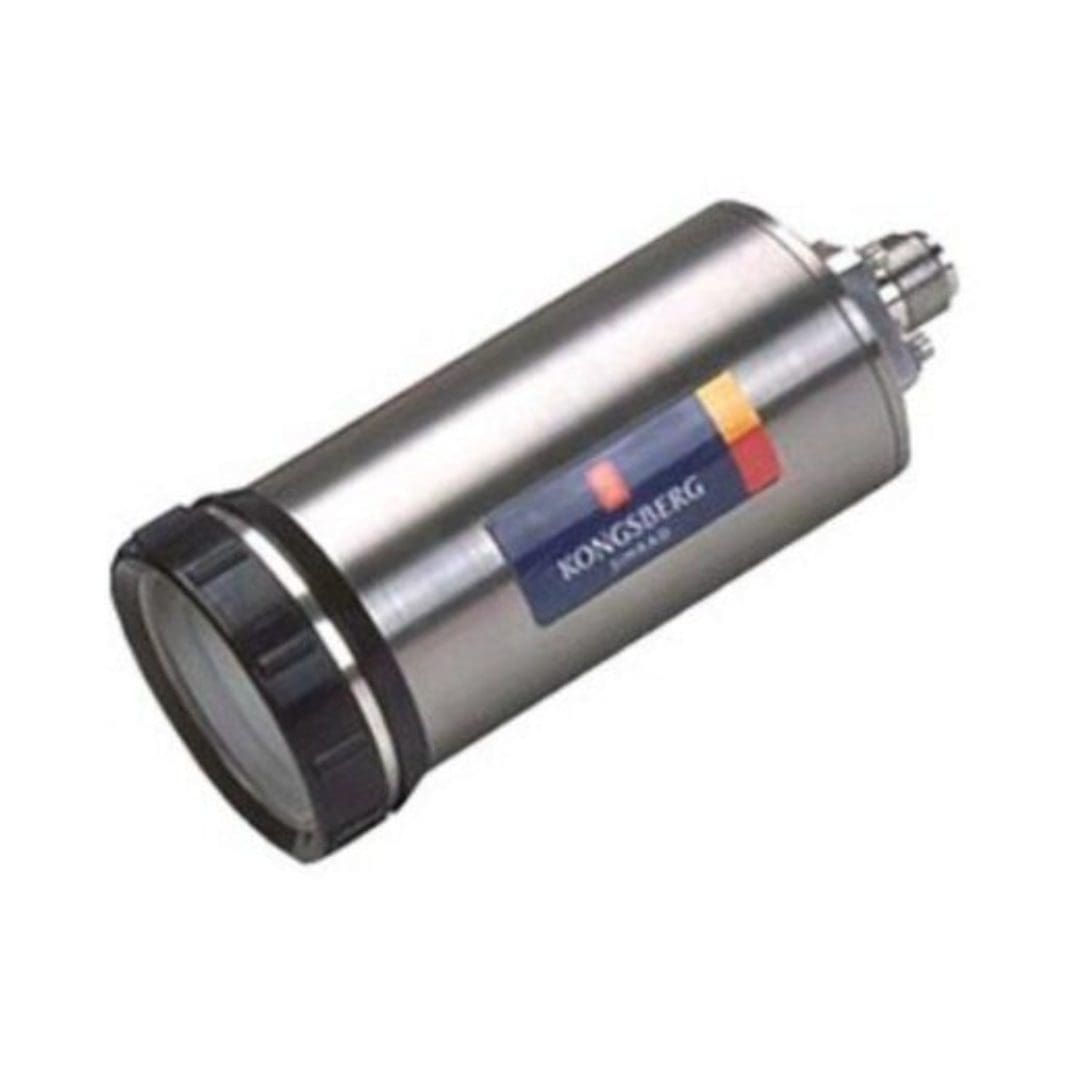

Kongsberg OE14-366 Colour Zoom Camera

Available for rental/hire from Ashtead Technology - the Kongsberg OE14-366 Colour Zoom Camera.

Add to basket Enquire now Datasheet Download

The Kongsberg Maritime OE14-366 (PAL) (OE14-367 (NTSC)) Color Zoom Camera replaces the industry standard ROV inspection camera, OE1366MKII (and OE1367MKII). This camera uses the latest super HAD CCD technology to give excellent light sensitivity and image definition. When controlled serially, the built-in field memory allows slower shutter speeds, a ‘snapshot’ capability and text insertion. The camera can also be given an ID number together with Time and Date.

A water compensated optical zoom lens provides a close-up inspection capability combined with the flexibility of an 18x (72x with digital) magnification for powerful stand off inspections. The unique Kongsberg Maritime IR remote control allows long line drive and camera control set-up.

Camera control can be single wire (tri-state) two wire (bi-polar) and RS485. RS232 is available as a factory set option. It is possible to set the white balance to 3,200K, 5,600K or to auto tracking and back light compensation can be switched on or off using the remote control. The inclusive Kongsberg Maritime Graphical User Interface provides the control of extensive camera functionality via the serial link.

An addressable feature has been included allowing control of more than one camera over the same serial control line.

  • 18:1 zoom lens
  • Text insertion
  • Addressable serial control
