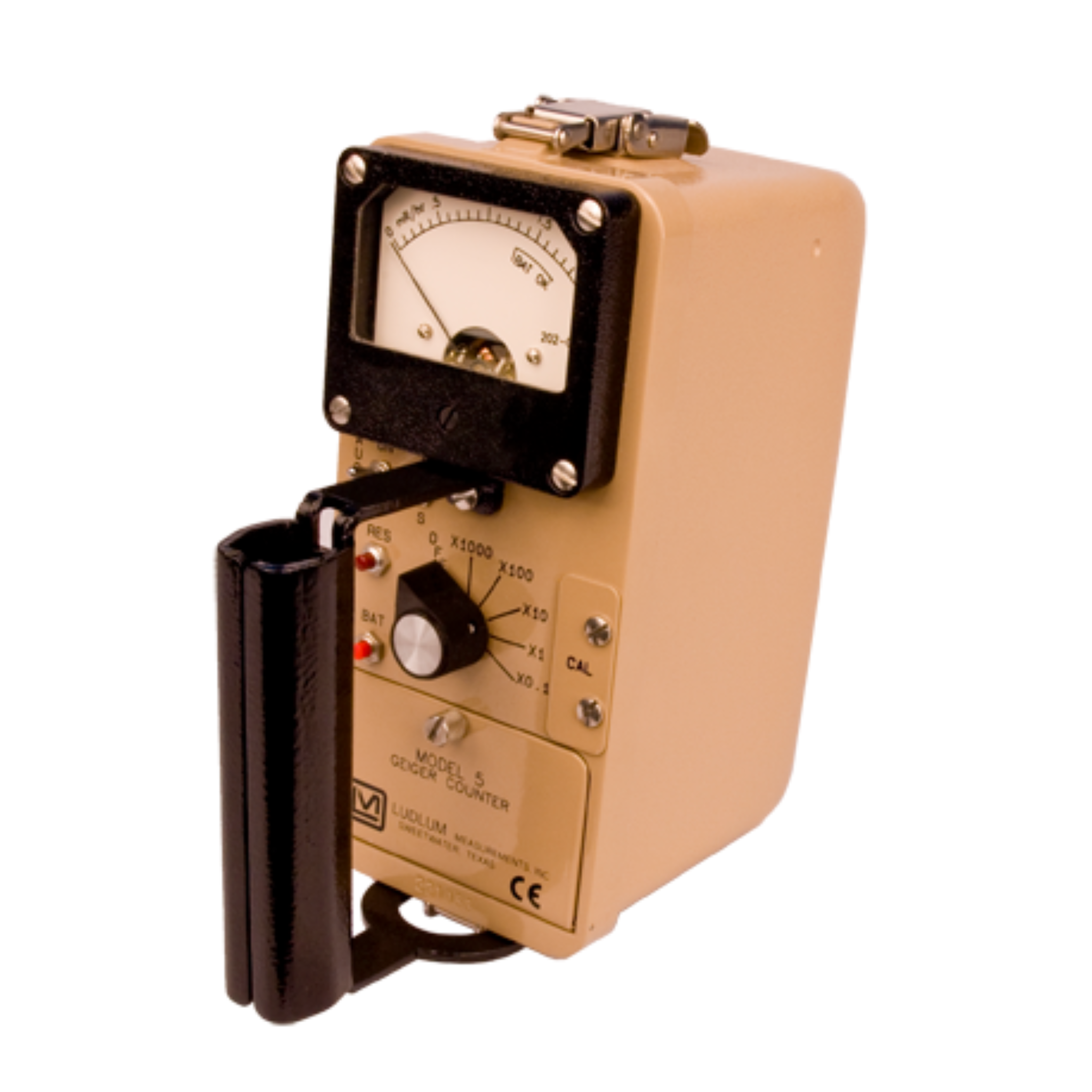

Ludlum Measurements Model 5 Geiger Counter

Available for rental/hire from Ashtead Technology - Ludlum Measurements Model 5 Geiger Counter

Add to basket Enquire now Datasheet Download

The Model 5 is a gamma exposure ratemeter equipped with two internally housed, energy-compensated GM detectors that measure over the range of 0 to 20 mSv/h (0 to 2000 mR/hr). The cast aluminium instrument housing with its separate battery compartment and accompanying metal handle offer an industrial robustness and quality that promote long lasting protection and instrument life. The front-panel controls include a rotary switch for selecting the five display ranges and instrument shut-off, an audio on/off switch, a fast/slow response switch, and push-buttons for count reset and battery test. The Model 5 is a complete turn-key system and includes two "D" cell batteries.

  • Range: 0 to 20 mSv/h (0 to 2000 mR/hr)
  • Energy compensated GM detectors
  • Rugged
  • 5-Range analog ratemeter
