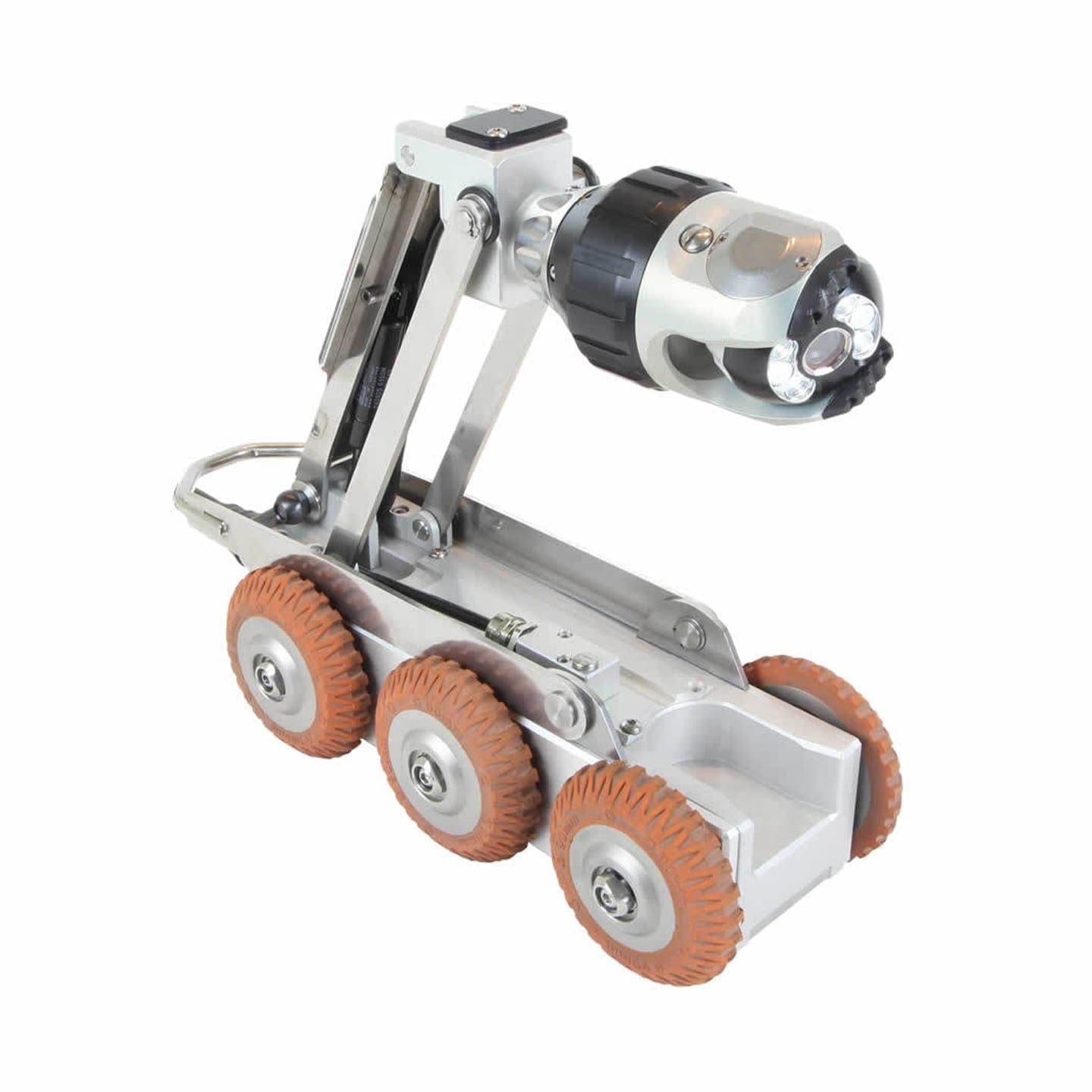

Mini-Cam Proteus Crawler Camera

Available for rental/hire from Ashtead Technology - the Mini-Cam Proteus Crawler Camera.

Add to basket Enquire now Datasheet Download

Suitable for pipe sizes from 150mm, the Mini-Cam Proteus Crawler Camera is capable of travelling up to 200m via the manual cable reel and is able to perform detailed visual inspections thanks to the 360° Pan & Rotate, Forward and Rear Facing Camera Heads.

With a steerable 6-wheel drive, the Proteus system is robust, lightweight, durable and able to operate in harsh working conditions.

Providing high resolution, colour JPEG images and MPEG videos, the Proteus operates with a 360° Pan & Rotate camera head which has endless rotation and +/- 135º panning range.

The crawler body also has a manual extension arm which raises the camera about 120mm from its usual position. This extension arm is not motorised and so needs to be manually set prior to the crawler being deployed.

The manual reel for the Proteus is equipped with a maximum 200m cable (please contact us to confirm the length as this can vary between our rental systems). The reel features a cable layering mechanism, a meterage wheel, a manual winding arm and a friction brake.

  • Pipe size from 150mm diameter
  • Cable length up to 200m
  • Camera 360° pan & rotate
  • ALB300 auxiliary lights / back eye
  • CCU 208 digital control unit, highly portable
  • Records images and video
  • In-built recording
  • Drain inspection
  • Pipeline inspection
  • CCTV surveys
  • Tank, void, cavity or conduit inspection
