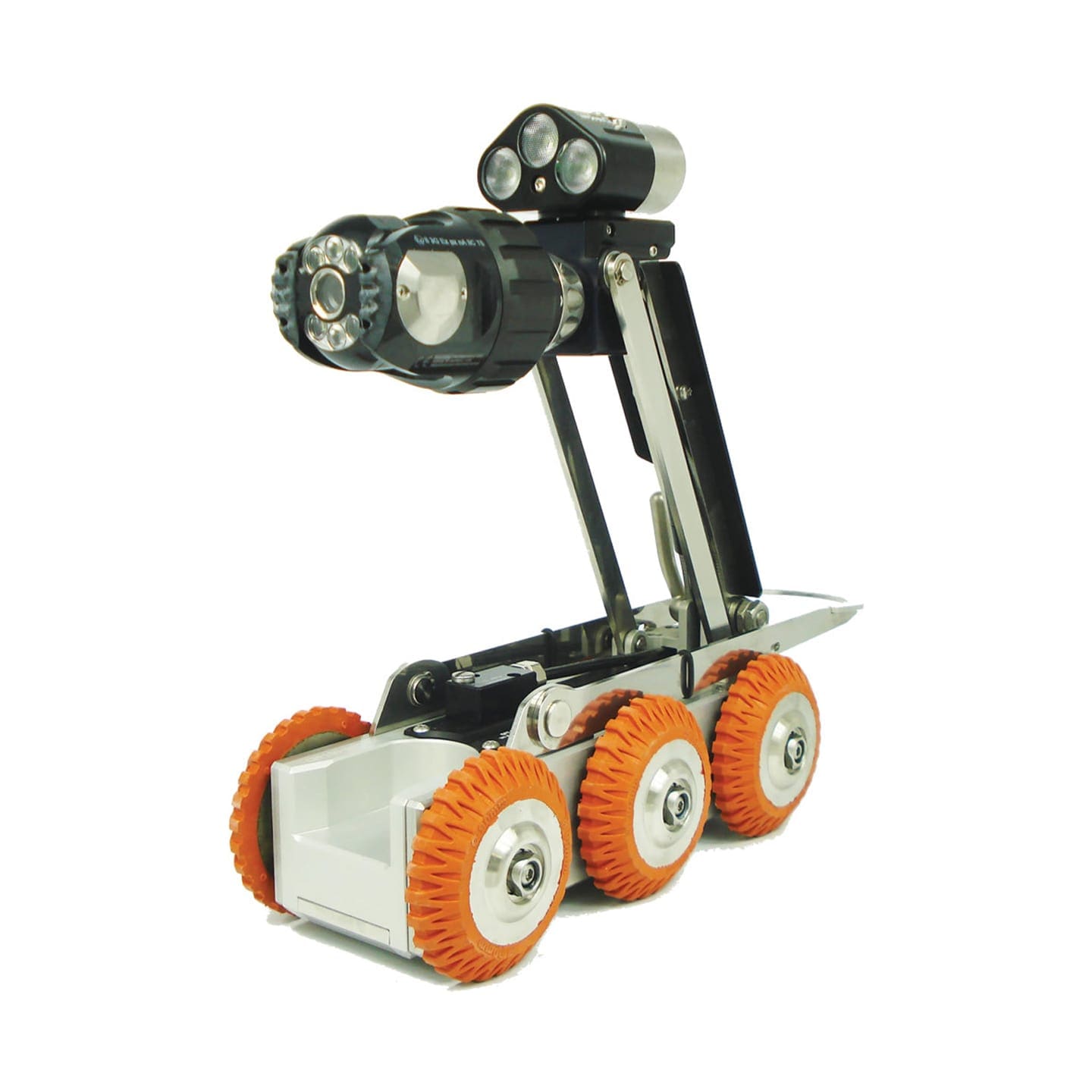

Mini-Cam Proteus CRP150 EX Crawler Camera - ATEX Zone 2

Available for rental/hire from Ashtead Technology - the Mini-Cam Proteus CRP150 EX Crawler Camera - ATEX Zone 2.

Add to basket Enquire now Datasheet Download

Certified for use in Zone 2 environments, the MiniCam Proteus CRP150 EX is suitable for pipe diameters from 150mm, has a pan & rotate camera head and rents with a manual cable reel containing up to 200m of cable.

The MiniCam Proteus EX utilises all of the same features and functionality of a standard Proteus system, however the EX rating certifies the Proteus EX for use in Zone 2 environments. Further information on working in EX environments can be found on the HSE website.

Capable of recording images and videos, the MiniCam Proteus EX rents with a CAM026EX Pan & Tilt Camera. The pan & tilt camera head has a 360º endless rotation and has a +/- 135º panning range, which allows you to fully inspect your pipeline without limitations. The camera is further supported by built in LED lights and Auxiliary Light module with back-eye camera.

For crawler operation, the MiniCam Proteus EX rents with the CCU208EX control unit. The joystick allows you to easily manoeuvre the crawler body and camera head to the required location. From the control unit, you can take images and record videos of your inspection. This data can then be exported via USB or collated and annotated in the reporting module.

  • ATEX rating zone 2
  • Pipe size from 150mm diameter
  • Cable length up to 200m
  • Pan & rotate camera - 360 endless rotation and ±135°
  • Control unit: Proteus 208EX CCU, ProPipe Software, Internal Data Storage + easy data transfer via USB
  • Records images and video
  • In-built recording
  • Drain & pipe inspection in potentially explosive environments (Zone 2)
  • Drain inspection
  • Pipeline inspection
  • CCTV surveys
  • Tank, void, cavity or conduit inspection
