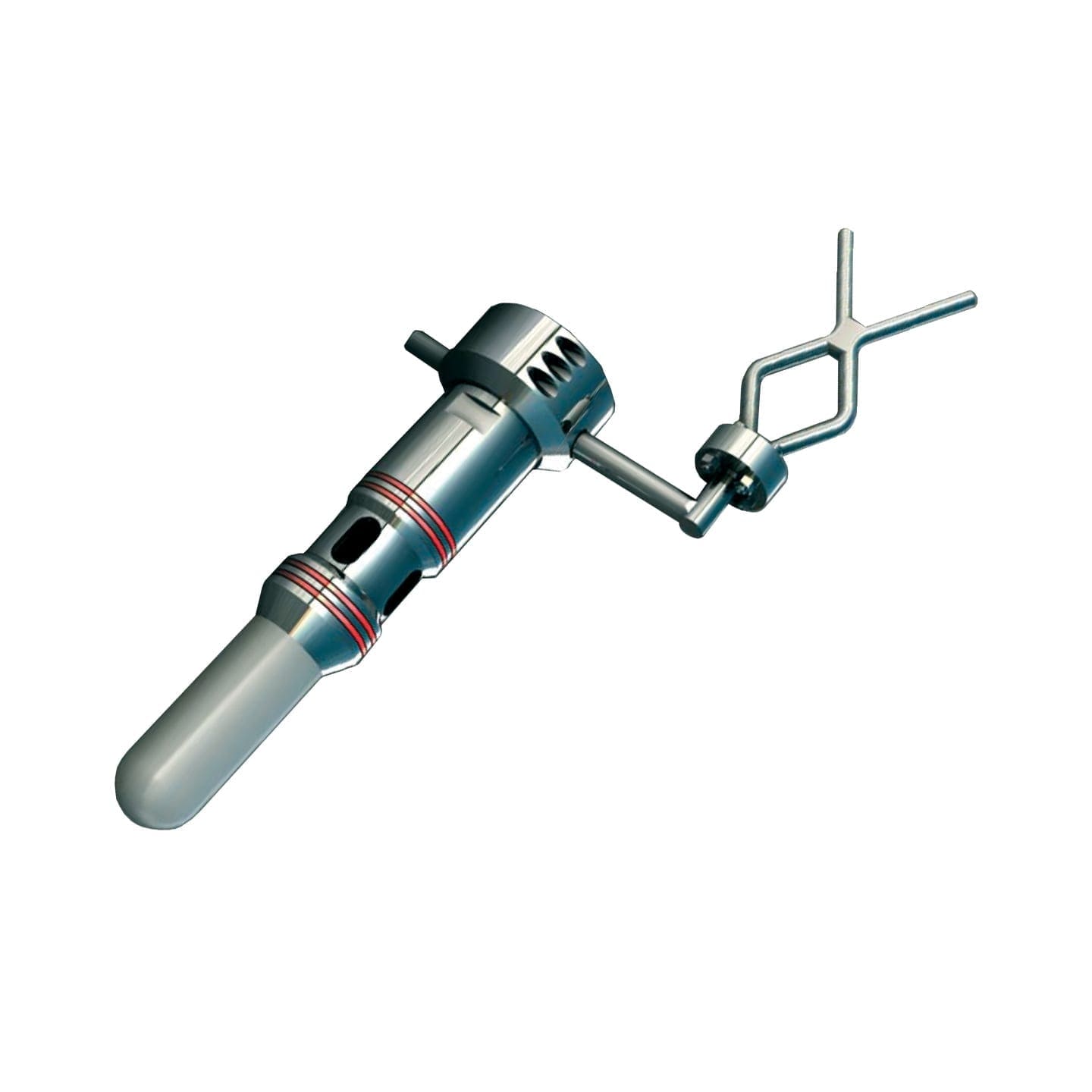

Moffat Subsea Stab Connector

Available for rental/hire from Ashtead Technology - the Moffat Subsea Stab Connector.

Add to basket Enquire now Datasheet Download

The moffat subsea stab connector is a compact, light and cost-effective connector that allows a hose to be connected / disconnected subsea. The product has been in service since 1995 and has been refined and developed up until the present day as the demands of the subsea market have increased. It is now recognised by many operators as an industry standard item for subsea pigging, chemical injection, gas injection, flooding and venting operations.

Hose-end connections include: female hammer-lug union (fig. 1502, 602, 206, etc.), flanged (API 6A or ANSI), hub or female threaded (NPT, BSP or Autoclave).

  • Industry standard
  • ISO 10423
  • Up to 3,500lpm / 924.6gpm
  • 414bar / 6,000psi
  • 50mm / 2in nominal bore
  • 3000m depth rated
  • Subsea QD operations
  • Chemical injection
  • Gas injection
  • Flooding & venting operations
  • Subsea pigging
