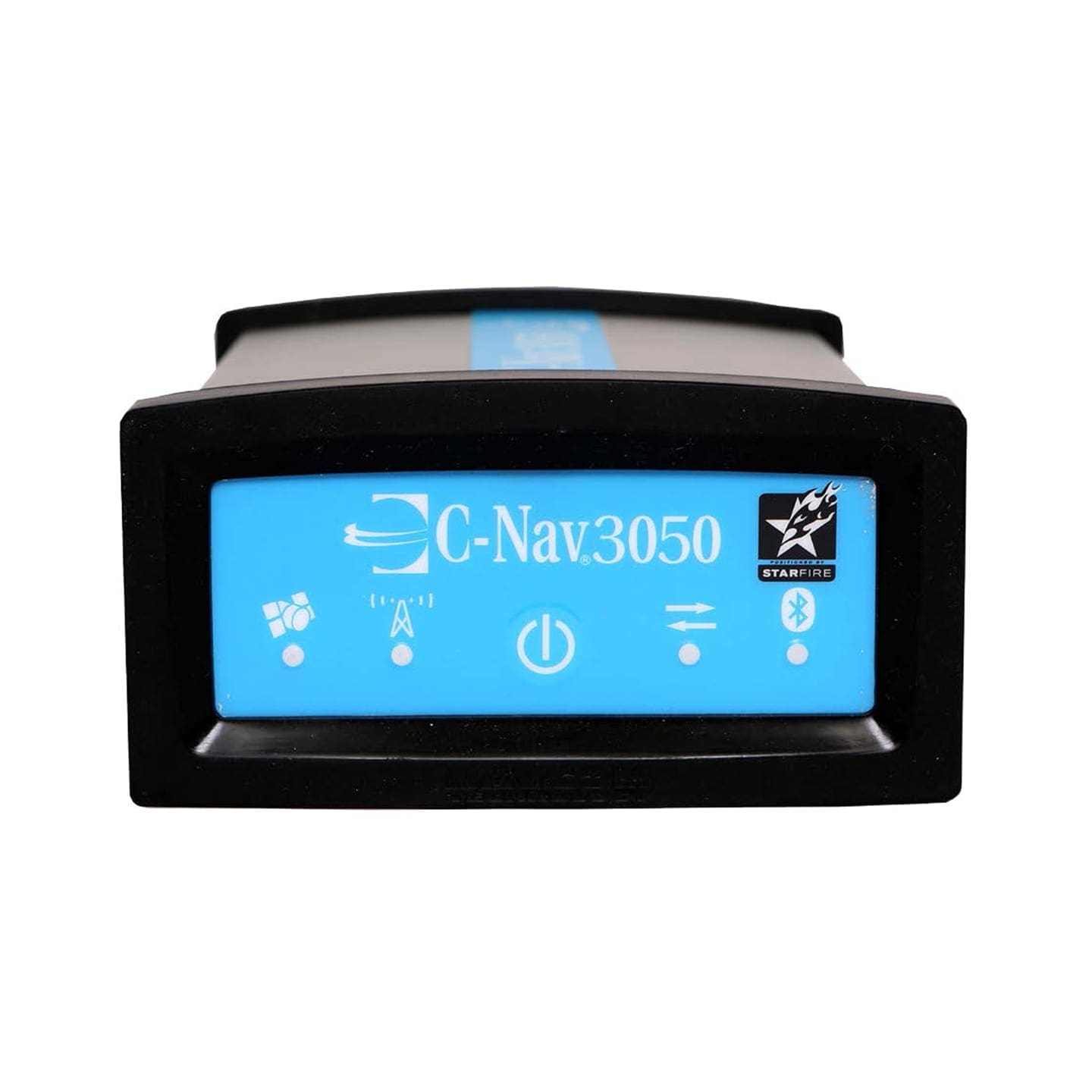

Oceaneering C-Nav 3050

Available for rental/hire from Ashtead Technology - the Oceaneering C-Nav 3050.

Add to basket Enquire now Datasheet Download

The C-Nav3050 global navigation satellite system (GNSS) receiver provides 66-channel tracking with multi-constellation support for GPS, GLONASS, C-Nav™, and SBAS (WAAS/EGNOS) signals, and accepts external RTCM input corrections via the internet.

A choice of data rates makes corrections via the CSS over-the-internet (OTI) delivery option a practical solution for reception at higher latitudes and in shadow zones.

  • All-in-view parallel tracking with 66-channels
  • Satellite-based augmentation system (SBAS) tracking (WAAS / EGNOS / MSAS / GAGAN)
  • Built-in C-NavC1® and C-NavC2® L-Band receiver
  • C-NavC2® operating mode with automatic failsafe to C-NavC1®
  • C/A, P1, P2, L2C, L5, G1, and G2 code tracking
  • L1, L2, L5, G1 and G2 full wavelength carrier phase tracking
  • C-Nav corrections over Internet
  • High-sensitivity / low-signal level tracking
  • Fast signal acquisition / re-acquisition
  • Superior interference suppression (both in- and out-of-band) using custom tuned antennas
  • Patented multipath rejection » RTK Extend™
  • C-Nav over-the-air activation capabilities
  • Configurable as real time kinematic (RTK) base or rover
  • Programmable output rates
  • Event marker input / 1 pulse-per-second (PPS) output
  • 2GB internal data storage
  • C-Setup PC control software included
