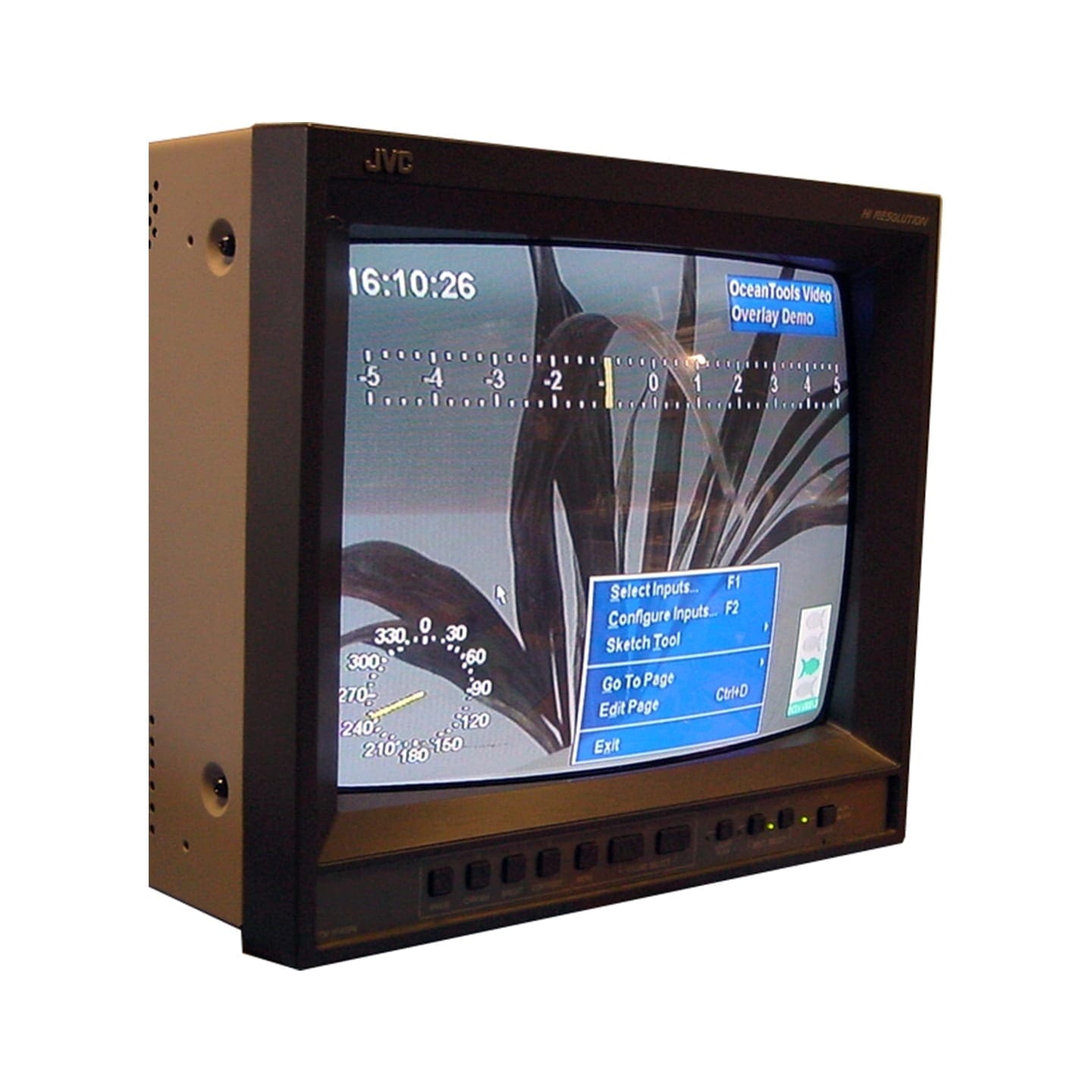

OceanTools V04 Overlay

Available for rental/hire from Ashtead Technology - the OceanTools V04 Overlay.

Add to basket Enquire now Datasheet Download

The advanced and innovative V04-W Video Overlay is based on the industry-standard V04 and VO1 units, but now include an advanced Windows-based user interface, offering full colour text and graphics rather than just the black and white text found on older units.

User inputs such as heading, depth, pitch, roll, altitude, pressures and temperatures may all be displayed on the overlay in text and graphical formats using the library of built-in gauges. Along with this data, any survey derived serial data including GPS inputs, your logo, your client's logo may all be displayed in user sizeable boxes with variable sized fonts and thousands of colours. Serial data compatability with older video overlay systems, including the 'Lann' models.

  • Available with 1, 2, 3 or 4 video channels
  • Optional integral CP isolation amplifier
  • Optional mutli-channel analogue inputs
  • PAL or NTSC composite inputs and outputs
  • Graphical representation of serial data
  • Libraries of dials, gauges, heading indicators, etc
  • Displays multiple colour logos
  • Built-in support for many survey products
  • Time, date, user-text all plotted on-screen
  • Sketch tools for highlighting items of interest
