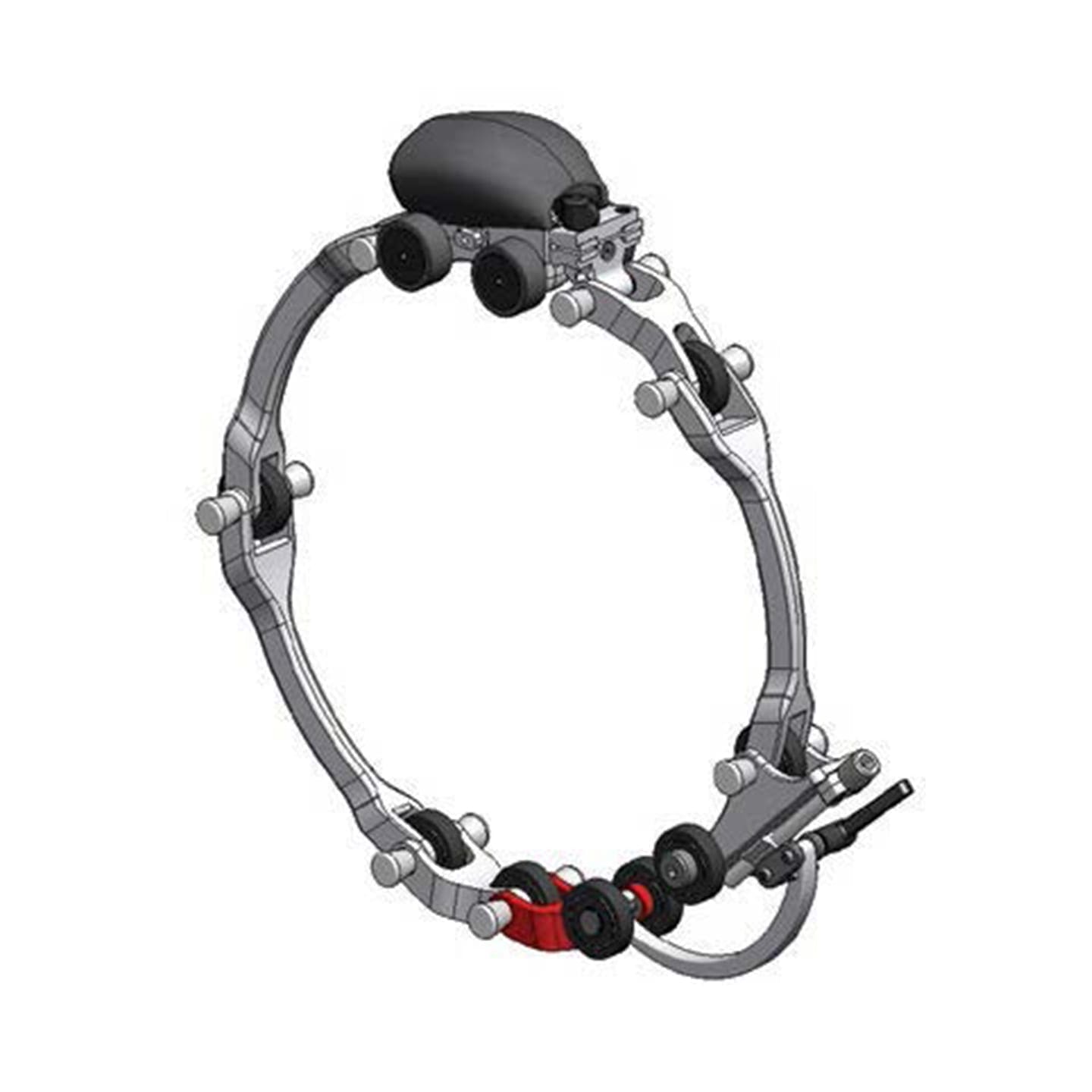

Olympus Chain Scanner

Available for rental/hire from Ashtead Technology - the Olympus Chain Scanner.

Add to basket Enquire now Datasheet Download

The ChainSCANNER provides a manual pipe-inspection solution for pipes ranging from 45 mm to 965 mm OD (1.75 to 38 in. OD). The scanner, held by chain links instead of magnetic wheels, is well suited for weld or corrosion inspection on various material types, using UT, TOFD, and PA technologies.

The ChainSCANNER facilitates the manual inspection of pipes with outside diameters of 45 mm to 965 mm (1.75 in. to 38 in.), offering the possibility for two-axis encoding. The scanner, which is held by chain links instead of magnetic wheels, is able to inspect ferromagnetic or nonferromagnetic surfaces. The chain links also help ensure a straight displacement of the scanner by eliminating steering problems. Finally, it is useful when the area around the pipe is difficult to access as the scanner can be rotated around the pipe using the chain links.

  • Techniques: Conventional, Phased Array, ToFD, Corrosion Mapping
  • Pipe size from: 1.75"
  • Probes: Up to four
  • Replaces or complements full immersion tank and squirter system scanning and provides reliable scanning with A, B and C-scan data
  • Standard configuration using one or two probes, and optional configuration using four probes
  • Circumferential-pipe weld inspections with phased array, TOFD, or conventional UT
  • Corrosion mapping in conjunction with HydroFORM phased array solution
