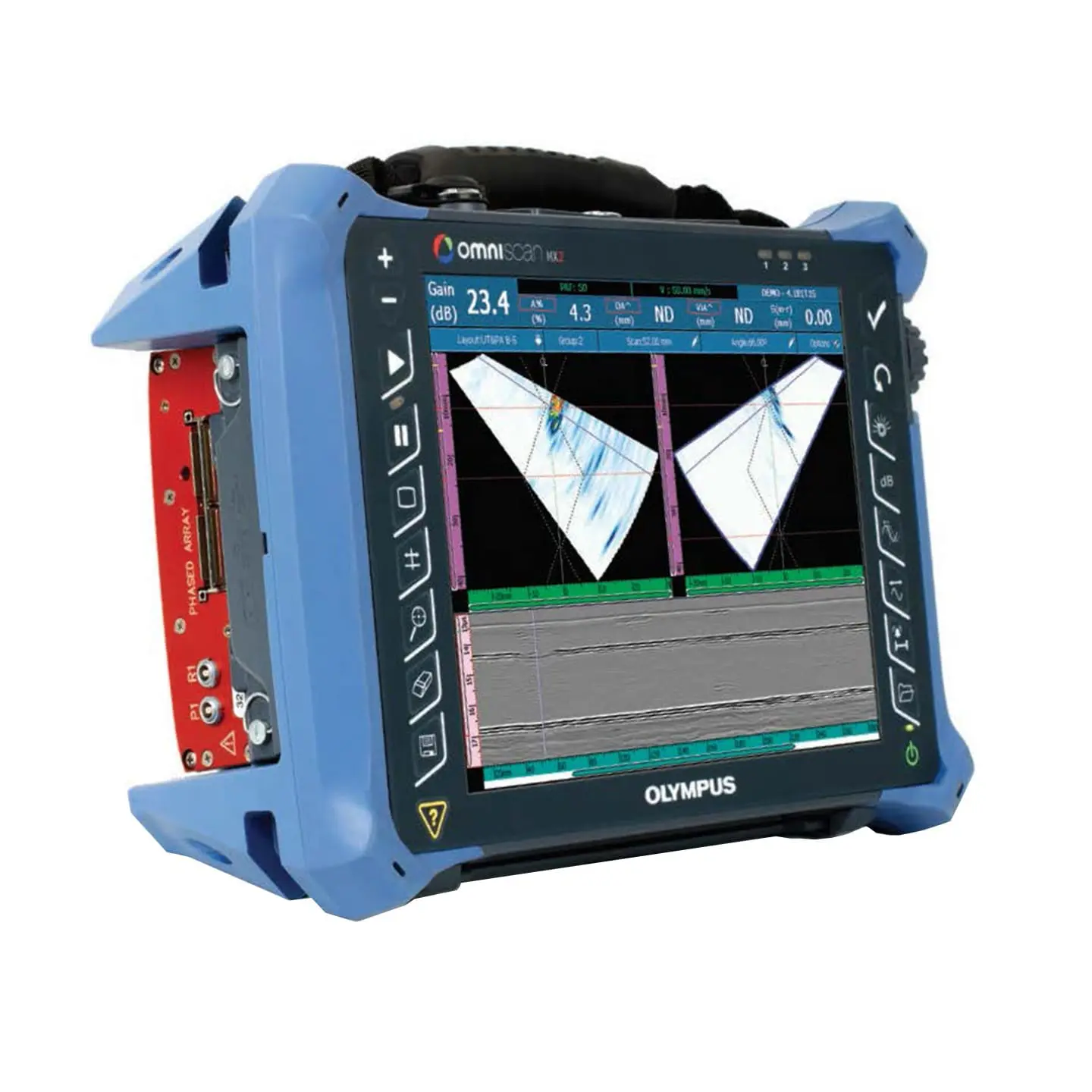

Olympus Omniscan SX-PA Ultrasonic Flaw Detector

Available for rental/hire from Ashtead Technology - the Olympus Omniscan SX-PA Ultrasonic Flaw Detector.

Add to basket Enquire now Datasheet Download

The OmniScan® SX is a flaw detector which benefits from more than 20 years of phased array experience and shares the OmniScan DNA. For improved ease of use, the OmniScan SX features a new streamlined software interface displayed on an 8.4 in. (21.3 cm) touch screen. A single-group and non-modular instrument, the OmniScan SX is easy to operate and cost-effective for less demanding applications.

The OmniScan SX PA is available to rent from Ashtead Technology. The SX PA is a 16:64PR phased array unit (for multiple group applications, see the Omniscan MX2) is ALSO equipped with a conventional UT channel for pulse-echo, pitch-catch or TOFD inspection. Compared to the OmniScan MX2, the SX is 33% lighter and 50% smaller, offering an unprecedented level of portability for an OmniScan.

The OmniScan SX touch screen offers a full-screen mode option that maximizes visibility, essentially converting many menu functions into easy touch-screen operations. The intuitive interface provides smooth menu selection, zooming, gate adjustments, cursor movements, and text and value input. These, along with other premium integrated features, including easy-to-follow setup and calibration Wizards, a rapid refresh rate for both the S-scan and A-scan displays, and a fast pulse repetition frequency (PRF), make the OmniScan SX a highly efficient inspection tool.

The OmniScan SX is fully compatible with the extensive portfolio of Olympus scanners, probes and accessories, as well as with its dedicated software companions, NDT SetupBuilder and OmniPC. Combined, the complete family of software and hardware contributes to a streamlined and efficient inspection workflow, from design and setup to acquisition and analysis.

The Omniscan SX unit comes supplied with 2 fully charged batteries and can be rented either on its own (to be used with your own probes and accessories) or with a range of probe and scanner kits which may be rented in a modular format. These include TOFD, Hydroform and Rexoform kits, together with chain scanners and glide scanners. Each of these kits has a range of accessories to suit most applications. Other probes and scanners may be available on request – please contact us for details.

  • Aperture: 16
  • Number of elements: 64
  • A streamlined software interface displayed on an 8.4 in. (21.3 cm) touch screen
  • Single-group and non-modular
  • Full-screen mode maximises visibility
  • 33% lighter and 50% smaller than MX2 model
  • Easy-to-follow setup and calibration wizards
  • Rapid refresh rate for the S-scan and A-scan displays
  • Fully compatible with the extensive portfolio of Olympus scanners, probes, accessories and software
  • Phased array weld inspection
  • ToFD weld inspection
  • P/E weld inspection
  • General component inspection
  • Pressure vessel inspection
  • Composite inspection
  • Corrosion mapping inspection
  • Single group inspection
