Pearpoint P571 EX Push Rod Camera - ATEX Zone 1

Available for rental/hire from Ashtead Technology - the Pearpoint P571 EX Push Rod Camera - ATEX Zone 1.

Add to basket Enquire now Datasheet Download

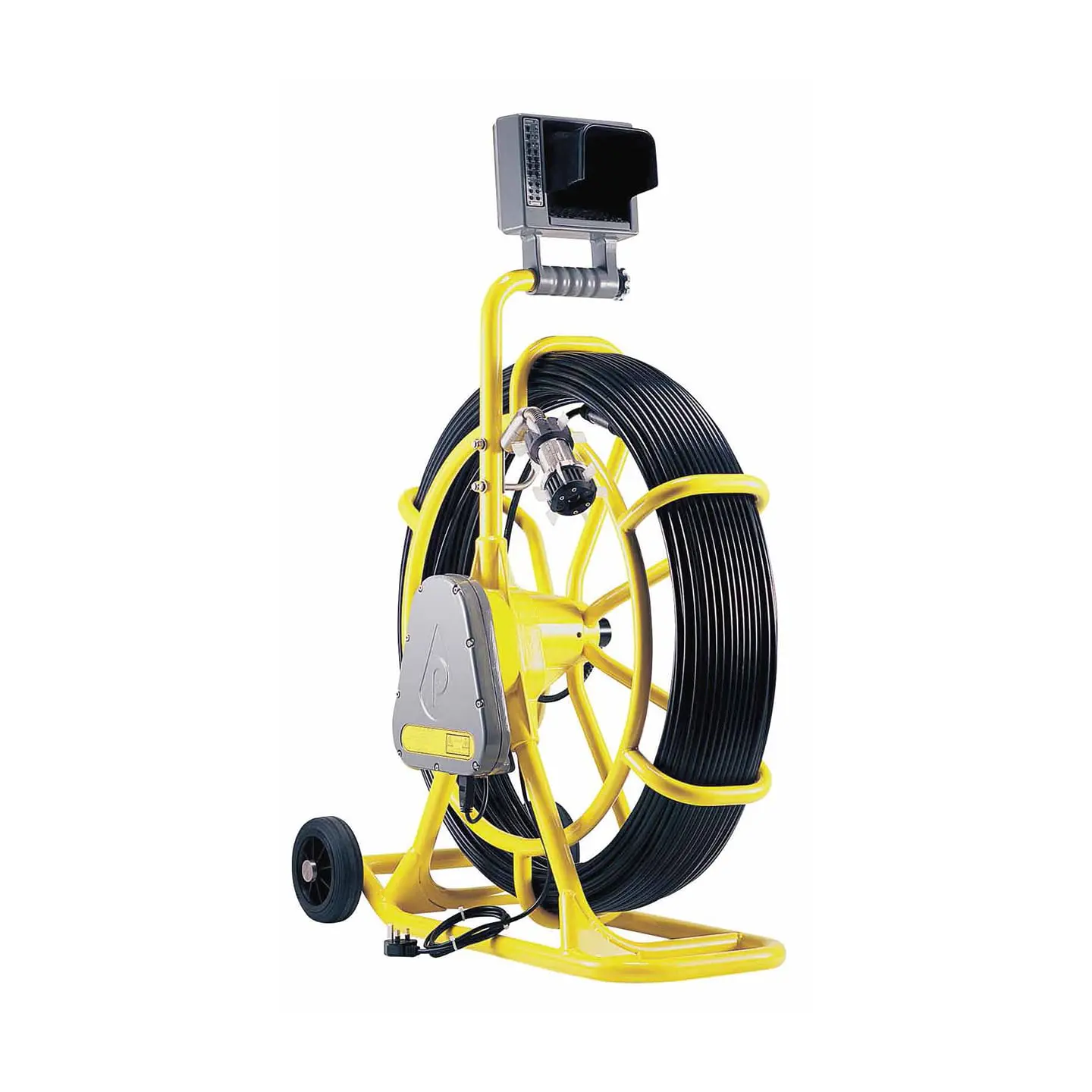

The Pearpoint P571 is an explosion proof Push Rod Camera suitable for pipes from 76mm and is capable of travelling up to 150m via the reinforced cable.

Explosion proof to EEx d IIB T3 Zone 1, the Pearpoint P571 rents with the P455 self-levelling camera head which offers front and side view reporting.

The integrated control unit features a 5.6 inch-colour monitor and easy to use QWERTY keypad. Built-in recording isn’t available with Pearpoint P571; however you can rent a HD DVR for applications that require image and video reporting.

  • Pipe size: from 76mm diameter
  • Cable length: up to 125m
  • Explosion Proof: EEx d IIB T3 (Zone 1)
  • Camera: Forward & Side Facing, Self-Levelling
  • Control unit: LCD Colour Control Unit
  • Reporting: Images and Videos
  • DVR required: Yes
  • Drain & pipe inspection in potentially explosive environments (Zone 1)
  • Drain inspection
  • Pipeline inspection
  • CCTV surveys
  • Tank, void, cavity or conduit inspection
