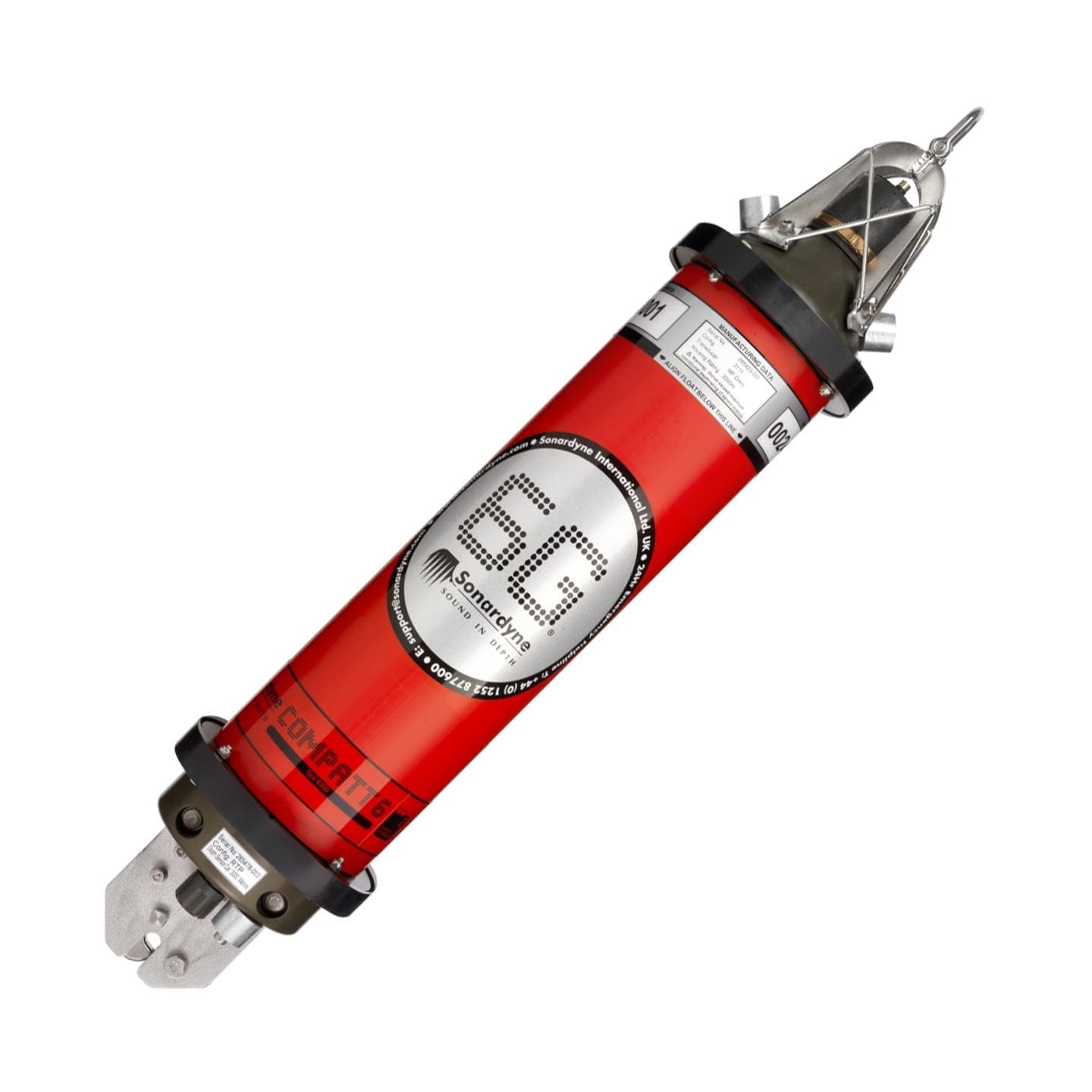

Sonardyne 6G Midi USBL & LBL Transponder and Modem

Available for rental/hire from Ashtead Technology - the Sonardyne 6G Midi USBL & LBL Transponder and Modem.

Add to basket Enquire now Datasheet Download

Compatt 6 Midi shares many of the same features and acoustic output capabilities of a Compatt 6 Standard but is offered with a small, long life Lithium battery pack and shorter length housing. The design lends itself well to acoustic metrology campaigns where the shorter length and optional integrated inclinometer, reduces the lever arm and therefore errors for offsetting transducer-to-endcap. Compatt 6 Midi is available with a wide range of integrated sensors and bottom endcap options including; acoustic release, sound velocity and inclionmeter.

  • MF frequency band utilising Sonardyne Wideband 2 ranging and telemetry protocols
  • Faster and easier to set-up, calibrate and operate
  • More robust performance in shallow water and reverberant environments around structures etc
  • Real time diagnostics available on ranges to enable quality control
  • Reduced mutual interference to further improve simultaneous ops
  • Advanced multi-user / multi-vessel capability
  • More than 500 unique Sonardyne Wideband 1 and 2 addresses
  • Sonardyne Wideband 1 and HPR 400 navigation compatible
  • Automatic power-down if not used for a programmable period
  • Integrated modem mode with data rates ranging from 100 to 9000 bits per second in multiple frequency bands
  • Highly reliable release mechanism
  • Omni or directional transducer
  • Standard sensors – temperature, pressure and MEMS inclinometer
  • Optional sensors – Paroscientific DigiQuartz pressure sensor, inclinometer and sound velocity
  • Battery disconnect fob allows quick battery disconnection.
  • Field proven
  • Long baseline positioning
  • Spool piece metrology
  • Pipeline lay-down
  • Subsea structure placement
