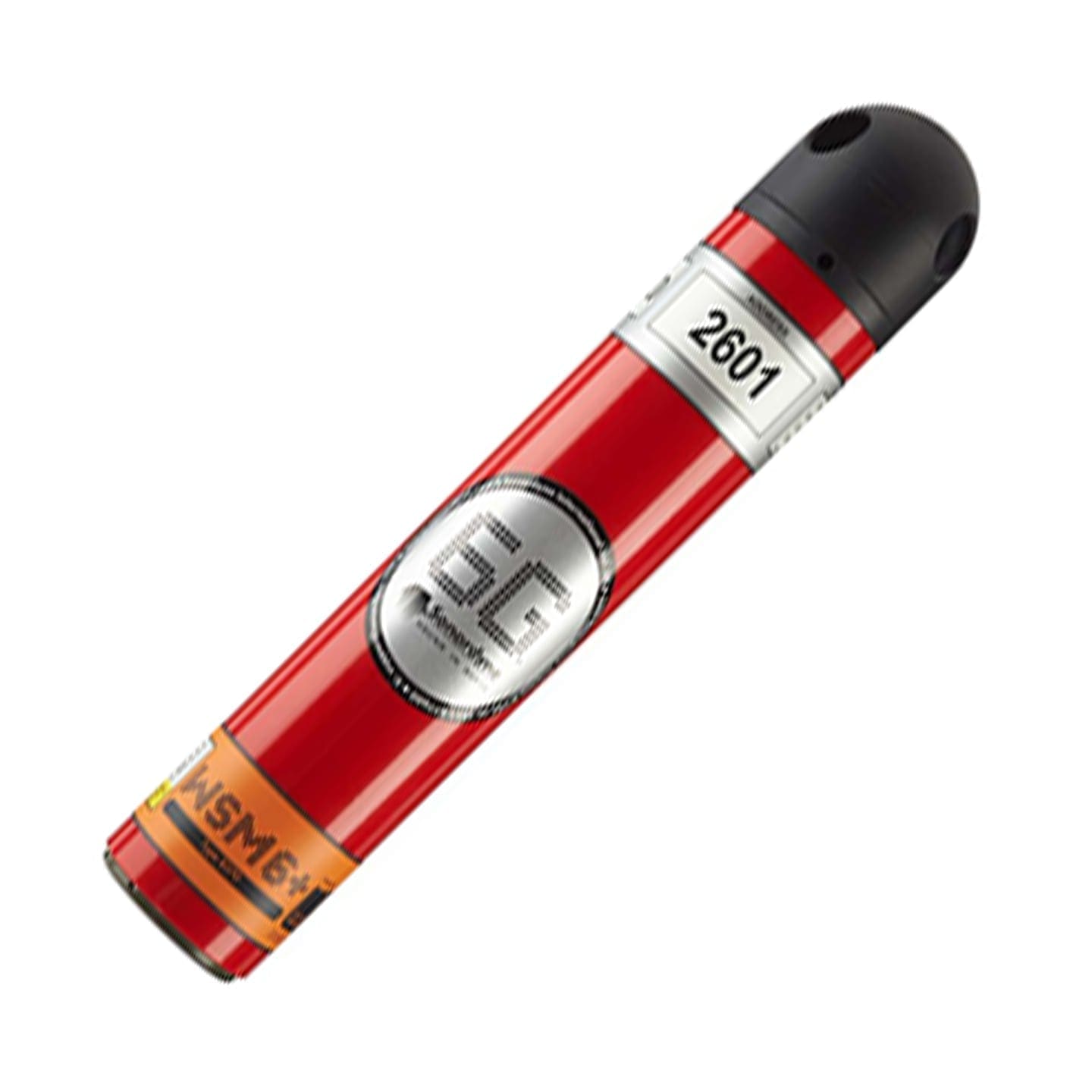

Sonardyne 6G Wideband Sub-Mini 6 (WSM 6+) Type 8370-1111

Available for rental/hire from Ashtead Technology - the Sonardyne 6G Wideband Sub-Mini 6 (WSM 6+) Type 8370-1111.

Add to basket Enquire now Datasheet Download

The Wideband Sub-Mini 6 Plus (WSM 6+) is Sonardyne’s latest generation of versatile USBL transponders/responders that support WBv2 signals. The WSM 6+ is designed for towfish and ROV positioning, and tracking other mobile targets in water depths up to 4,000 metres.

The compact and rugged design is based on the field proven WSM mechanics and is available in MF Directional and MF Omni-Directional versions. The latest Sonardyne Wideband®2 signal technology has been incorporated, which offers superior ranging accuracy and fast USBL position updates.

The WSM 6+ improves on its predecessors by offering full two-way Wideband support – interrogation and reply signals. All Wideband V2 and V2+ signals are supported. Legacy support is also available for WBV1 and HPR 400. The configuration is programmable using supplied software and a serial link or it can be configured acoustically via iWand. This allows the WSM 6+ to be configured for use with all of the popular MF frequency acoustic navigation systems.

The Type 8370-1111 WSM 6+ is equipped with an Omni-directional transducer and is depth rated to 1,000 metres making it suitable for a wide range of general USBL tracking applications. A depth sensor fitted as standard to aid USBL positioning accuracy and an external on/off switch to save the battery when not in use.

WSM 6+ variants are available with acoustically controlled output lines suitable for external motor drive, burnwire or contact closure releases.

  • Full two-way Sonardyne Wideband 2 interrogation and reply – mitigates interference and multi-path issues
  • More than 500 unique Sonardyne Wideband 1 and 2 addresses
  • Sonardyne Wideband 1 and HPR 400 navigation compatible
  • Choice of 1,000 m or 4,000 m depth rating
  • Choice of Omni-Directional or Directional beam-shape
  • Transponder or Responder operating modes
  • Depth sensor for improved USBL positioning performance
  • Rechargeable NiMH battery
  • External on/off switch for saving battery when not in use
  • Compact and rugged design
  • Release variants available
  • Subsea vehicle tracking – ROV/towfish/crane wire
  • Tether Management Systems (TMS)
