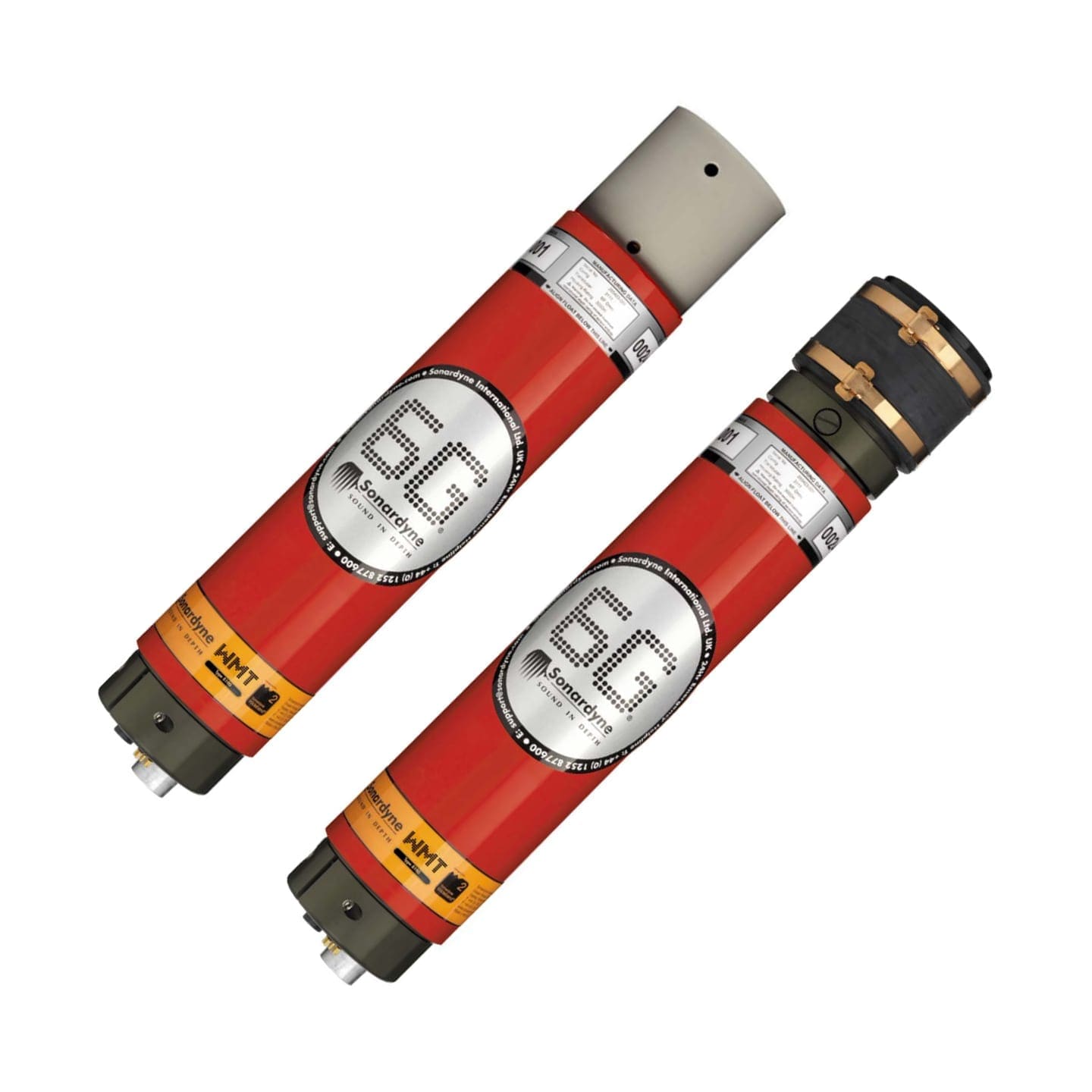

Sonardyne 8190-3112 Wideband Mini Transponder WMT Semi

Available for rental/hire from Ashtead Technology - the Sonardyne 8190-3112 Wideband Mini Transponder WMT Semi.

Add to basket Enquire now Datasheet Download

Sonardyne’s existing Wideband SubMini transponder (WSM) is typically interrogated by a responder trigger sent down the ROVs’ umbilical or a narrow band tone signal. In some situations, reverberation or multipath of the tone interrogation can cause interference problems. The WMT is Sonardyne’s first mini-sized transponder. It is slightly larger than the WSM and provides full two-way Wideband interrogation and reply which completely mitigates interference from and to other users.

For use on ROVs, the WMT includes responder trigger, an integrated rechargeable Li-ion battery pack that is charged from the ROV’s power supply and full RS232 communications enabling channel set up, power and gain etc. to be changed from the surface.

The WMT is available in three depth versions: 3,000 m, 5,000 m and 7,000 m. The 5000 m and 7,000 m versions have a higher acoustic output power level for improved long range operation. An On/Off switch (3,000 m only) helps to ensure that the internal battery is not discharged when not in use. If an umbilical trigger is not available, then the full Wideband transponder mode provides excellent USBL performance from a small, lightweight package.

Remote omni or directional transducers are available for both the WMT and existing WSM range. These make installation on an ROV easier as the remote transducer can be installed where there is good lineof-sight and is easily replaced if damaged.

The main body of the transponder can be installed within the ROV frame where it is well protected from damage.

  • Full two-way Sonardyne Wideband®2 interrogation and reply – mitigates any interference and multi-path issues
  • Mini size – lightweight and small
  • Responder mode
  • Li-ion rechargeable battery pack
  • Optional remote transducer (3,000 m only)
  • Pressure sensor fitted as standard
  • Full RS232 control from the surface
  • External On/Off switch (3,000 m only)
  • Field proven
