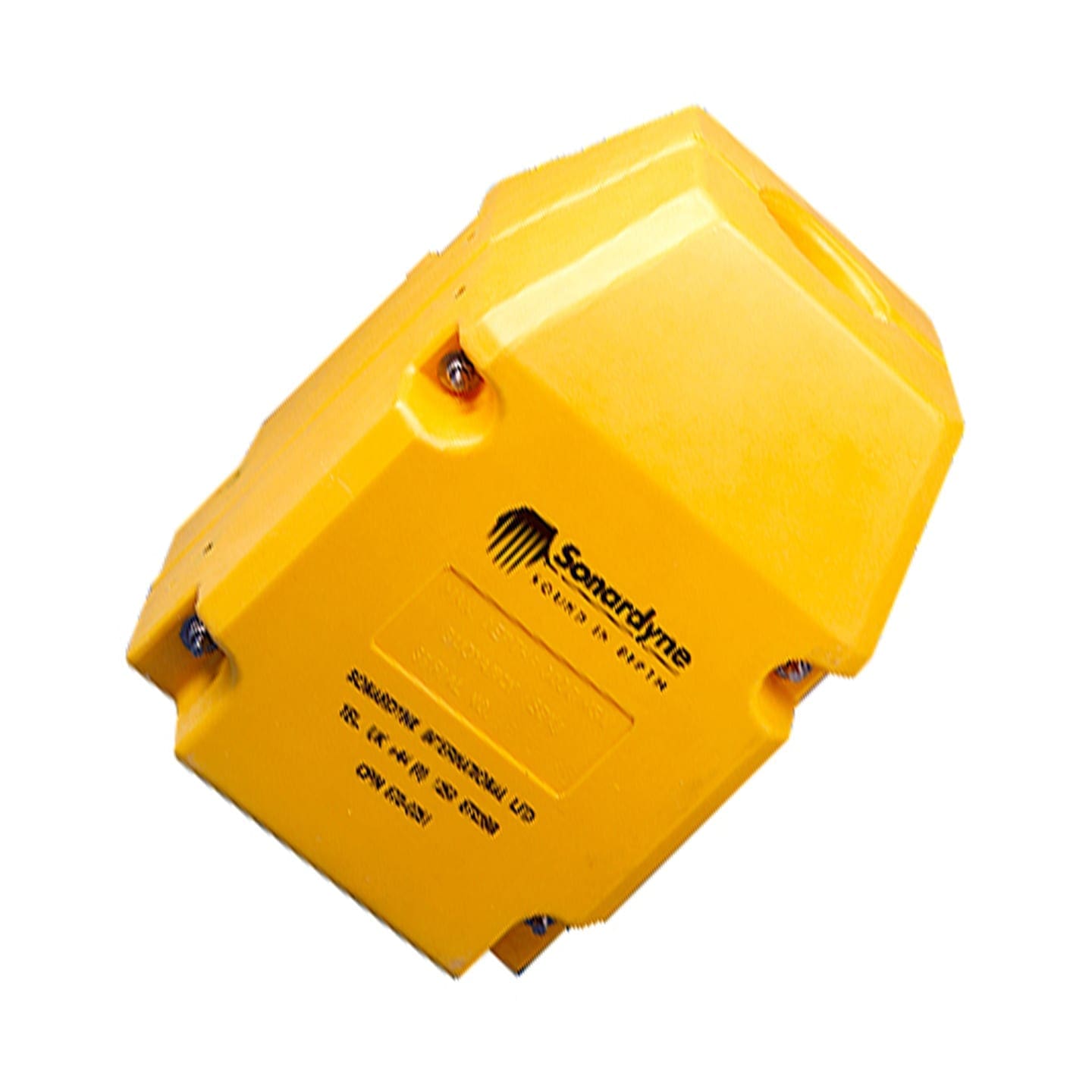

Sonardyne Flotation Collar 5000m

Available for rental/hire from Ashtead Technology - the Sonardyne Flotation Collar 5000m.

Add to basket Enquire now Datasheet Download

Our range of subsea floatation collars enable acoustic navigation and positioning transponders to be deployed, moored on the seabed and then recovered to the surface.

The floats are compatible with all our latest generation Compatt 6, AMT 6 and DPT 6 Wideband transponders as well as previous generation Mk 5 Compatts. They can be used with directional and omni-directional transducer types.

Manufactured from high performance materials appropriate to the required depth rating, each float assembly comes in two halves and is clamped around the transponder using stainless steel fixings made of super duplex stainless steel.

Bright colours make sure good visibility, either when subsea and viewed from an ROV’s camera or when floating on the surface prior to recovery.

Once on the surface, the floatation collar is designed so the transponder floats in a downward position ensuring the acoustic transducer is kept submerged.

This can assist with relocating the transponder using a vessel-based acoustic positioning system and also protects the acoustic transducer during recovery.

  • Manufactured from syntactic foam core encapsulated within a high visibility polyurethane elastomer coating
  • Compatible with Sonardyne Compatt 6, DPT and Mk5 Compatt transponders
  • Lifting eyelet inserts incorporated to ease transponder deployment and recovery
  • Designed to stack, not roll, on vessel deck
  • 5000m depth rating
