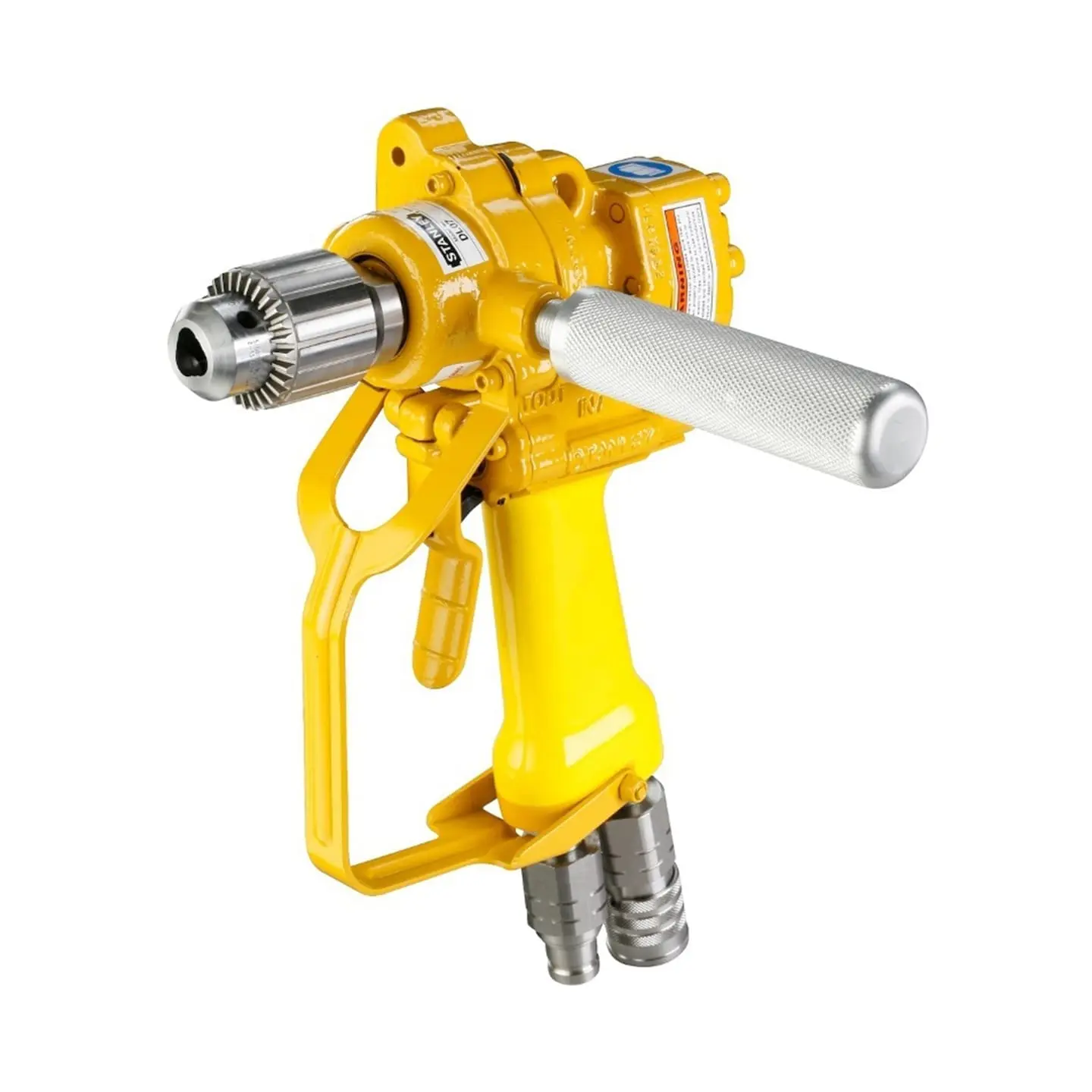

Stanley DL07 Underwater Drill

Available for rental/hire from Ashtead Technology - the Stanley DL07 Underwater Drill

Add to basket Enquire now Datasheet Download

The Stanley hydraulic underwater drill DL07 is the ideal underwater tool used by commercial divers for drilling holes in wood, metal and masonry. The Stanley hydraulic underwater drill DL07 features the Stanley Hyrevz gear-type motor. The Stanley hydraulic underwater drill DL07 also features instant reverse for high reliability and efficiency in all types of underwater drilling applications.

The Stanley hydraulic underwater drill DL07 comes furnished with hose whips but no quick disconnect couplers.

Dual-position assist handle on the Stanley underwater hydraulic drill DL07 provides the commercial diver increased control and performance on tough underwater drilling jobs. The over-sized feathering trigger and its insulated handle coating provides better control of drill speed and increased commercial diver comfort, better grip and reduced commercial diver fatigue.

The new over-sized reversing spool of the Stanley hydraulic underwater drill DL07 is protected by heavy-duty wiper seals. These wiper seals clean away dirt as the spool is moved. Dirt cannot get in between the spool and housing bore to create leak-causing scratches. A clean spool always runs in the housing; the dirt is left outside.

The built-in reverse-check valve prevents commercial divers operating the Stanley Hydraulic Underwater Drill DL07 underwater tool when reverse is plumbed to the hydraulic system. Preventing reverse operation ensures a long operating life for the hydraulic seals. Coated with a thick, tough layer of foamed-plastisol, the handle transmits very little heat. The foamed plastisol gives a more comfortable grip to the underwater tool. The forward position of the handle places more of the underwater tool weight on the commercial diver's hand for better balance and control.

  • Integral Stanley Hyrevz gear motor produces high torque
  • Stainless steel spools and fasteners
  • Forward-Reverse with variable speed
  • Dual position assist handle provides increased control
  • Oversized trigger with guard for operator comfort
  • Wiper seals on reversing and trigger spool
  • Built in reverse check valve ensures long seal life
  • Plastisol handle for comfortable ergonomic grip
  • Forward position of handle provides better balance
  • Open centre/closed centre-dual spool feature
  • Cast-in lifting eye
  • Drilling wood
  • Drilling metal
  • Drilling masonry
