Teledyne CDL DiverLevel

Available for rental/ hire from Ashtead Technology - the Teledyne CDL DiverLevel.

Add to basket Enquire now Datasheet Download

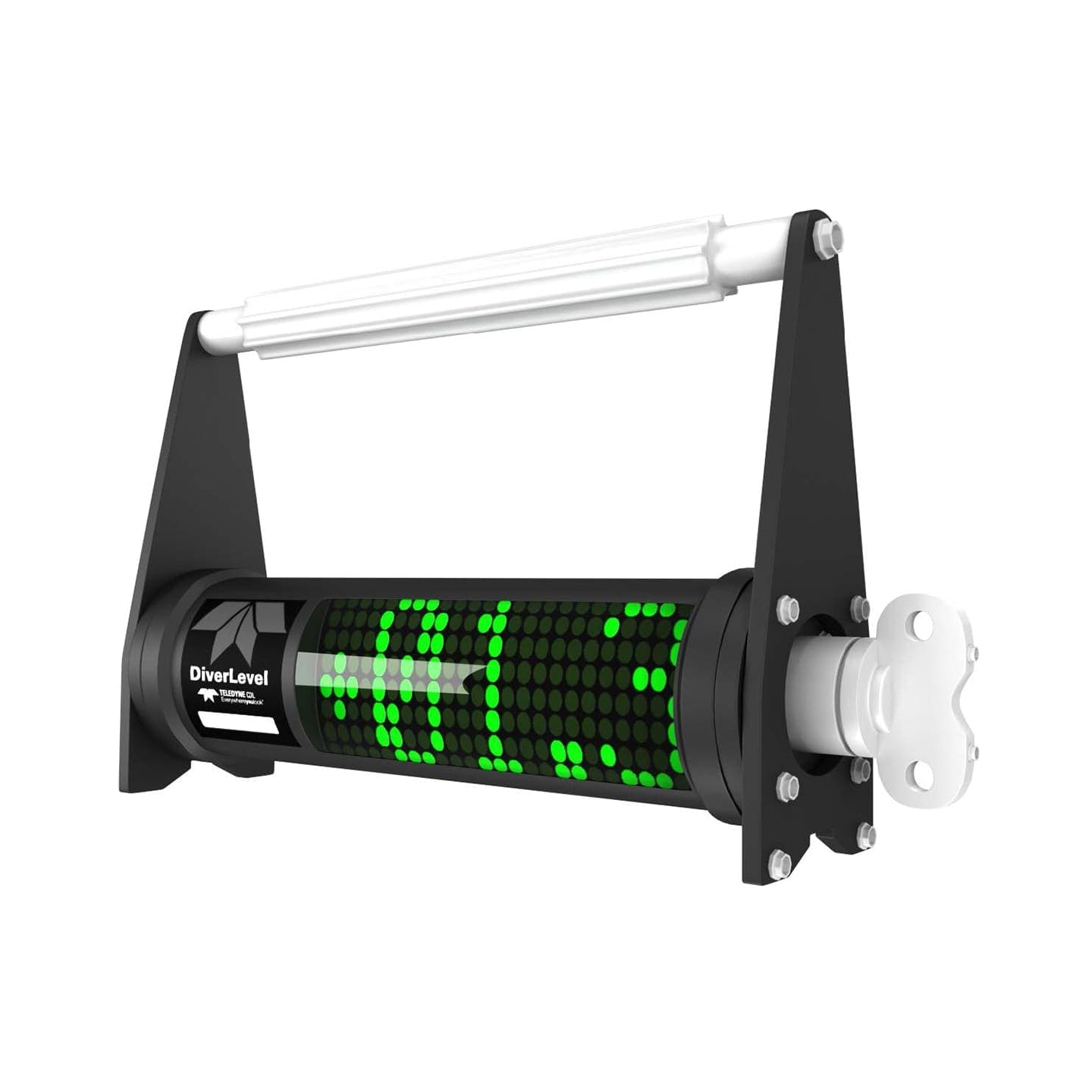

The Teledyne CDL DiverLevel is a highly compact subsea inclination measurement tool for divers with an emphasis on functionality. The simplest solutions are often the best and the DiverLevel combines the technologies of the already successful Teledyne CDL MiniTilt and MiniTXT into a single subsea housing with a built in rechargeable battery pack providing 5 hours of continuous operation.

The single axis inclination readings are shown in the high brightness LED matrix display allowing easy readout of data and a machined ‘V’ block on the base helps in placing the unit on curved surfaces such as anchor chain and pipes. The system can also be easily configured to a vertical or horizontal 0 value depending on the task in hand.

The large diameter rigid carrying handle allows easy subsea transportation and installation by gloved hand and the oversized on/off magnetic switch allows power to be disabled easily during the dive to preserve battery life.

  • Full 360 deg range
  • Accuracy of 0.1 deg
  • Low cost
  • Light Weight design
  • Up to 300m depth
  • Fast re-charge battery pack (2 Hours)
