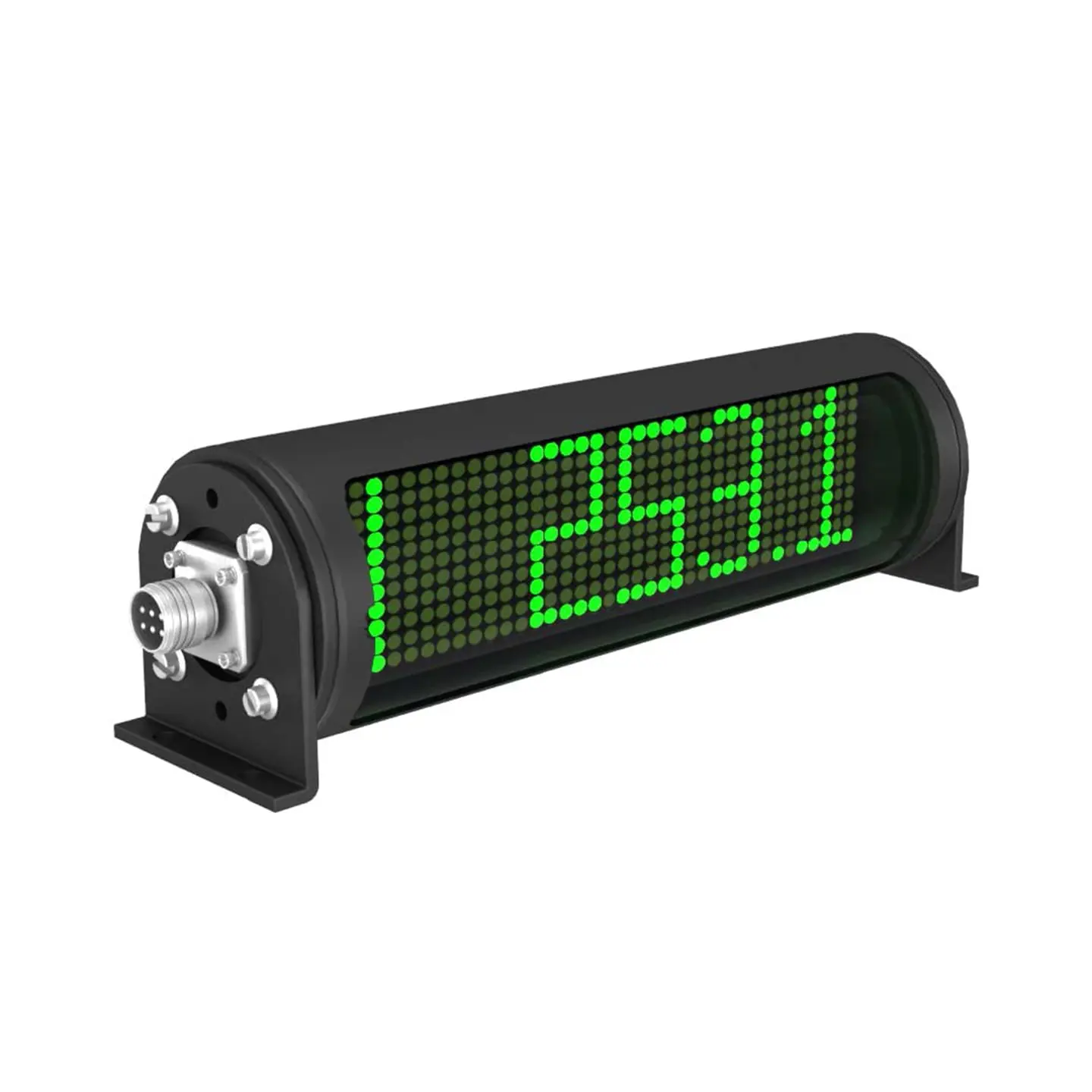

Teledyne CDL MiniTXT LED Matrix Display

Available for rental/ hire from Ashtead Technology - the Teledyne CDL MiniTXT LED Matrix Display.

Add to basket Enquire now Datasheet Download

The Teledyne CDL MiniTXT is a LED matrix display which can read attitude strings from various pieces of equipment and display it either in a field by field manner or by scrolling the text. The unit consists of eight 8x8 LED matrices which are available in Red or Green.

The unit has adjustable brightness to cater for different user situations. The system has optically isolated comms capable (through serial command) of accepting RS422 or RS232 data levels. Input baud rate can also be charged from 2400bps up to 38400bps.

It also features a programmable auto power off which can be set from anything from 1 to 99 minutes. The unit can be activated by shining a light onto the left hand of the display. Successful configuration can be achieved by sending serial commands to the unit either through a terminal program or by using the MiniTXT software supplied.

Option for Red or Green LEDs. Scrolling flashing text displaying multiple supported data input strings RS232 or RS422 Input.

  • Very low cost, small size
  • Up to 3km
  • Versatile specific data link
  • RS-232/485 interface
  • Smart interface
  • Direct command language
