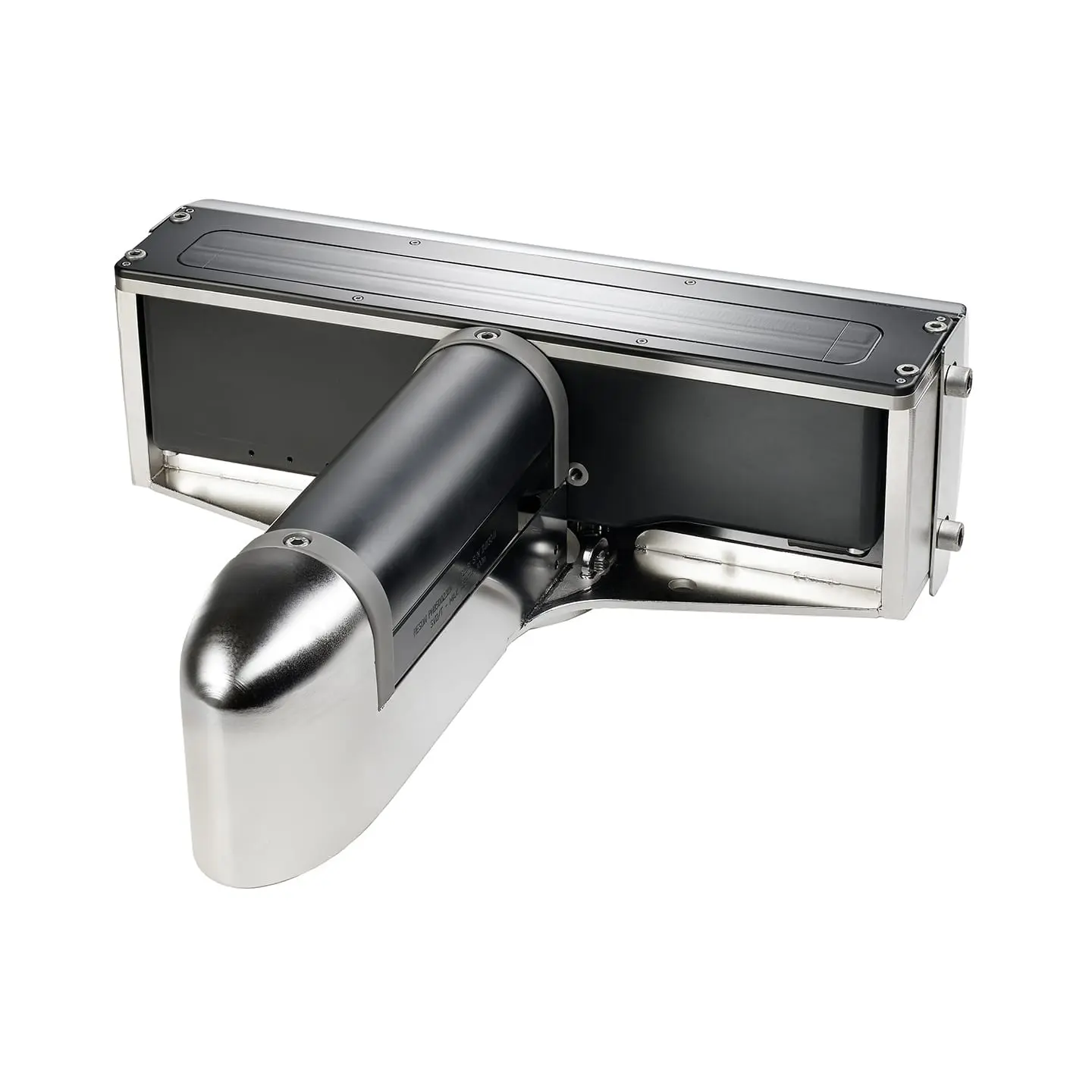

Teledyne RESON SeaBat 7125 Multibeam Echosounder

Available for rental/ hire from Ashtead Technology - the Teledyne RESON SeaBat 7125 Multibeam Echosounder.

Add to basket Enquire now Datasheet Download

The new generation SeaBat 7125 builds on the field experience and feedback from many users around the world and brings unparalleled resolution and installation flexibility. The system is a 6000m depth rated system for either ROV, AUV or vessel mount use. Each of these configurations utilise the same transducer set and provide identical high performance, superlative data quality, features and ease of use over a depth range from 0.5m to 500m. Special emphasis has been put on maximizing operational efficiency and features such as variable swath width and roll stabilisation combined with a high ping rate and excellent data quality.

For deep-water use the ROV version of the SeaBat 7125 has a 6000m depth rating and includes a titanium interface bottle. The system performance and feature set is identical to the other members of the 7125 family thus providing commonality and ease of use.

  • Advanced diagnostics
  • Compliance with IHO SP44Ed5 over entire depth range
  • Dual frequency range, 200 or 400kHz, provides seamless coverage from 0.5 to 500m depth
  • High ping rate allows highspeed operations without compromising data density
  • Real-time roll stabilisation maximizing usable swath
  • Up to 512 beams with equi-distant or equi-angle footprints providing extremely high density
