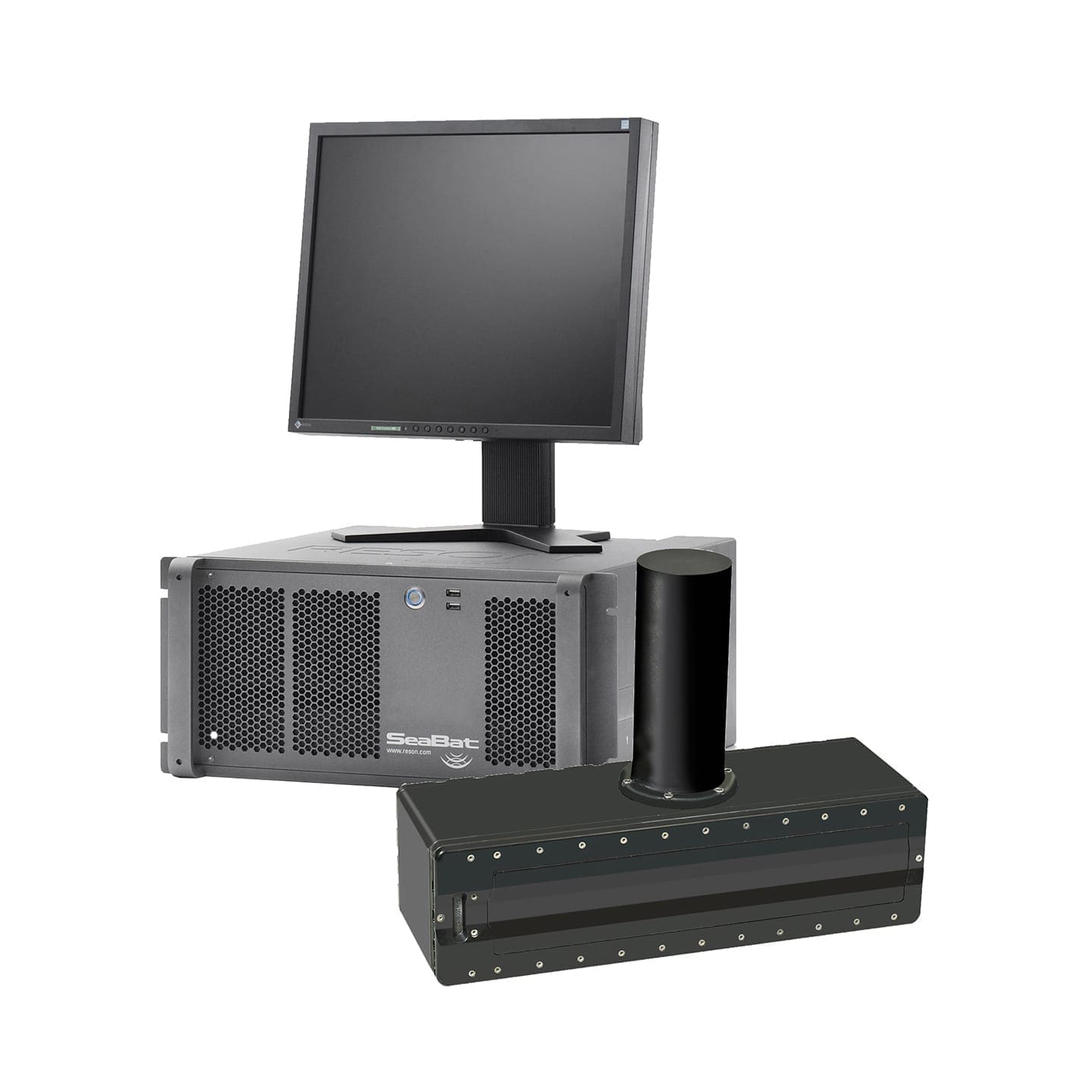

Teledyne RESON SeaBat 8125 Multibeam Echosounder

Available for rental/ hire from Ashtead Technology - the Teledyne RESON SeaBat 8125 Multibeam Echosounder.

Add to basket Enquire now Datasheet Download

The new SeaBat 8125-H combines the 8125’s celebrated sonar head with an advanced data processor. Using 256 dynamically focused receive beams, the SeaBat 8125-H cuts a 120-degree swath across the seafloor. The result? Sea-floor detection is reliable, depth resolution is a crisp 6mm, and you can view backscatter intensity in real time on the sonar display.

The 8125-H’s advanced autopilot makes sure you cut the right swath first time every time, so you can focus on your survey data. And roll stabilisation enables you to complete your survey in inclement weather with no loss of accuracy.

For ROV deployment, you can optimise the 8125-H’s high-speed data uplink with a fibre-optic interface.

  • Focused 0.5° beams
  • 240 beams
  • 2.5cm near field resolution
  • 6mm depth resolution
  • 120° swath
  • Profiling small pipes and cables
  • Conducting high-definition inspections
  • High-resolution surveys
