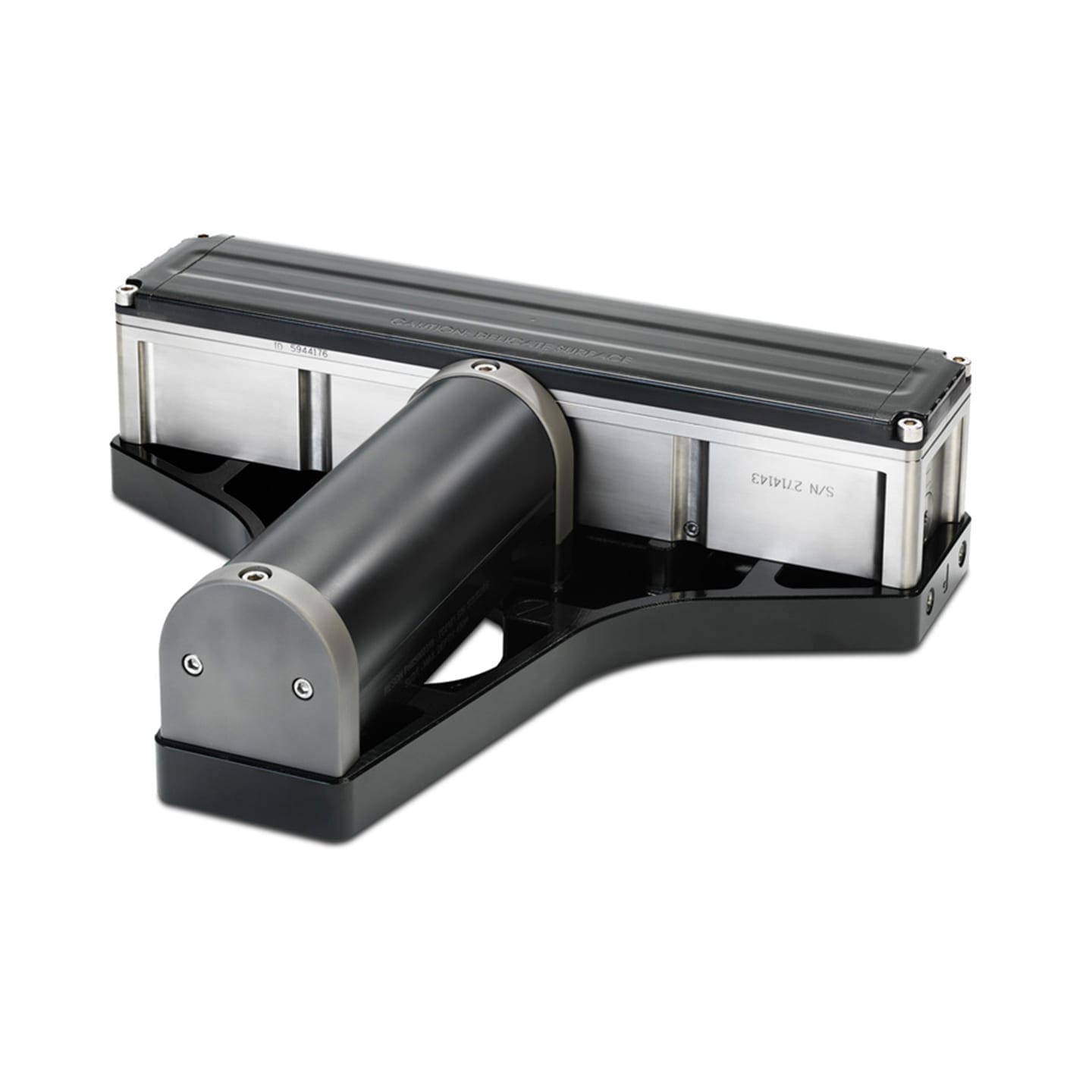

Teledyne RESON SeaBat T50-P Multibeam System

Available for rental/ hire from Ashtead Technology - the Teledyne RESON SeaBat T50-P Multibeam System.

Add to basket Enquire now Datasheet Download

Unprecedented clean and ultra high data quality for faster operational surveys and reduced processing time.

The SeaBat T50-P is the new addition to the leading SeaBat T-series product range, engineered from the ground up to evolve with your business. Combined with the Portable Sonar Processor, the SeaBat T50-P provides unprecedented survey data, providing faster operational surveys and reduced processing time.

The SeaBat T50-P is fully frequency agile from 190 to 420 kHz, allowing for improved swath performance and reduced survey time under difficult conditions.

The SeaBat T50-P is designed for fast mobilization on smaller vessels. The Portable Sonar Processor and sonar head form a compact system, securing minimal interfacing and low space requirements.

  • Reduced cable connections – fast mobilization
  • Single-point, accurate, sensor time-tagging
  • Water-resistant IP54 rated
  • 24VDC and 100-230VAC for maximum flexibility
  • 25m cable to wet-end components
