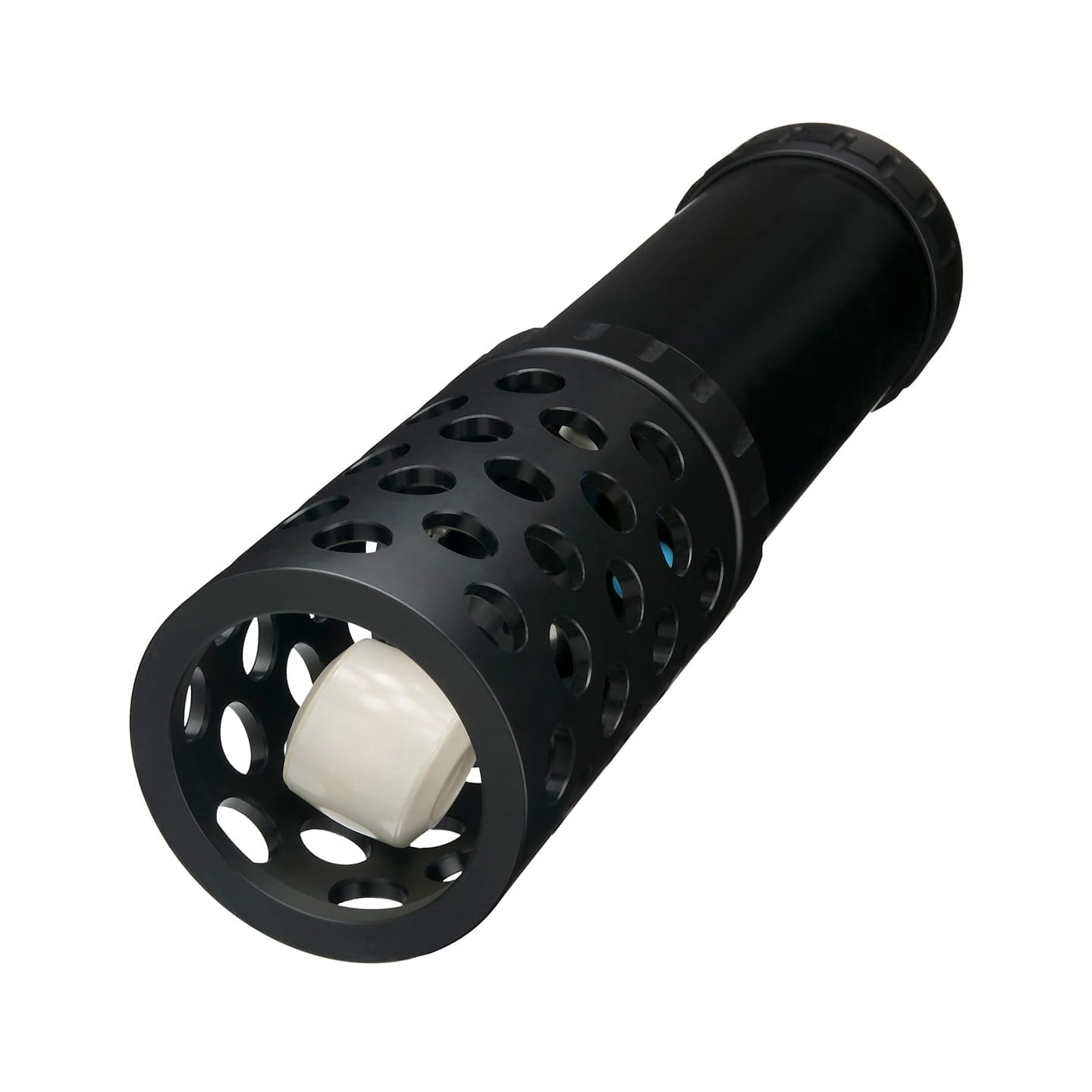

Tritech SeaKing 700 Series

Available for rental/ hire from Ashtead Technology - the Tritech SeaKing 700 Series.

Add to basket Enquire now Datasheet Download

The SeaKing Bathymetric System operates as a stand-alone instrument, or a single subsea node on the SeaKing network and shares the same twisted pair wiring as the SeaKing profiler or SeaKing sonar. Vehicle integration is very simple since only a single pair of conductors are required on the ROV.

The SeaKing Bathymetric system comprises up to four high resolution sensors - a depth sensor, conductivity probe, temperature probe and the PA500 altimeter.

Two standard configurations are available, either as a pressure only package (SeaKing 701) or as a pressure, conductivity and temperature package (SeaKing 704).

The sensors form an integrated package, however, the PA500 altimeter is on a cable and can be mounted separately on the ROV which allows positioning of the individual sensors away from areas of masking or disturbance such as vehicle structure or thruster wash.

For the SeaKing 704 full water column profiling is achieved by dynamically modifying a lookup table which contains all measured parameters versus depth. This table may be stored by the surveyors and re-loaded as required.

  • Configurable design
  • Integrated compact unit
  • Seamlessly combine with SeaKing network
  • Real-time monitoring of conductivity
  • Real-time monitoring of temperature
  • 700m to 4000m depth ratings available
  • Robust and proven design
  • Reliable and accurate sensors
  • Pipeline, site and route surveys
  • Echosounder surveys
