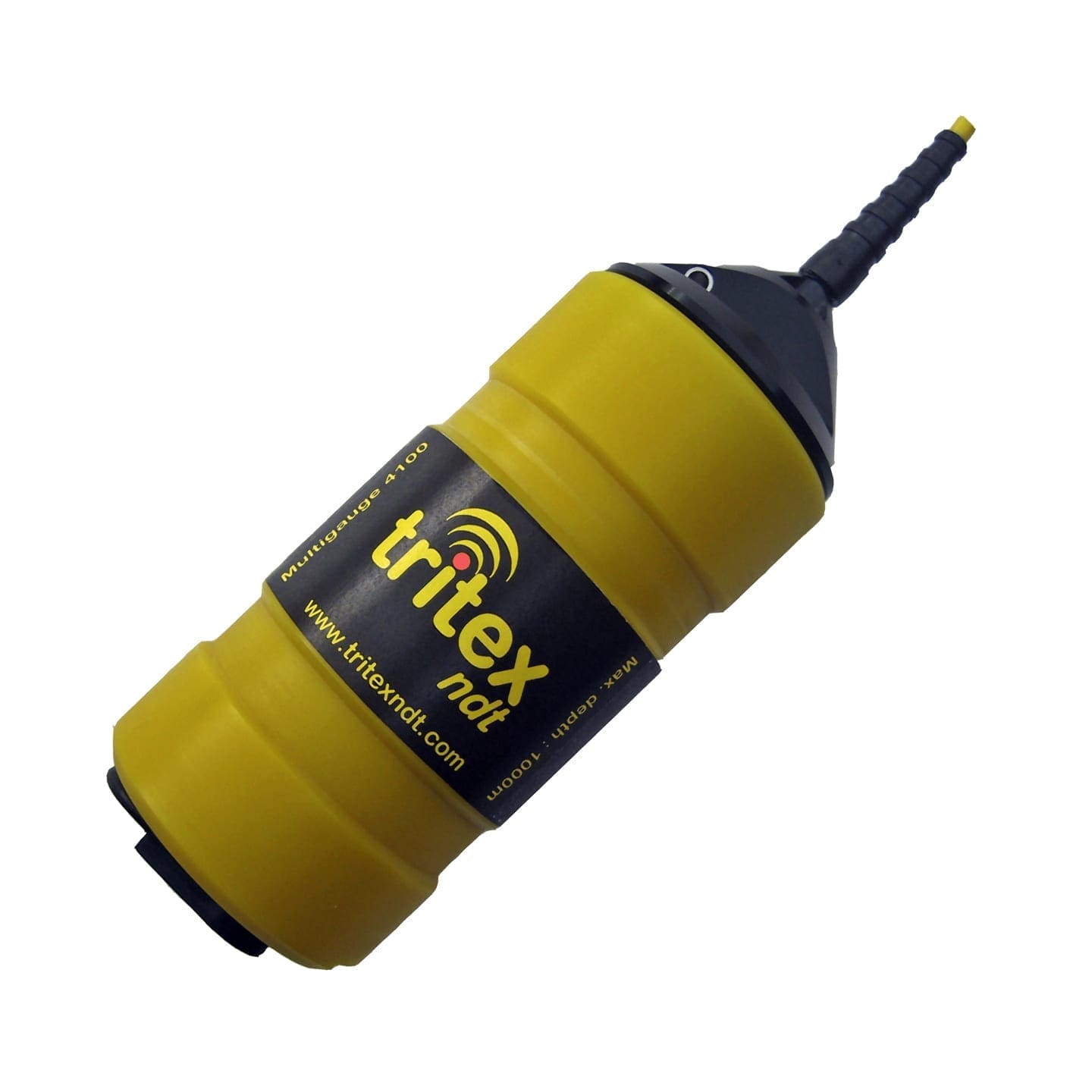

Tritex Multigauge 4100

Available for rental/ hire from Ashtead Technology - the Tritex Multigauge 4100.

Add to basket Enquire now Datasheet Download

The Multigauge 4100 underwater thickness gauges are simple, robust ultrasonic thickness gauges designed to be mounted onto all types of work class ROV’s. The Multigauge 4100 has a depth rating of 1000m has been designed and built to survive extremely harsh conditions that exist in the offshore and underwater industries worldwide.

The gauge uses multiple echo which means measurements can be easily taken without the need to remove coatings, up to 6mm thick, and the user selectable RS422 / RS232 output makes connection to most ROV’s simple. The gauge link to Tritex NDT’s dedicated software called Communicator.

The ROV underwater thickness gauge is equipped with Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge for enhanced performance and Automatic Measurement Verification System (AMVS) to ensure only true measurements are displayed, even on the most heavily corroded metals.

A dedicated probe holder ensures correct presentation of the probe to the surface being measured.

  • Compatible with most ROV’s
  • Depth rating to 1000 m (3280’)
  • User selectable RS422 or RS232 output
  • Intelligent Probe Recognition (IPR)
  • Automatic Measurement Verification (AMVS)
  • Ignores coatings up to 6mm thick using multiple echo and 20 mm with Coating Plus+ selected
  • Rugged, durable and robust
  • No zeroing required
  • Easy to use Datalogging software
  • Dedicated probe holder for correct presentation of the probe on flat and curved surfaces
