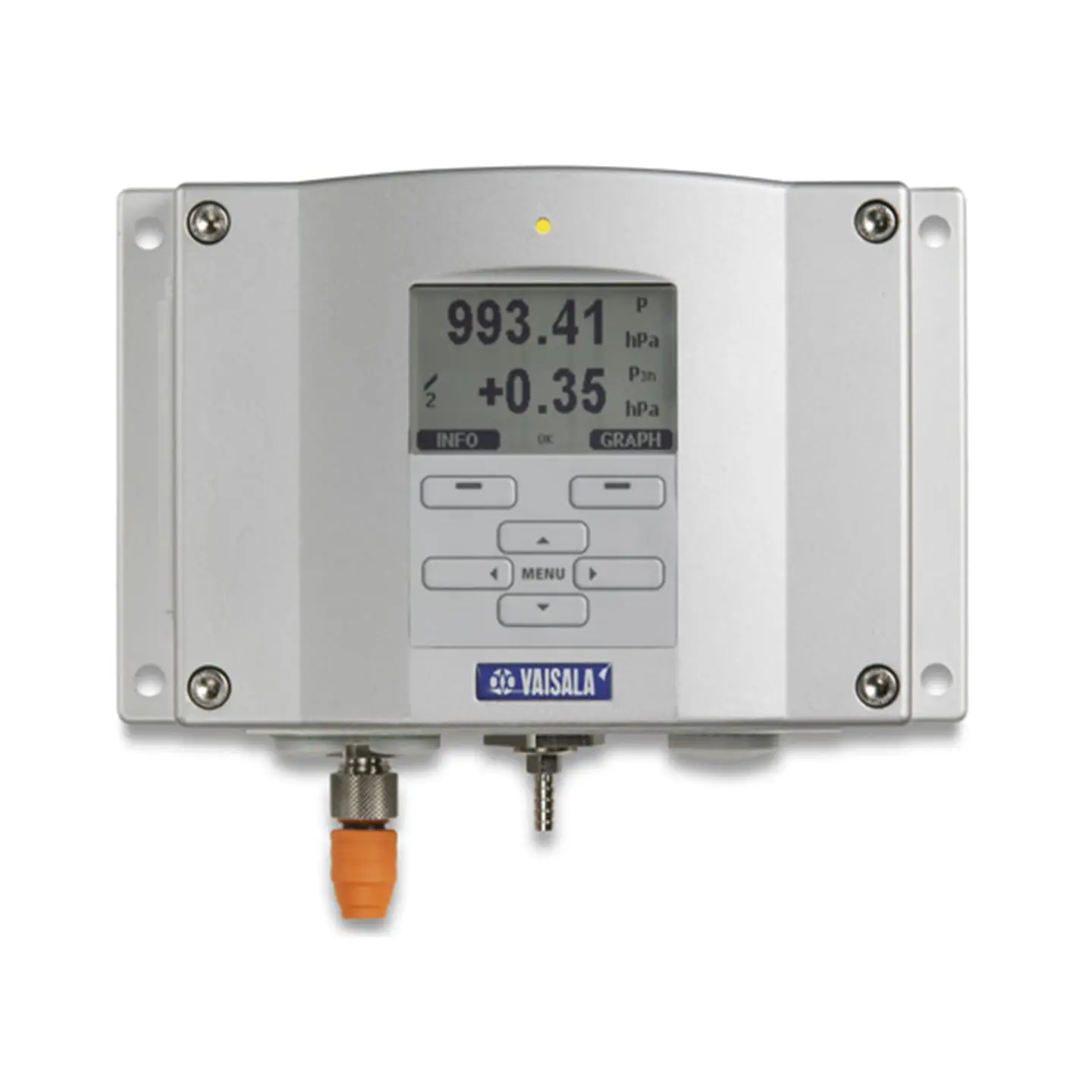

Vaisala Digital Barometer PTB330

Available for rental/ hire from Ashtead Technology - the Vaisala Digital Barometer PTB330.

Add to basket Enquire now Datasheet Download

Vaisala BAROCAP® Digital Barometer PTB330 is a new generation barometer, designed for a wide range of high-end atmospheric pressure measurement. The pressure measurement of the PTB330 is based on the Vaisala in-house, silicon capacitive, absolute pressure sensor- the Vaisala BAROCAP® Sensor. It provides high measurement accuracy and excellent long-term stability.

The PTB330 series is highly accurate. The Class A barometers for the most demanding applications are fine-tuned and calibrated against a high-precision pressure calibrator. Class B barometers are adjusted and calibrated using electronic working standard. All the PTB330 barometers come with a NIST traceable, factory calibration certifcate.

According to customers’ choice, the PTB330 can incorporate one, two or three BAROCAP® sensors. When two or three sensors are used, the barometer continuously compares the readings of the pressure sensors against one another and provides information on whether these are within the set internal difference criteria. This unique feature provides redundancy in pressure measurement. Thus, users also get a stable and reliable pressure reading at all times as well as a pre-indication of when to service or recalibrate the barometer.

  • 1 - 3 barometer modules
  • Graphical display showing the measurement trends of the quantities chosen by the user
  • User friendly, multilingual display
  • Calculated output quantities, QFE and QNH available
  • Barometer mounting accessories for multiple installation purposes
  • Service port for MI70 Link Interface Software or PC
  • Four module slots
  • Optional modules: power supply module, RS-485 module, analog output module and relay module
  • Optional USB cable
  • IP 65 housing
  • Screw terminal, optional M12 connector or D-9 connector
  • Accurate measurement
  • Excellent long-term stability
  • Meteorology
  • Aviation
  • Laboratories
  • Demanding industrial applications
