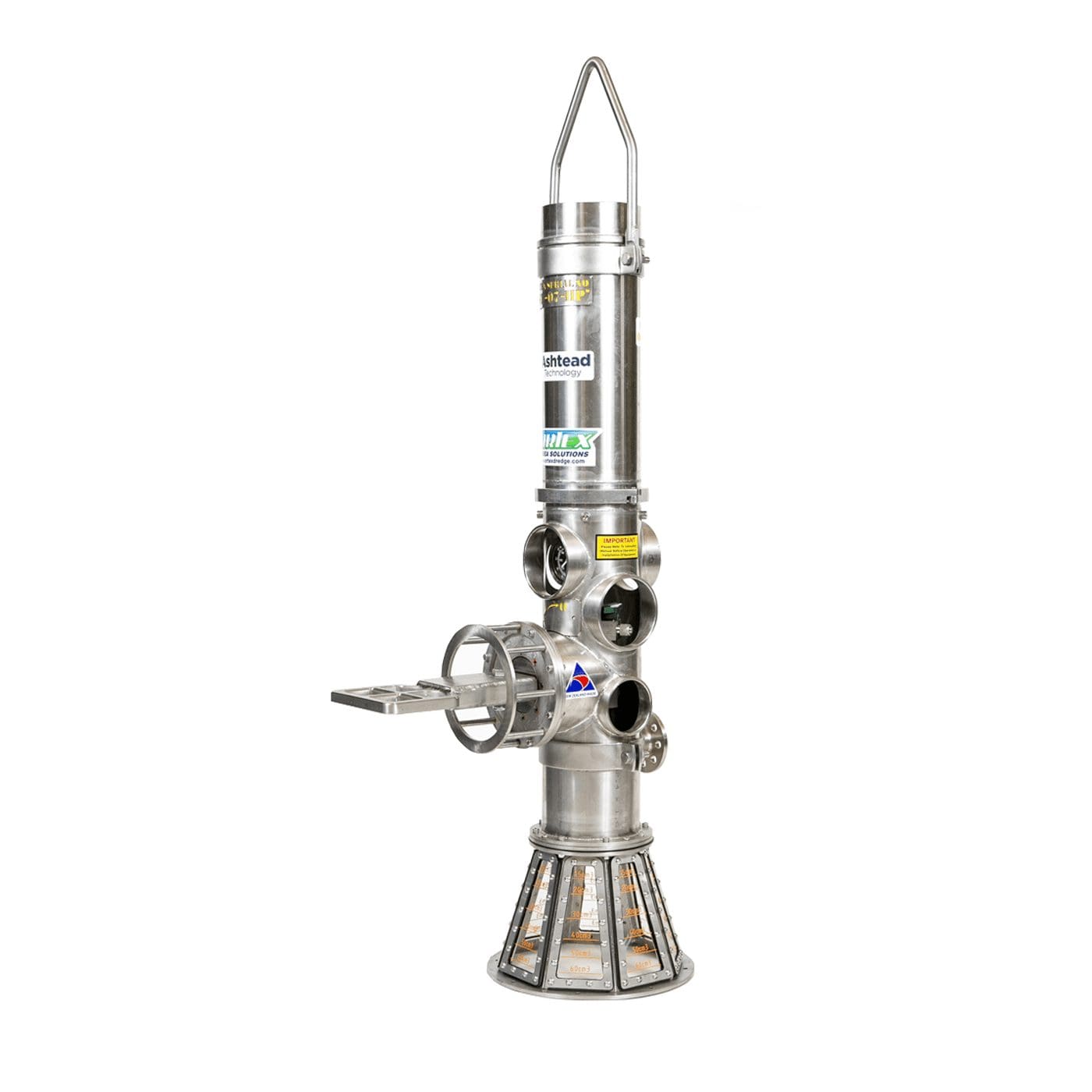

Vortex Gas & Liquid Sampler

Available for rental, hire and purchase from Ashtead Technology - the Vortex Gas & Liquid Sampler.

Add to basket Enquire now Datasheet Download

The vortex gas & liquid sampling tool is designed to capture and store gas or liquids escaping underwater for the purpose of recovery to the surface for analysis. The tool is designed to be deployed from the surface with zero pressure in the containment bottles. Sample filling relies on pressure differential between the isolated sea level pressure inside the bottles and the surrounding ambient sea water pressure.

All the components are housed in one anti-impact stainless steel housing, allowing this tool to be rough handled and transited in work baskets.

Personnel do not have to be directly exposed to pressurised components during recovery. Very high burst pressure bottles allow higher containment pressure in smaller bottles to reduce foot print of tool.

The tool features primary and secondary product isolation valves - plus a back up non return valve to further prevent product escaping after sample has been taken.

  • Robust stainless steel housing
  • Small high pressure bottles
  • 4000m / 13,123ft depth rated
  • Can be deployed in work basket
  • ROV or diver operable
  • Primary & secondary product isolation valves
  • Bleed off valve
  • Capture, contain and recover liquid
  • Capture, contain and recover gas
