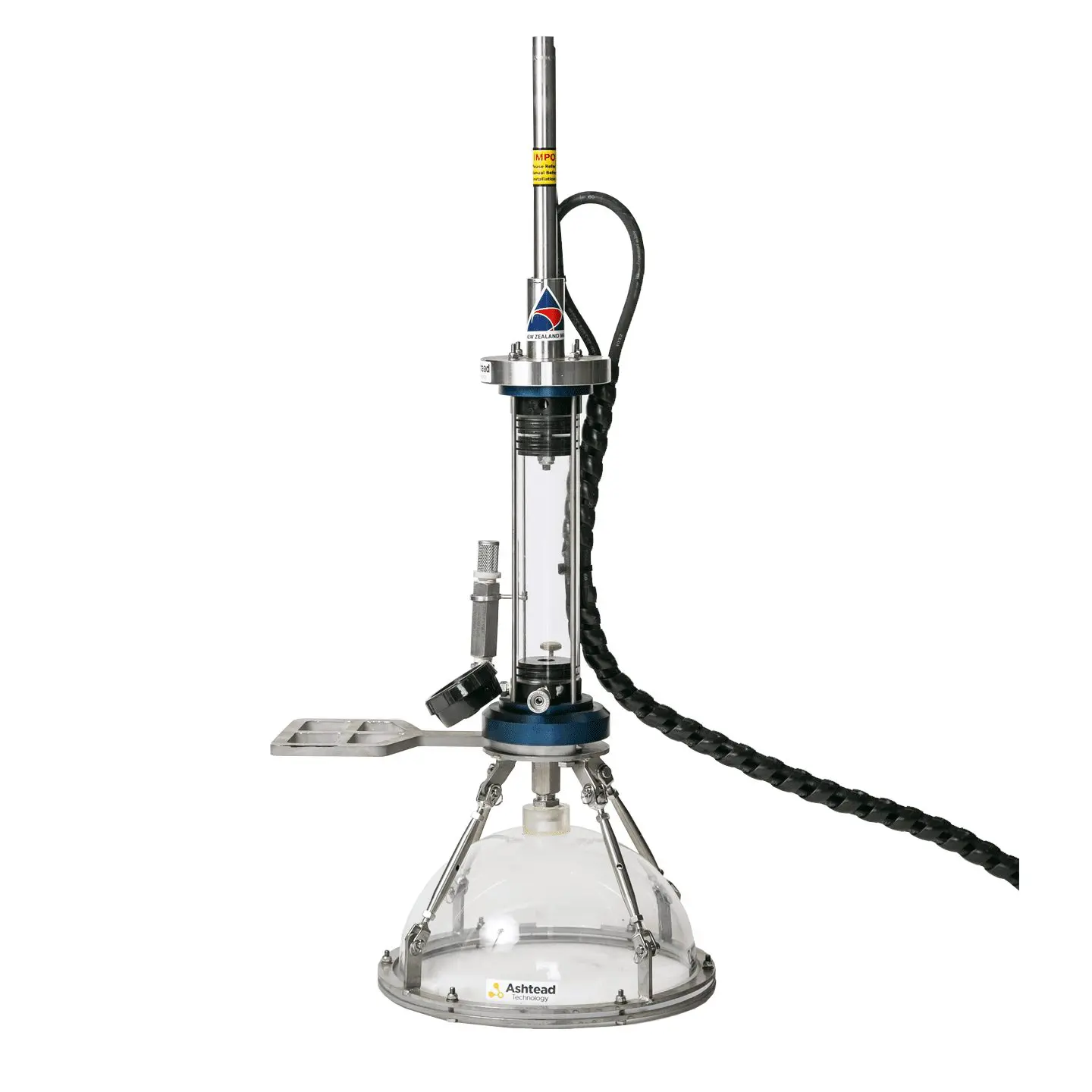

Vortex Hydraulic Gas & Liquid Sampler

Available for rental, hire and purchase from Ashtead Technology - the Vortex Hydraulic Gas & Liquid Sampler.

Add to basket Enquire now Datasheet Download

The vortex hydraulic gas sampler is designed to capture and recover gas and liquid samples in a subsea environment. These samples are extracted in a low pressure state of no more than 14psi (0.96bar) by means of a hydraulic mechanical operated syringe which ingests then purges sample into a sample bottle. This tool is designed to be deployed from the surface with the syringe bled of air immediately upon entering the water.

Sample filling relies on the suck and blow pumping motion created by the syringe and associated relief valves.

Samples taken can be discharged or cycled out of the syringe whilst under water if necessary.

Discharging syringe into sample bottle typically captures 0.268l fresh water by volume with exhaust relief set at 12psi. Discharging syringe into sample bottle typically captures 0.523l of fresh air by volume with exhaust relief set at 12psi.

  • 3000m / 9842ft depth rated
  • Mount to any ROV
  • Able to discharge sample subsea
  • Capture, contain and recover liquid
  • Capture, contain and recover gas
