Wachs Subsea Drill

Available for rental/hire from Ashtead Technology - the Wachs Subsea Drill

Add to basket Enquire now Datasheet Download

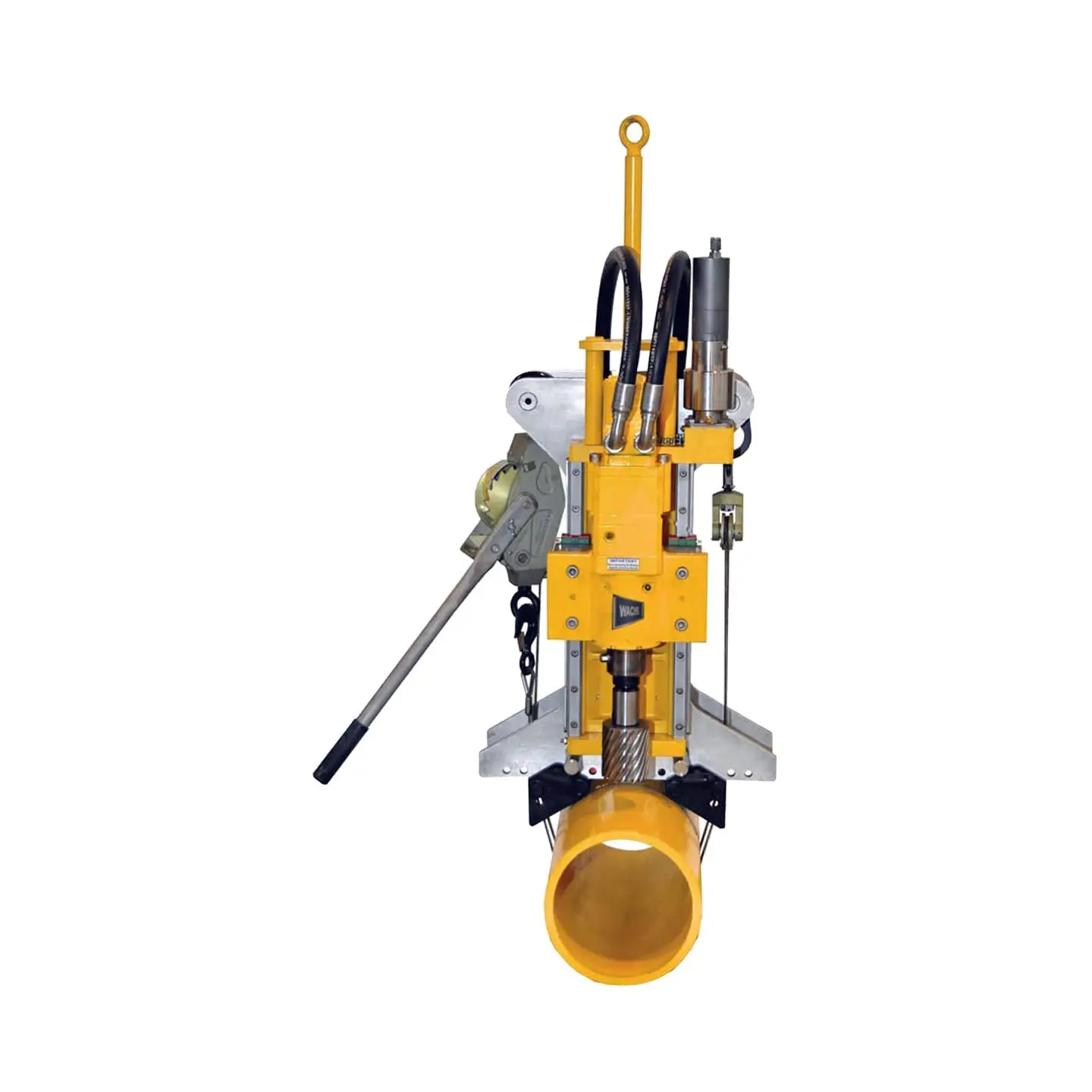

The Wachs subsea drill is the perfect drill for subsea and decommissioning projects, the subsea drill is designed to meet the unexpected needs encountered in the field. Built of corrosion resistant materials and sealed for use in 350 feet of seawater(150psi), this auto-feed, variable speed tool can drill up to 5” diameter holes.

  • 5” maximum hole diameter
  • 11.6” stroke
  • Variable Speed hydraulic drive(250 max rpm)
  • Max 15gpm @ 1500psi (spindle drive)
  • 5gpm @ 1500psi (auto-feed)
  • Hydraulic auto-feed (0-.056”/Min)
  • Optional manual feed
  • Versatile mounting configurations
  • Rigging holes
  • Inspection / investigation holes
  • Grouting / grouting release holes (when using shears)
  • Pinning holes for pulling multi-string conductor
