Wachs Subsea Low Clearance Split Frame

Available for rental/hire from Ashtead Technology - the Wachs Subsea Low Clearance Split Frame

Add to basket Enquire now Datasheet Download

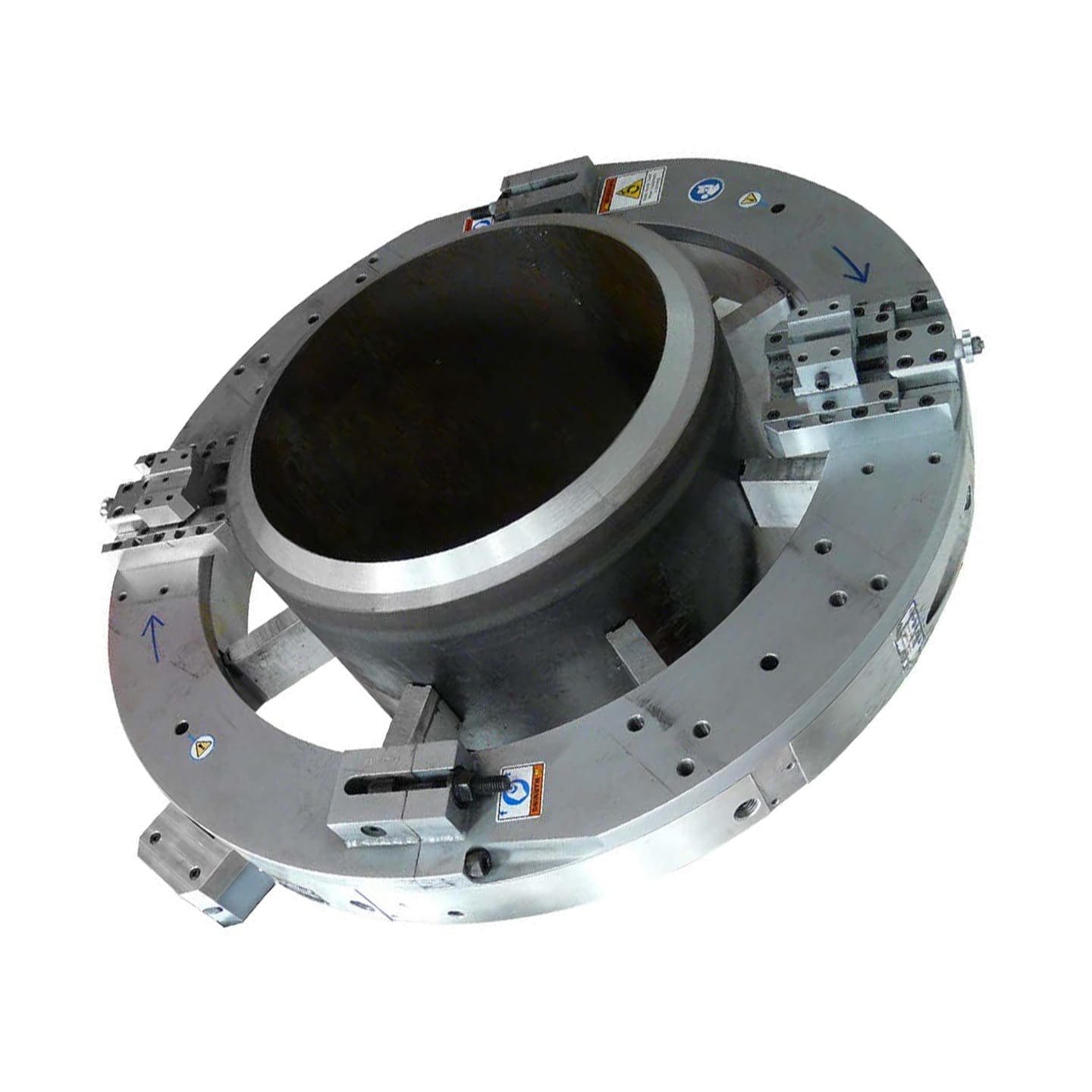

E.H. Wachs LCSF Low Clearance Split Frame is the world’s most versatile and comprehensive line of lightweight split frame, clamshell style portable machine tools on the market today. The LCSF is designed to cut, bevel, single point, counterbore and face flanges on pipe and tubing ranging from 2 to 48 inches O.D. (DN50-1200), on most wall thicknesses and materials.

  • Machine quickly splits to mount around outside diameter of in-line pipe
  • Parts and accessories interchangeable between various sizes
  • Cuts and bevels pipe of any wall thickness. Materials include: carbon steel and it’s alloys: Hastelloy™ and Inconel™ as well as other exotic materials
  • Self-squaring pipe clamping system with integrated, close tolerance legs and wide feet for exceptional stability
  • Feed system offers low clearance operation with precise feed, for controlled cutting
  • Low friction adjustable bearing system provides maximum stability and extended machine life
  • Fully enclosed bearing and drive gear system for operational safety
  • Pipe cutting
  • Pipe end bevelling
  • Pipe end prepping
