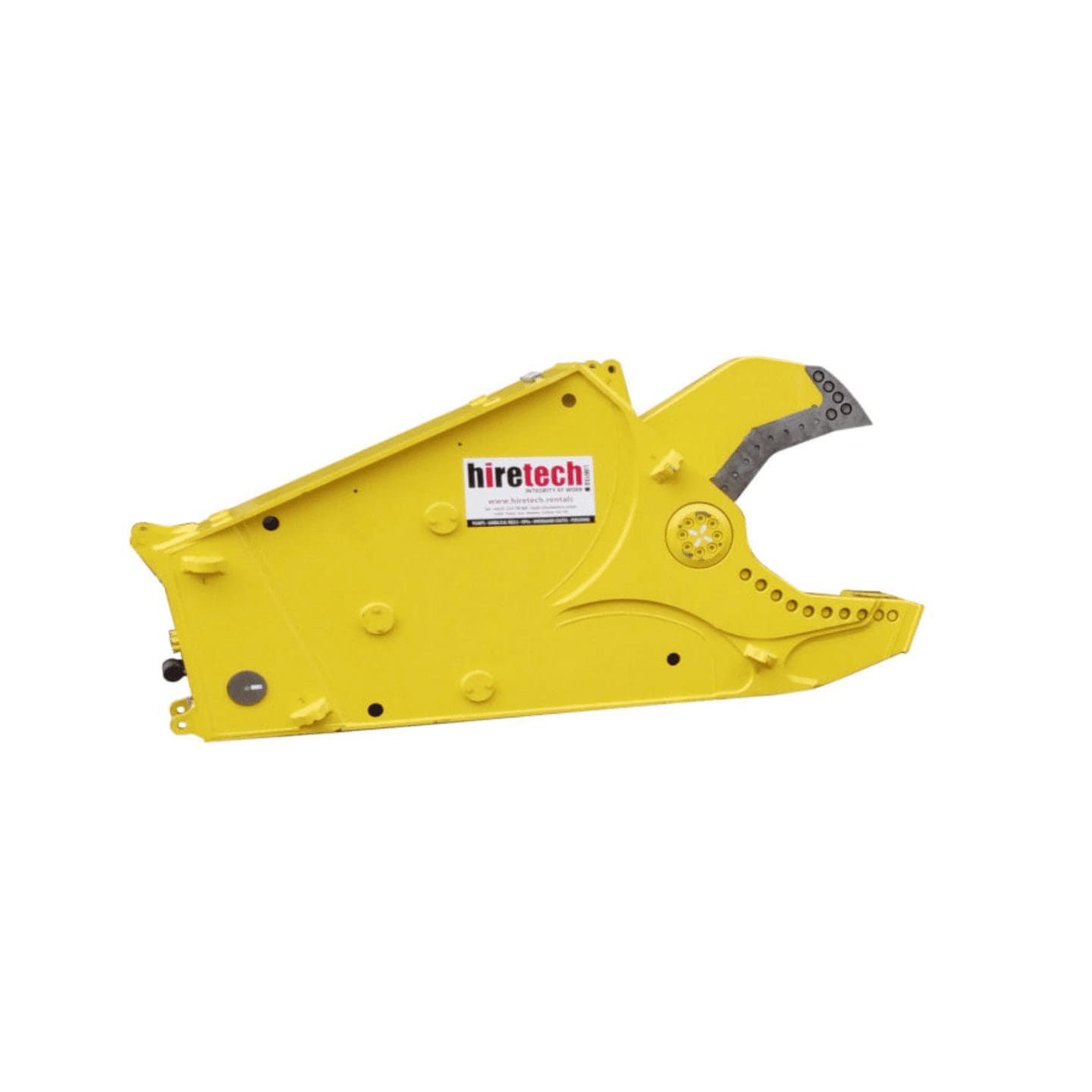

5 Tonne Subsea Shears, 28” Jaw Opening

5 Tonne Subsea Shears, 28” Jaw Opening

5 Tonne Subsea Shears, 28” Jaw Opening

Ashtead Technology has available Shears with subsea, back deck and onshore cutting capabilities.

The Shears have been designed and specified for onshore, shallow, and deep-water operations and provide a safe, high performance solution when cutting a wide variety of materials.

They can be deployed subsea in several orientations, along with deck and yard operations, from a transportation skid.

The Shears can be powered and controlled from the surface, or from an ROV with supplied hot stabs and intensifiers.

Ashtead Technology can also provide Powered Umbilical Reels/Downlines, HPUs, Recovery Grab, Subsea Baskets and Control Stand to provide a full rental package.

Shear force (throat): 948t

Max jaw opening & depth: 28″/711 mm

Max cutting capacity (pipe): Ø 22″ / 558 mm

Flow / pressure: 140-400 lpm and 350 bar

Mass in air: 4450kg

Length x width x height: 3134 x 652 x 1539 mm

Depth rating: 3000 msw – 10,000 ft
