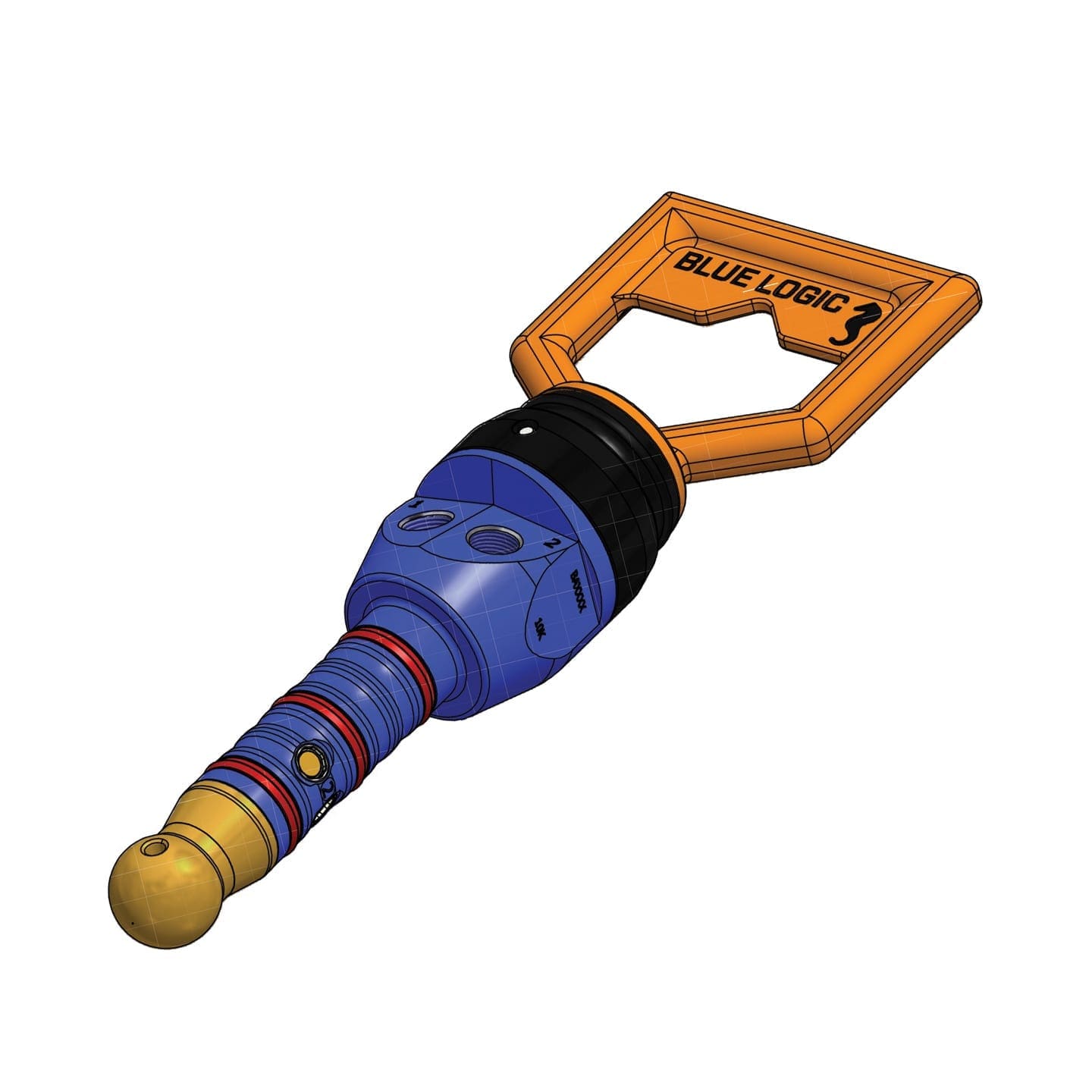

The Blue Logic 17D dual port conforms to ISO 13628-8, but has larger internal fluid paths and integral sealing valves. The male has four check valves set inside the male body therefore will not dump the ROV compensator pressure. These minimise ROV oil leakage and water ingress, and prevent underpressure in the hoses, etc.
The female receptacle has two screw-in cartridges that do the same, but are normally 0.2bar in/out. The female can be mounted by U-bolts around the body or flange; mounted by four bolts using a top-mounting interface plate.
