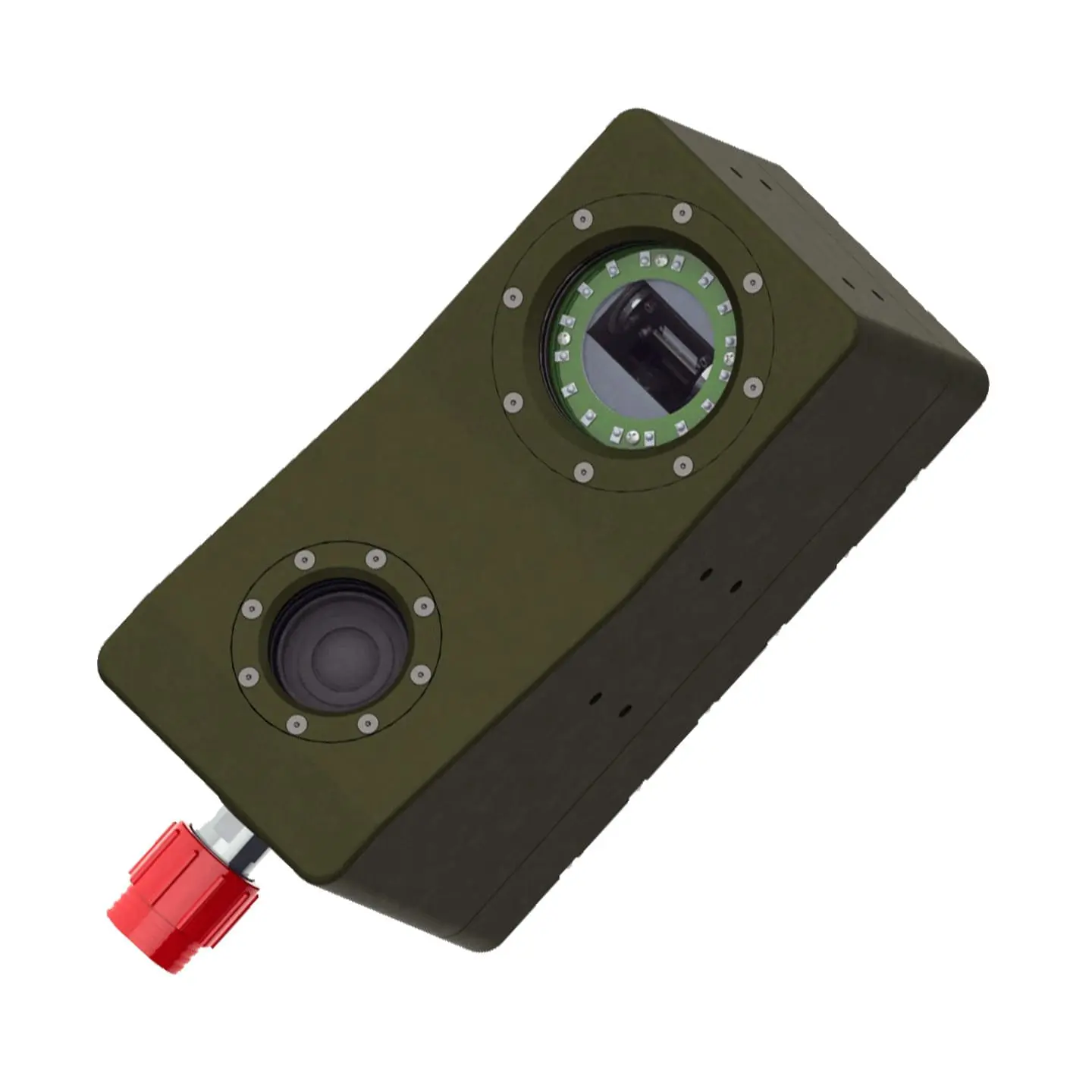

The M500UW underwater laser scanner is the sister scanner to the Newton M210UW with the same extremely accurate specifications at deeper depths. The M500UW operates by optical triangulation. The projected laser line sweeps the target surface and the ultra high-resolution camera, centered on the target, captures any deformation of the line and sends the information to the control console where the Newton-developed algorithms create and record a point cloud, enabling precise, post-session dimensioning using industry standard three-dimensional software. Although specifically designed for use in fresh or salt water, these versatile scanners can also operate in air.

• Live camera view
• No moving parts
• Designed for easy ROV/AUV mounting
• Scan area of 880mm by 650mm at 1m distance
• CAD model resolution
• All digital data
• Aluminum construction
• Saphire optical barrier

• Subsea metrology
